Placa-mãe MACHINIST X99 PR9 de alto desempenho, projetada para processadores Xeon E5 V3 e V4 com socket LGA 2011-3. Oferece suporte a memória DDR4 quad-channel para máximo throughput de dados, ideal para workstations e servidores. Inclui slot M.2 com suporte a PCI-E e SATA, permitindo integração de SSDs de última geração. Arquitetura robusta para aplicações profissionais que demandam estabilidade e velocidade.

SPECIFICATIONS

Application: Desktop

Back I/O Ports: 1x RJ45

Battery Included: No

Brand Name: MACHINIST

Chipset: Intel B85

Chipset Manufacturer: Intel

Form Factor: Micro-ATX

Max LAN Speed: 1000Mbps

Maximum Ram Capacity: 128 GB

Memory channel: Double

Number Of Memory Slots: 4

Number of M.2: 1

Number of PCI: 0

Number of PCIe x 1: 1

Number of PCIe x 16: 1

Number of PCIe x 8: 0

Onboard Connectors & Header: 24-pin Main Power Connector,CPU Fan Connector(s),4-pin +12V Power Connector

Onboard LAN: 1x RJ45

PCI - E standards: PCI-E 3.0

Package: Yes

Ports: USB 3.0

Processor compatibility: Intel Xeon

Quality Certification: ce,ROHS

RAID Supported: No

Socket Type: LGA 2011-3

Storage Interface Type: M.2 (NVMe),M.2 (SATA)

Support Memory Type: DDR4

Support USB Type: USB 2.0,USB 3.0

Supports M.2 SSD: 2280

Usage Scenario: Gaming,Audio & Video,Office,Video Production,others

With CPU: No

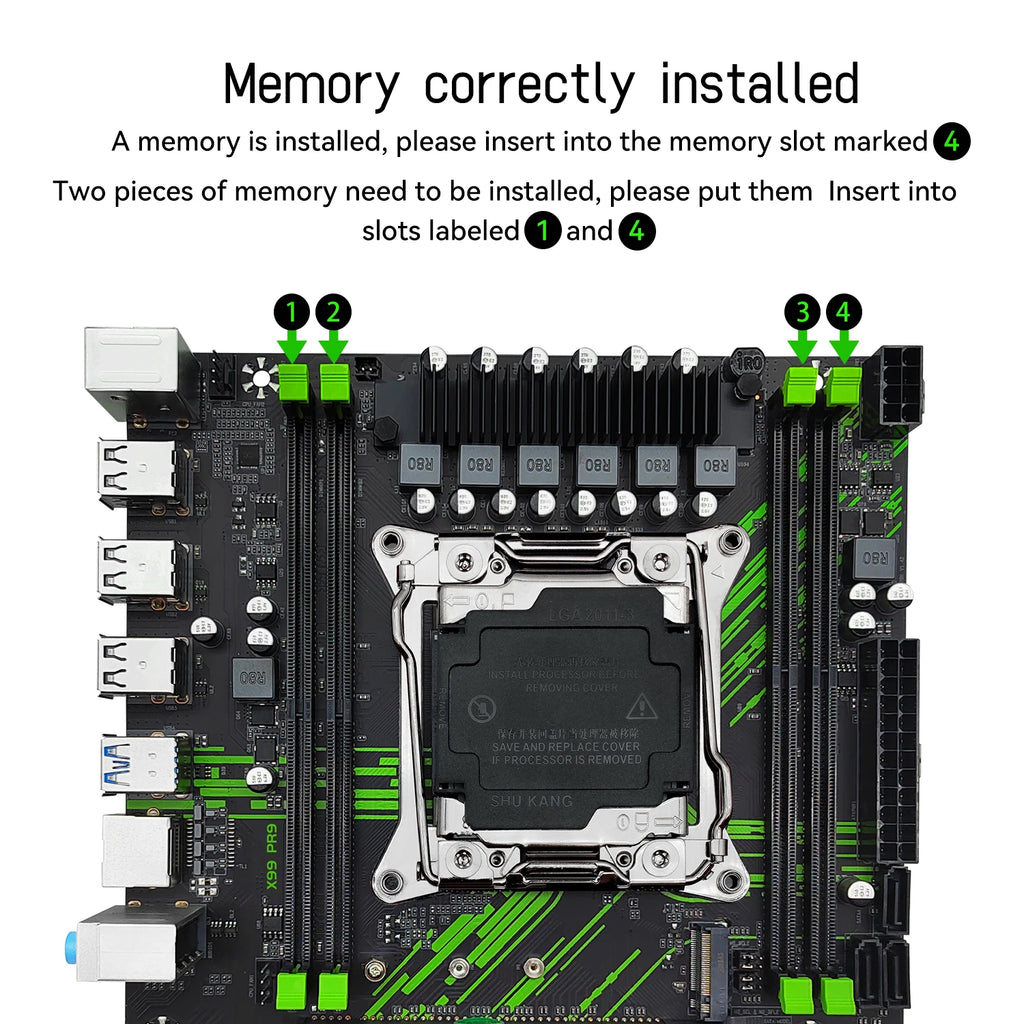

> >Attention should be paid to the memory slots on this motherboard. The memory slots (#2/#3) in the middle of the motherboard cannot work independently. A single RAM needs to be installed in slot #1. Two RAM slots need to be prioritized for installation in slot #1 and slot #4."

> > Motherboard information:

Brand :MACHINIST.

Motherboard model :X99 PR9.

Processor: Supports LGA 2011-3 series

Chipset :B85/Q87/C226 Chipset.

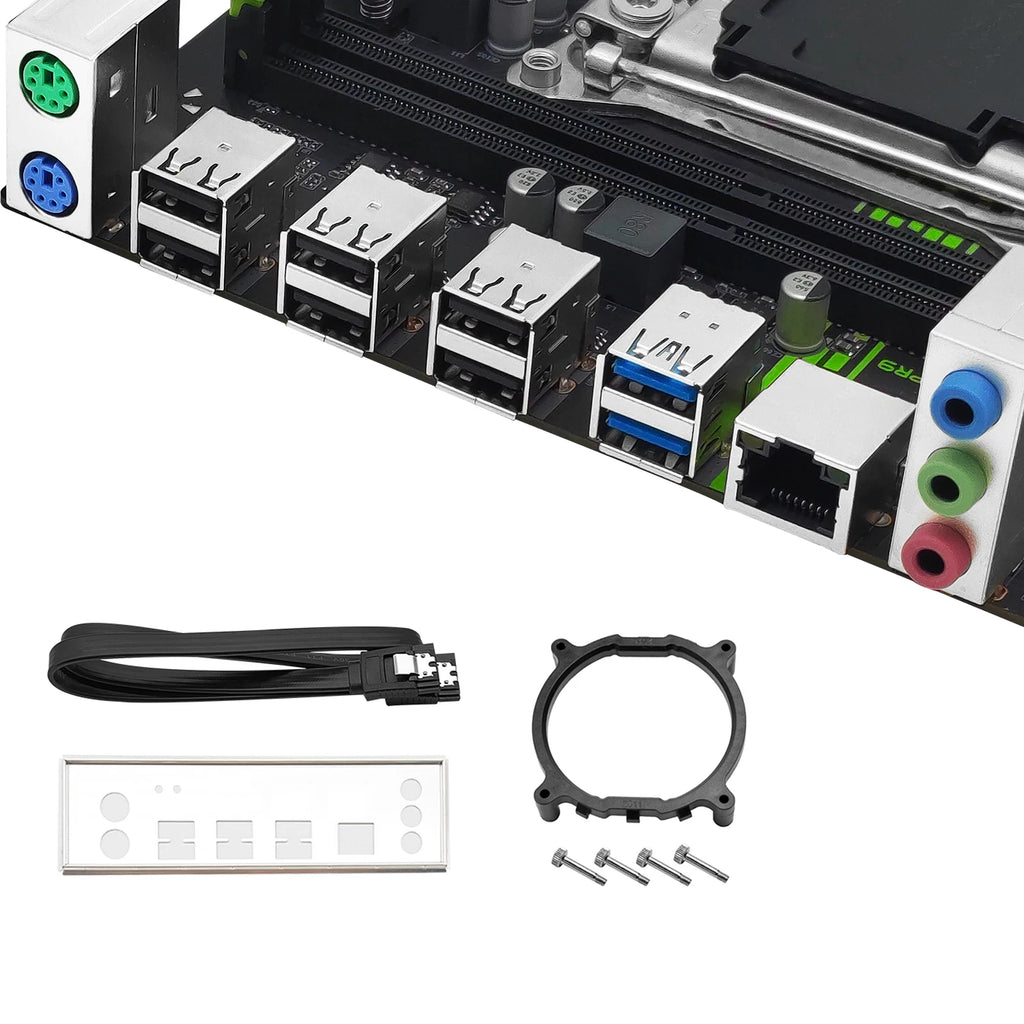

(Complimentary accessories: I/O shield *1, SATA cable *1, lga 2011 heat sink bracket *1.

All packages are manually tested before sending. If any gifts are missing, it cannot be used as a reason for a refund. Please understand!"

> > Memory:

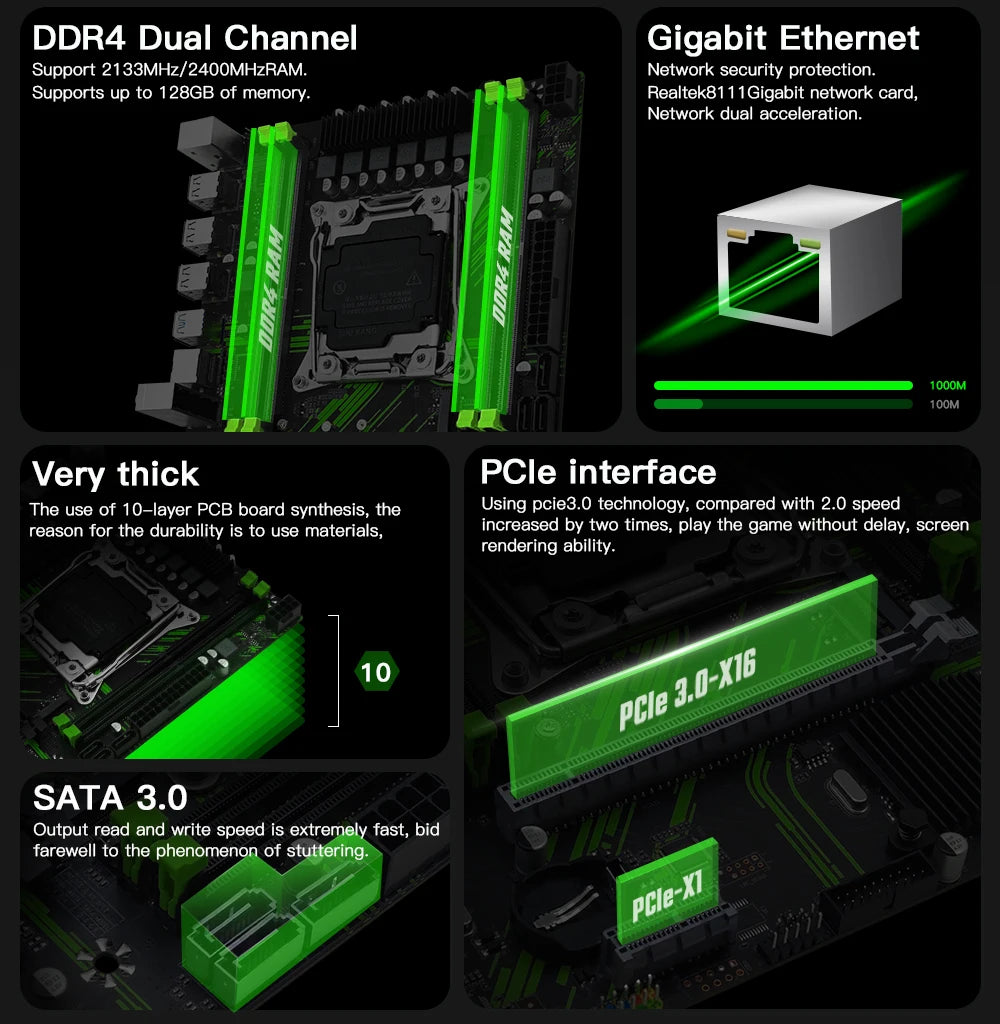

Technology: Dual-channel DDR4. Supports 2133/2400/2666/3000/3200 MHZ.

The maximum capacity is 128GB (32G × 4).

Memory slot :4 * 288-pin DDR4.

Note #1: Please use international brands such as Samsung, Kingston, Sandisk, and Micron. There are incompatibility issues with other brands.

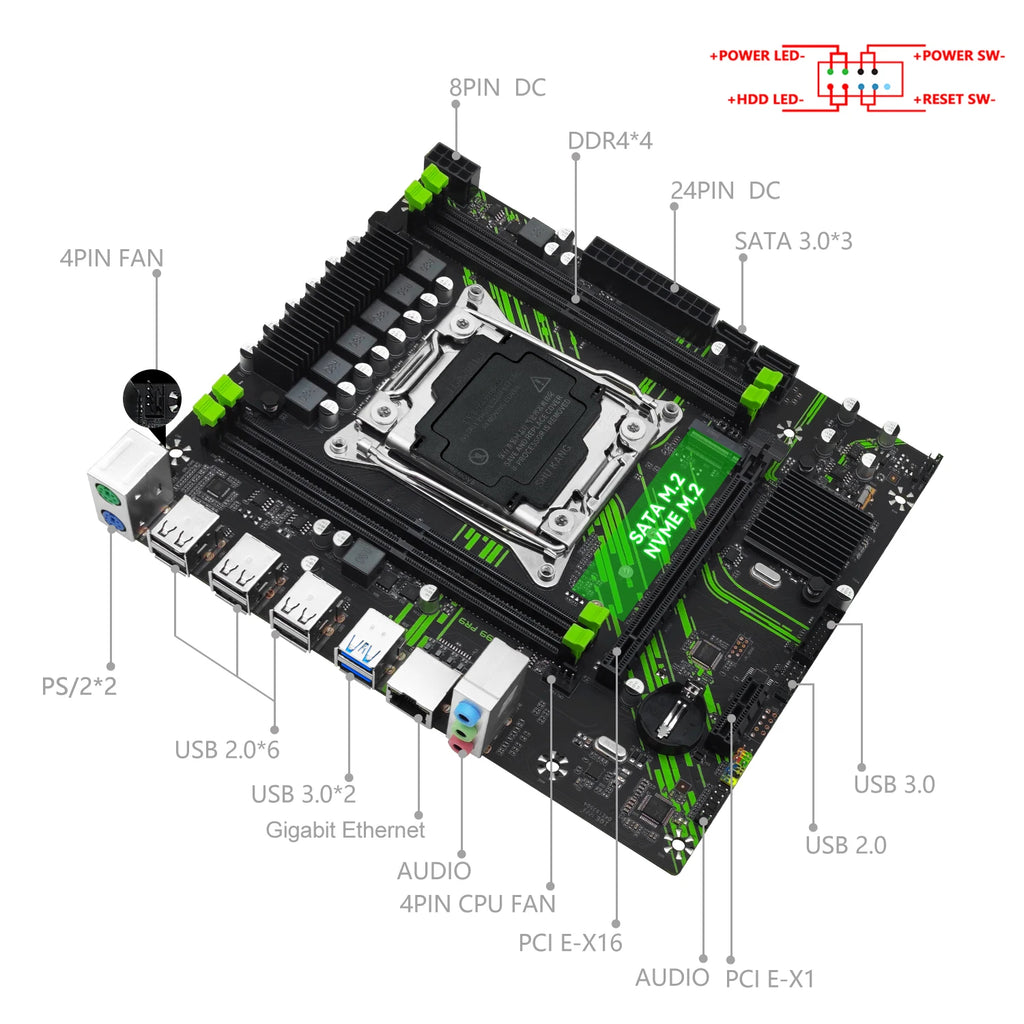

>> Post I/O:

PS/2: 1 KB interface + 1 MS interface.

USB interface :6 USB2.0 ports; Two USB3.0 ports.

Ethernet: 1 Gigabit network card.

Audio :1 (Mic-in, Line-out, Line-in).

>> Others:

SATA interfaces :2 (SATA2.0), 1 (SATA3.0).

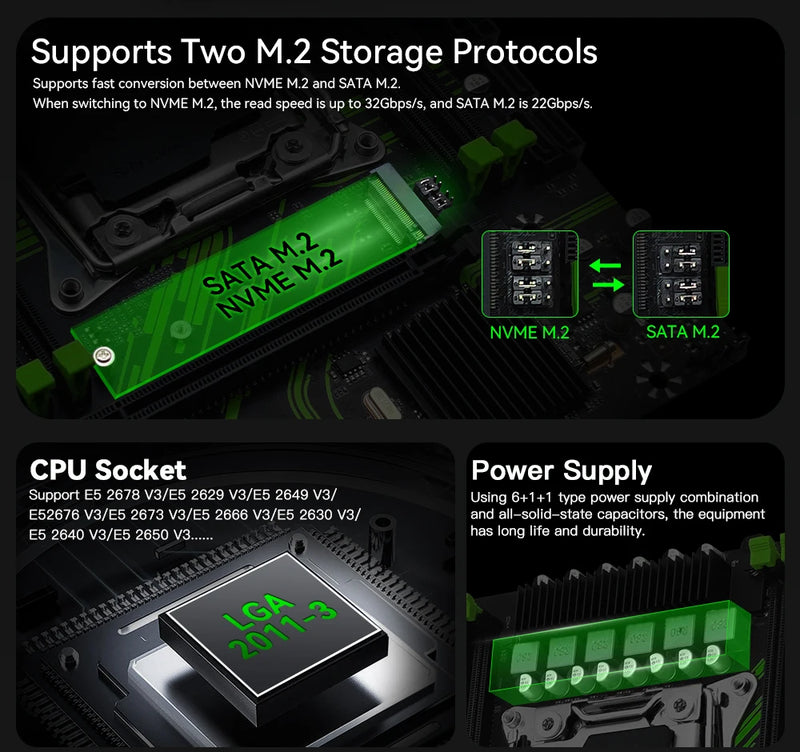

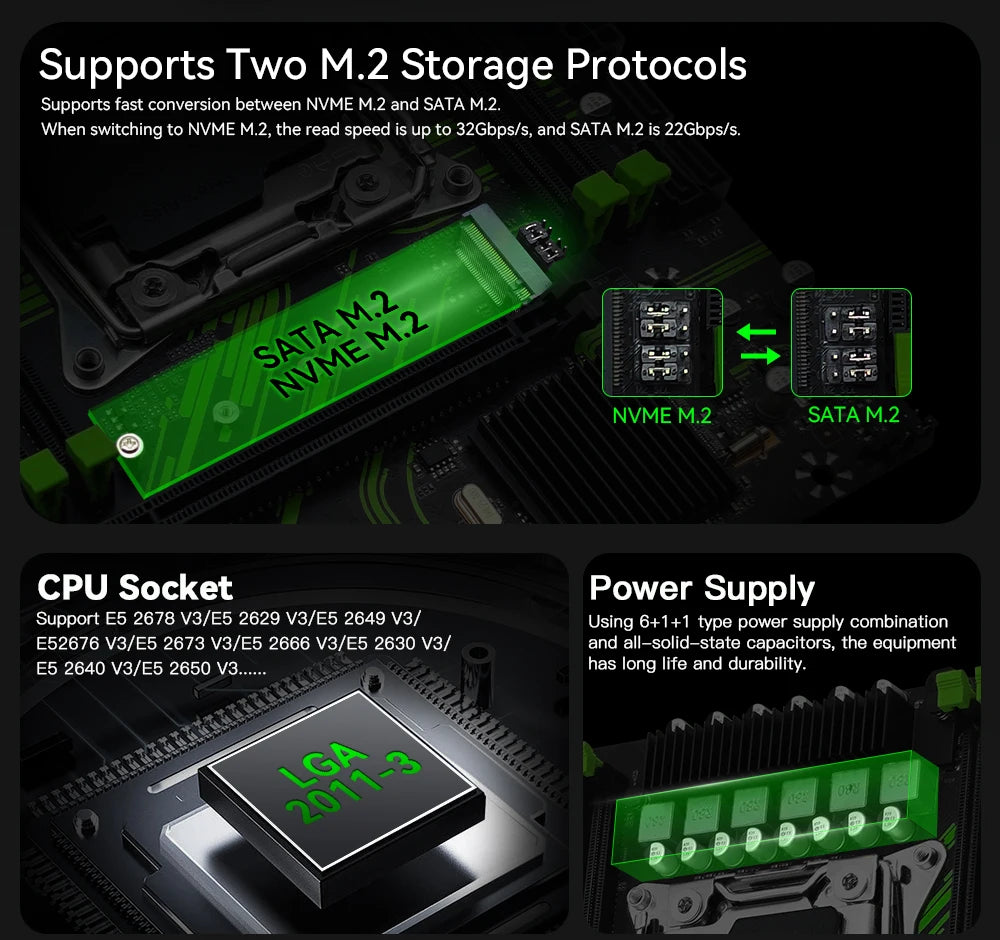

M.2:1 (nvme/sata).

PCIe: 1 PCIe 16x, 1 PCIe 1x.

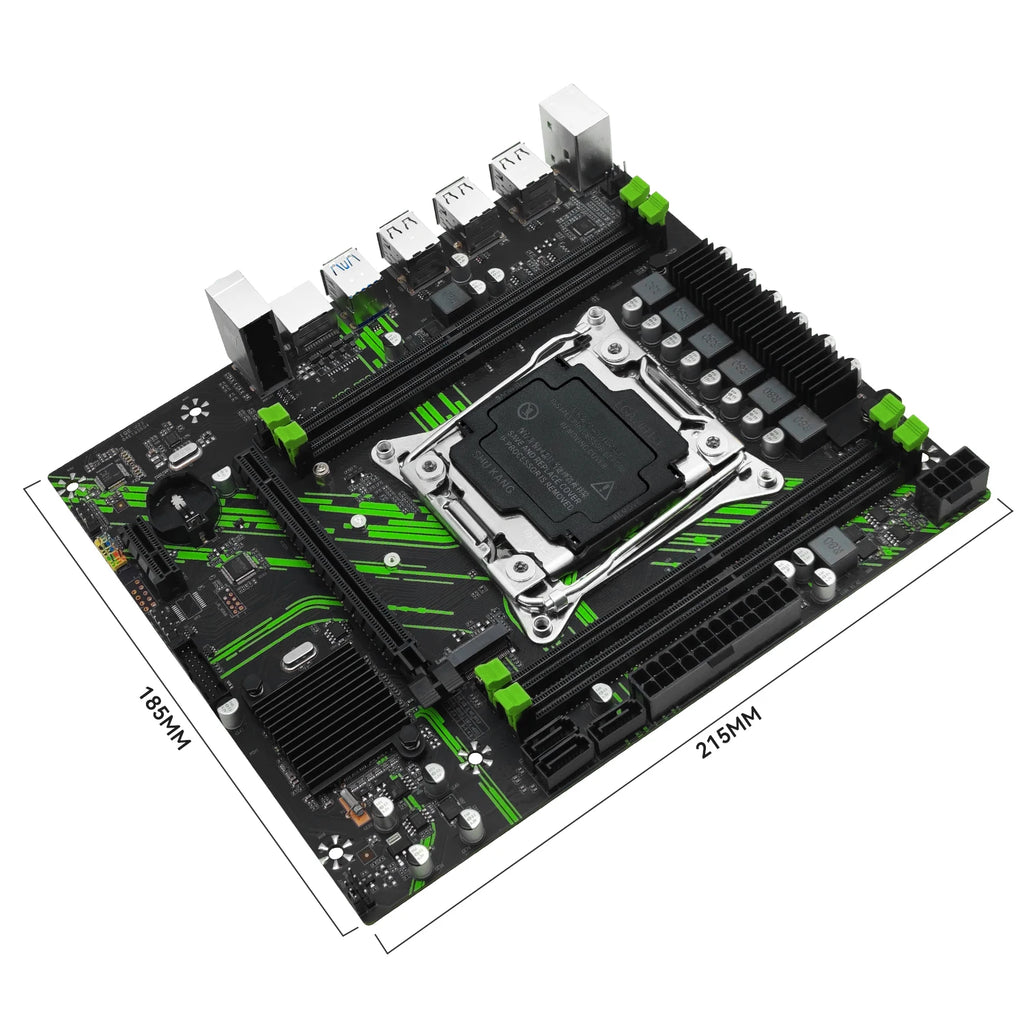

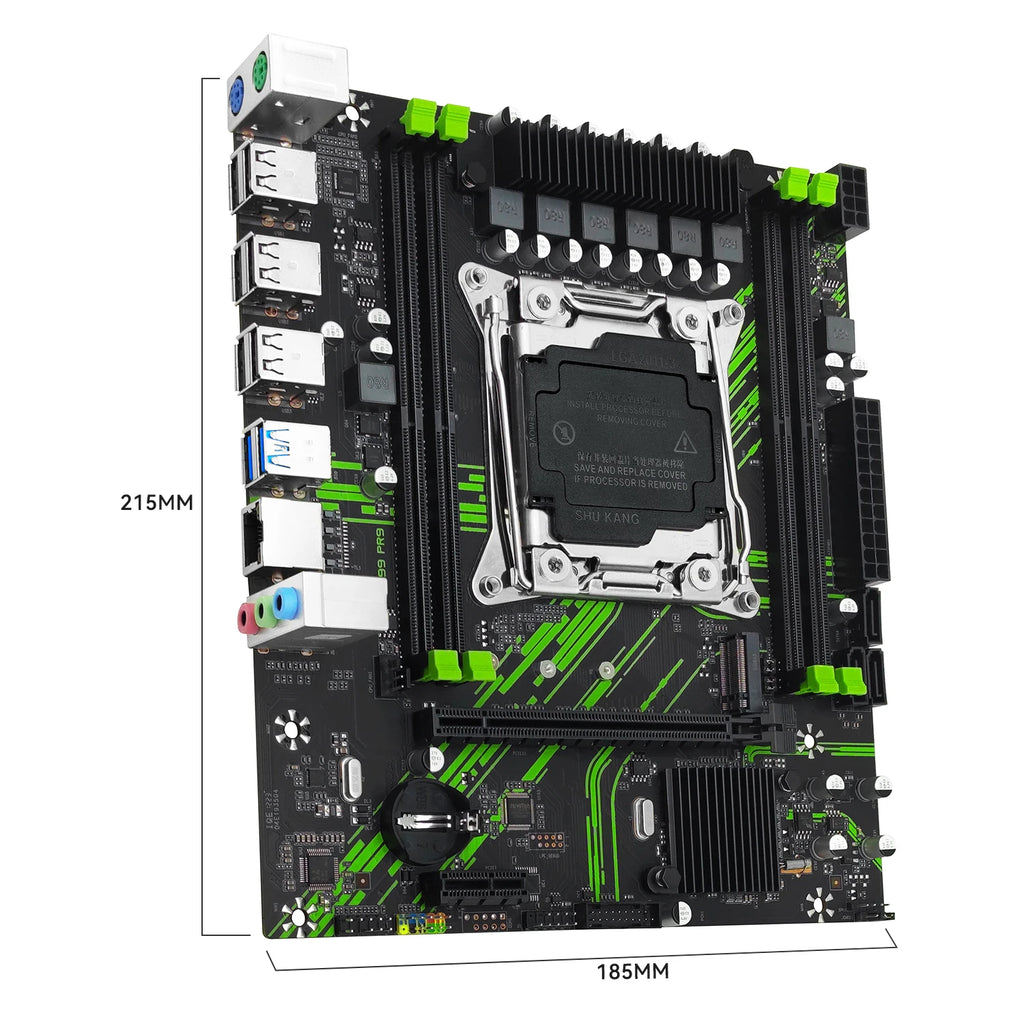

Overall dimensions :215mm * 185mm.>>Regarding the tariff issue, for goods dispatched from the Chinese warehouse, please ensure that you can handle the customs clearance by yourself. If you cannot, we do not recommend that you purchase the goods in our store. We are not responsible for tariffs. Thank you for your understanding.

>>Note:

(1) The color of the bottom plate of the trough may vary from batch to batch, but it will not affect the use of the product. The products are constantly being optimized and upgraded.

(2) Due to manual measurement, please allow an error of 1 to 3mm.

(3) Due to different displays and lighting conditions, the picture may not show the actual color of the item. Thank you for your understanding.

(4) This platform requires a powerful power supply. Please ensure that your power supply is sufficient to support this platform. (At least 500w brand power supply

(5) The battery in the motherboard photo is not included. It will be removed before shipment because the logistics requirements prohibit the use of this battery.
