SPECIFICATIONS

Battery Included: Yes

Brand Name: YEVOLT

Certification: CE,EAC,FCC,RoHS,KC

Hign-concerned Chemical: None

Is Smart Device: No

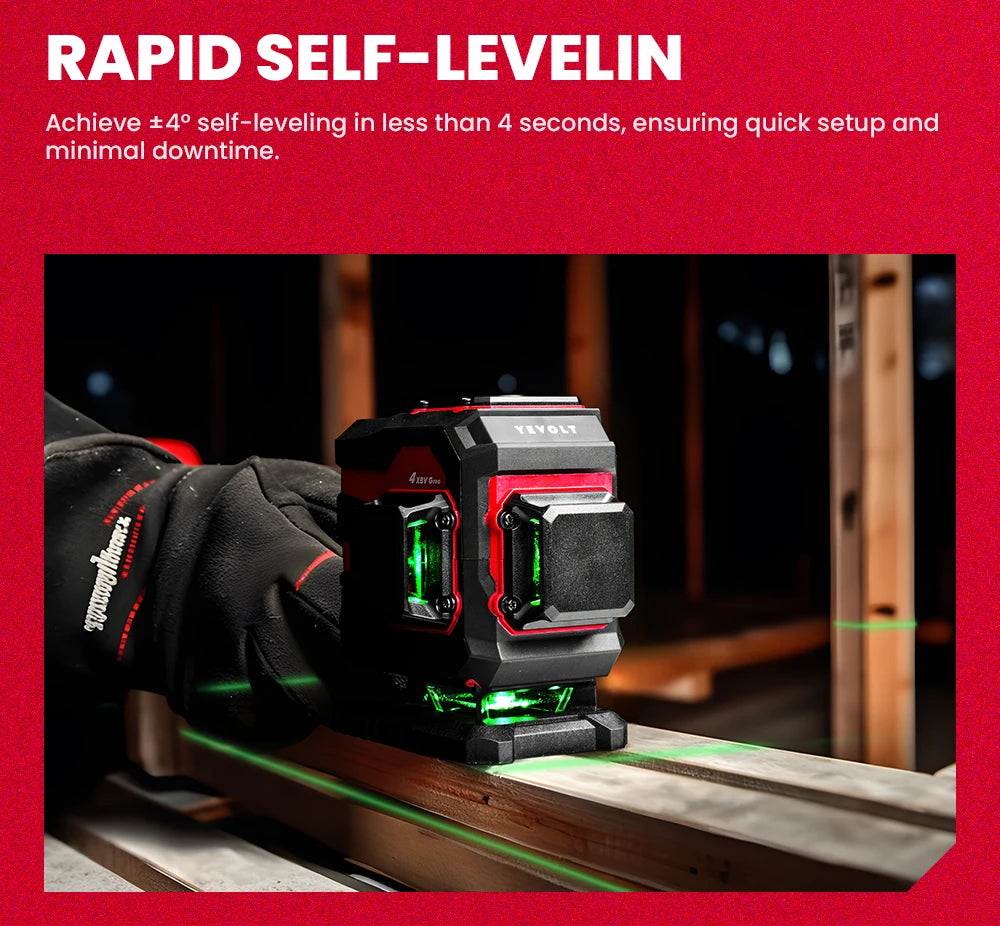

Leveling Time: <4 s

Measurement Model: 12 lines

Model Number: YVGLL4XS Series

Permitted Temperature During Operation: -10 °C to +40 °C

Permitted Temperature During Storage: -20 °C to +70 °C

Plug Type: EU

Pollution Degree: 2

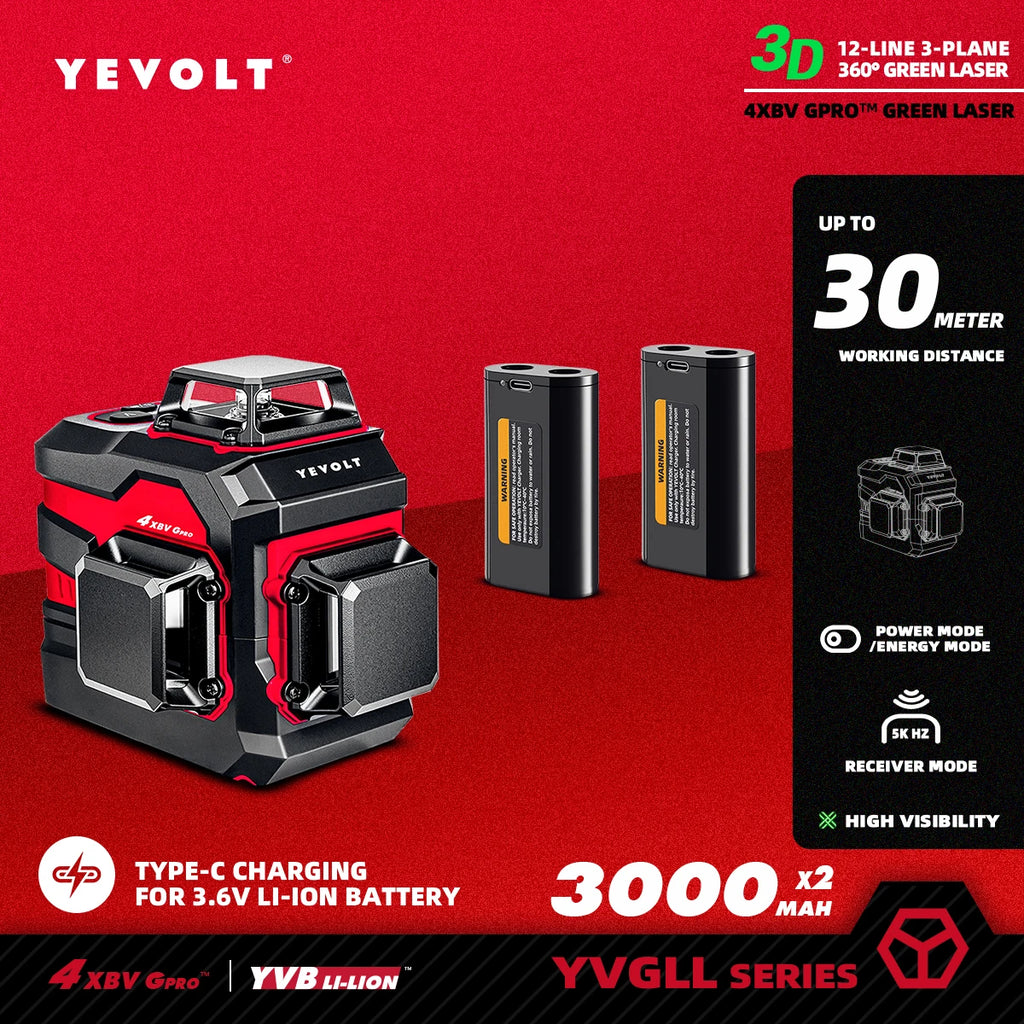

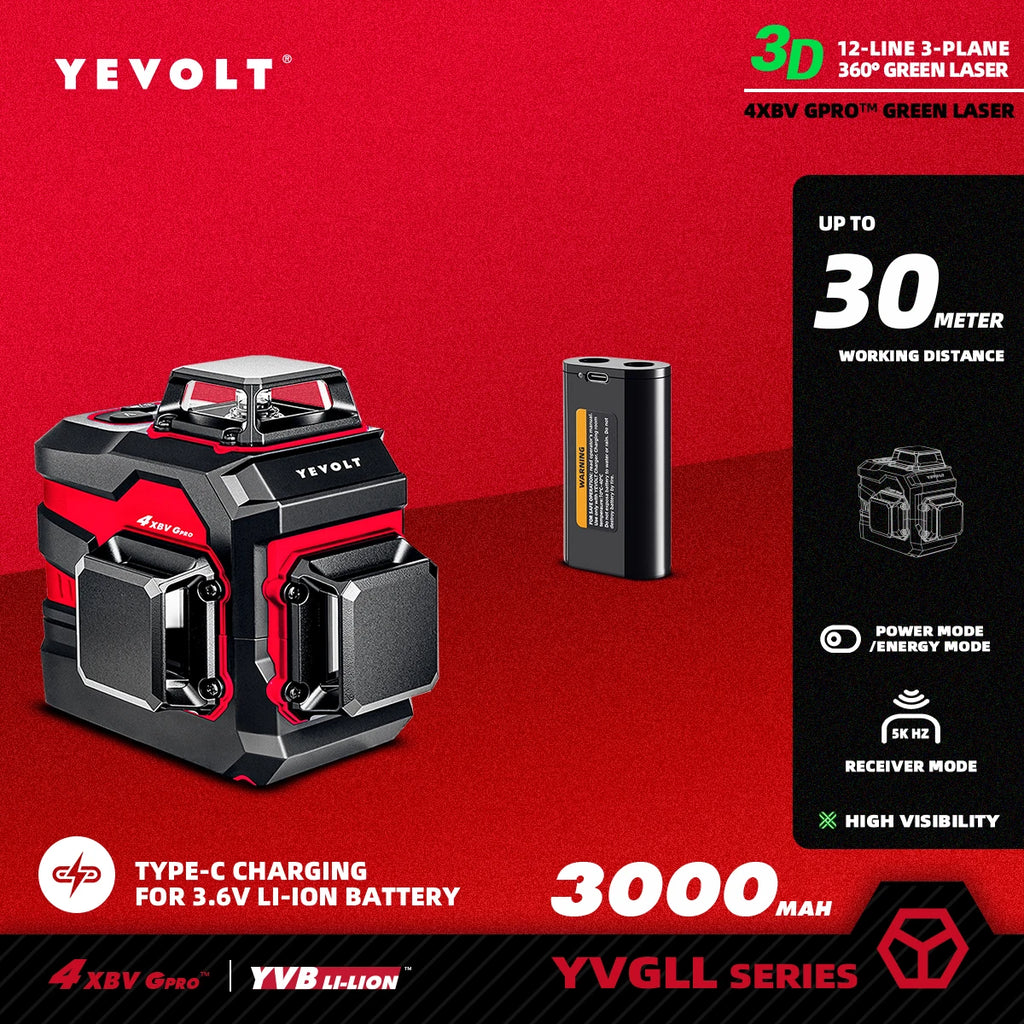

Power Supply: 3.6V 3000mAh Li-ion Power

Precision: 0.2 mm/m (Lab data, actual 50%)

Protection Rating: IP 54 (dust and splash-proof)

Recommended Temperature During Charging: 0 °C to +35 °C

Relative Air Humidity Max.: 90%

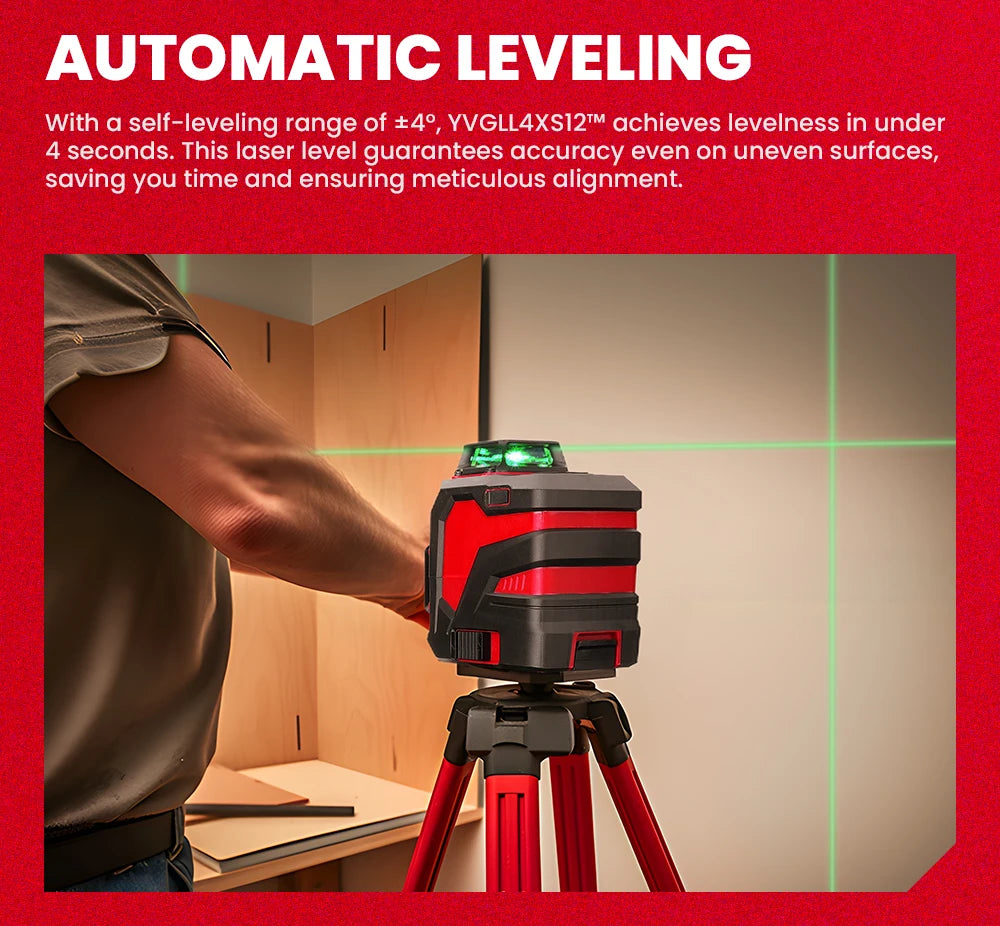

Self-leveling Range: ±4°

Shortest Pulse Duration: 1/10000 s

Size: 125x85x110 mm/125x85x125 mm/125x85x135 mm

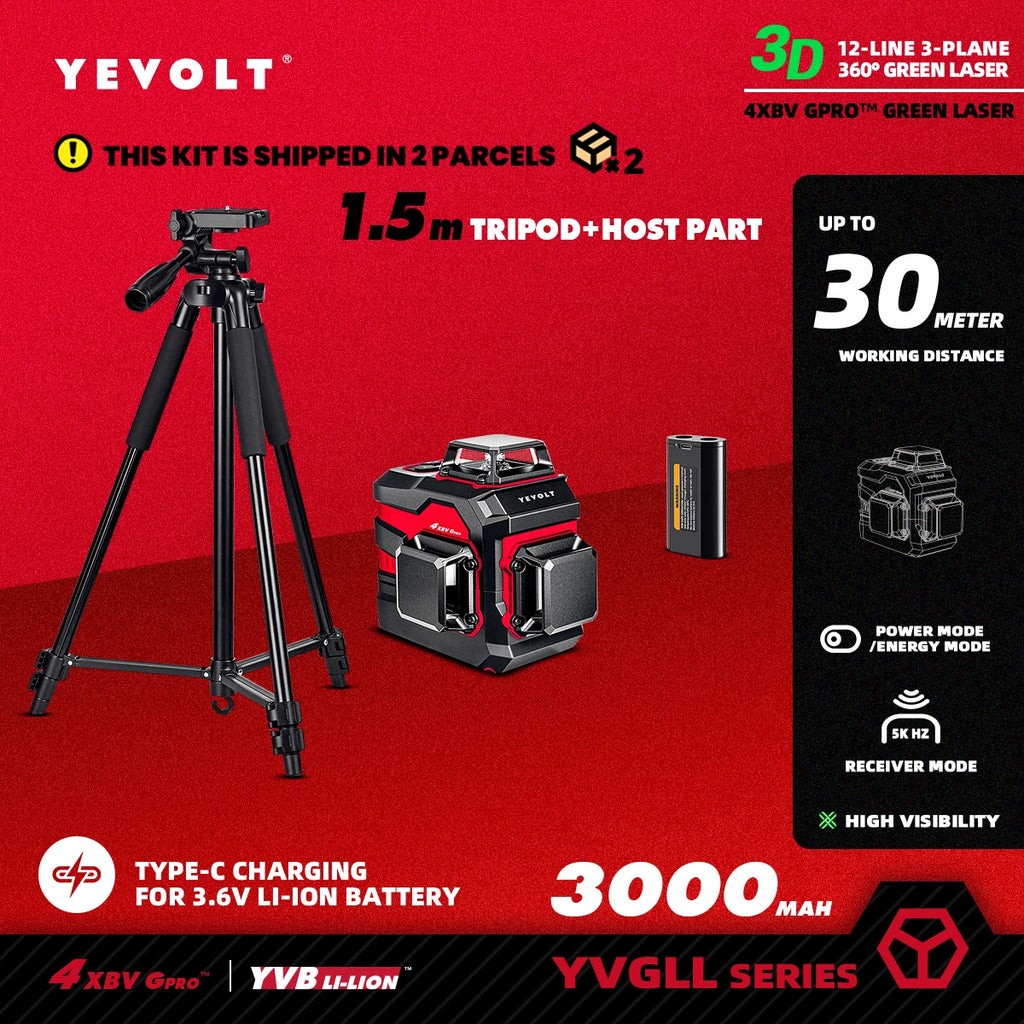

Tripod Mount: 1/4 "

Type: Vertical & Horizontal Lasers

Wavelength: 500-540 nm, Class 2 (IEC/EN60825-1:2014), output power <1mW

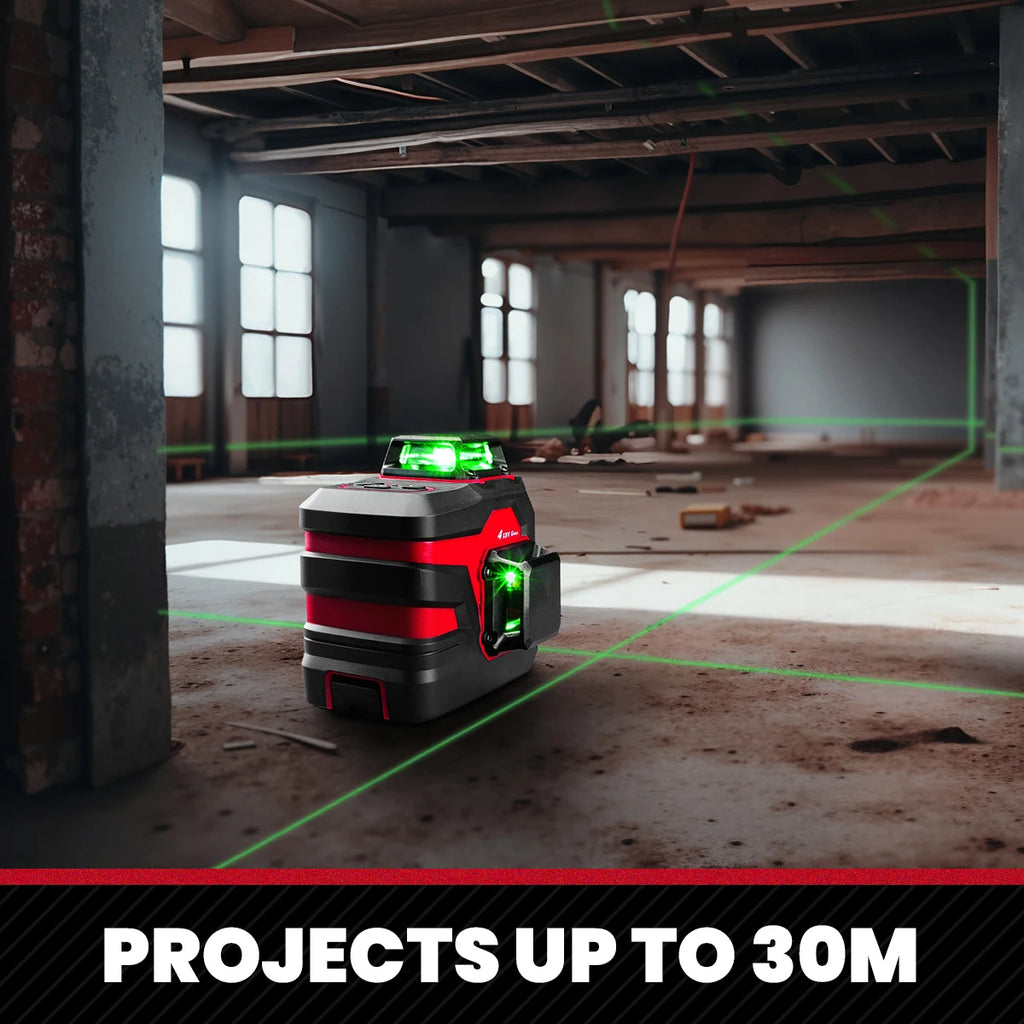

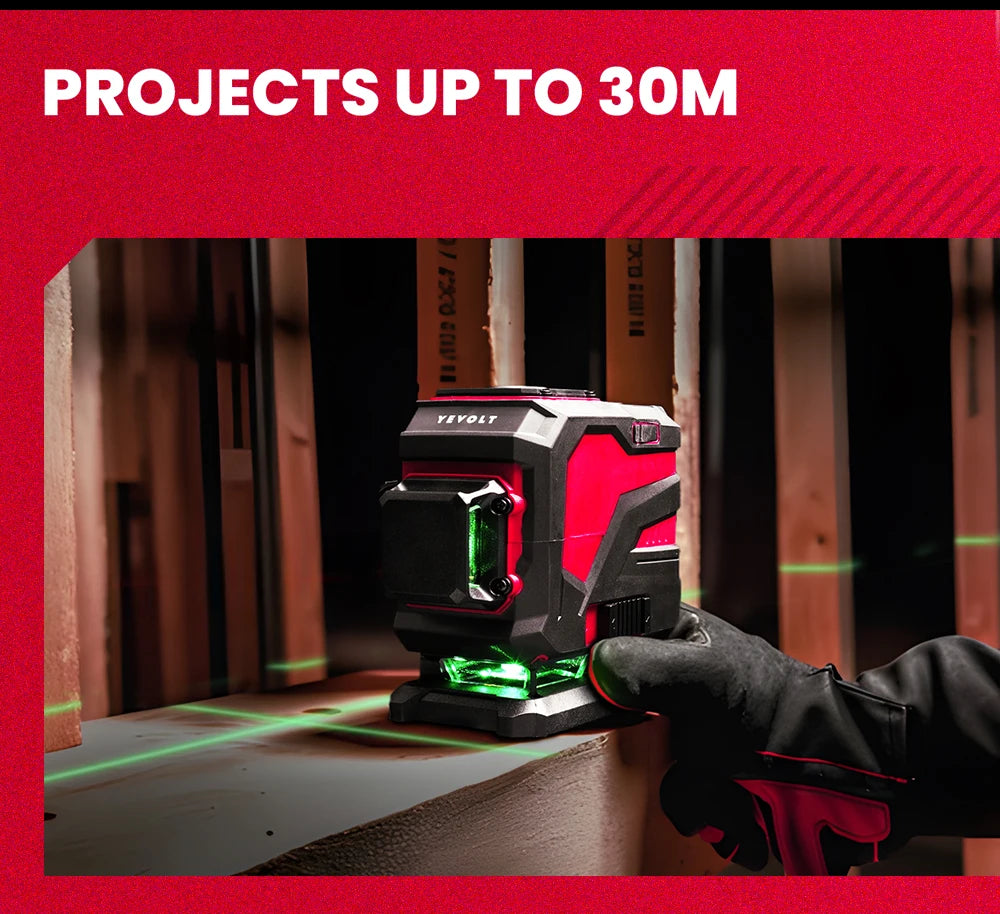

Working Range: 30 m

YVGLL4XS12 Weight: 600 g (with rechargeable battery)

YVGLL4XS12T Weight: 610 g (with rechargeable battery)

YVGLL4XS16 Weight: 630 g (with rechargeable battery)

is_customized: Yes
