Controlador PTZ de rede profissional com joystick 4D para gerenciamento avançado de câmeras IP, desenvolvido pela marca SMTAV com certificação CE. Compatível com protocolo ONVIF e suporta alimentação PoE, eliminando a necessidade de fontes externas dedicadas. Processa vídeo em Full HD (1080P) a 30fps com decodificação H.265 e H.264, garantindo compatibilidade com múltiplos formatos de compressão. Sistema baseado em Linux com processador HIS3536DV100 e capacidade de controlar até 999 equipamentos simultaneamente, oferecendo escalabilidade para grandes instalações. Inclui teclado IP integrado, saídas RS422 e RS232 para integração com sistemas legados, e botões rotativos para controle intuitivo e preciso. O joystick 4D proporciona movimentos suaves em pan, tilt, zoom e foco. Adaptador de alimentação incluído. Ideal para instalações de vigilância corporativa, centros de monitoramento e segurança profissional de alta performance que exigem confiabilidade e controle centralizado.
SPECIFICATIONS
Brand Name: SMTAV
Certification: CE
High Definition Support: 1080P (Full-HD)
High-concerned chemical: None
Inbox adaptor: Yes
Origin: Mainland China
Power Source: Other
Sensor Size: 1/2.8 inches
Sensor Size (inches): 1/2.88 inches
Usage: Professional
Use: Home
|
|
|
|
CHIP |
HIS3536DV100 |
|
SYSTEM |
Linux |
|
Max equipment |
999 |
|
Decoding |
h.265, h.264 |
|
RESOLUTION |
MAX 1080P for 1 channel:1920*1080@30fps |
|
PROTOCOL |
Onvif |
|
Joystick |
4D |
|
OUTPUT |

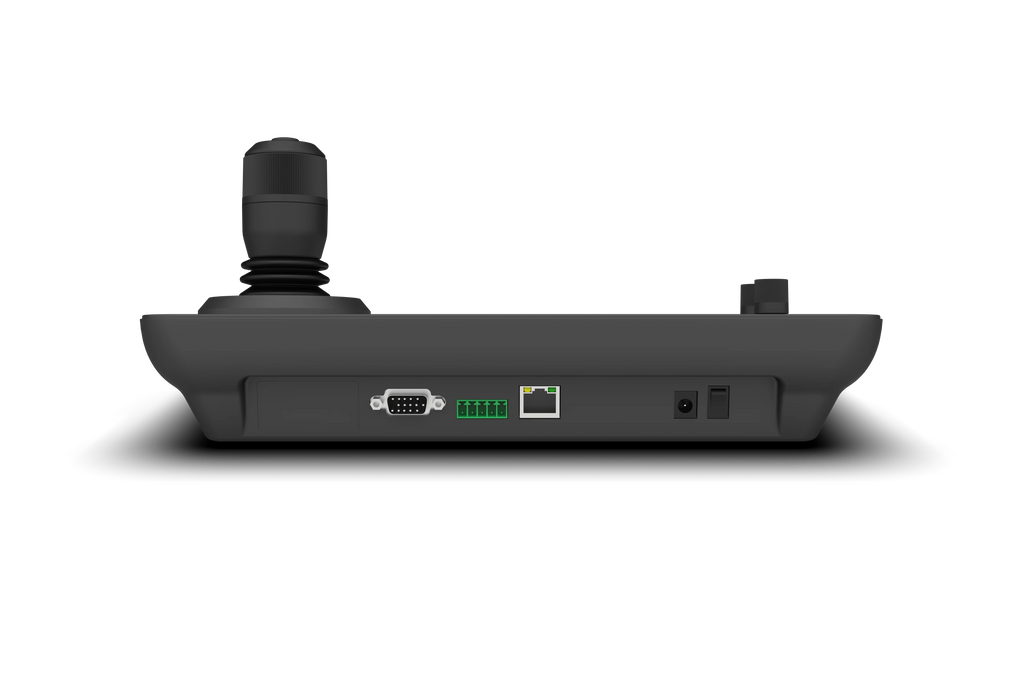

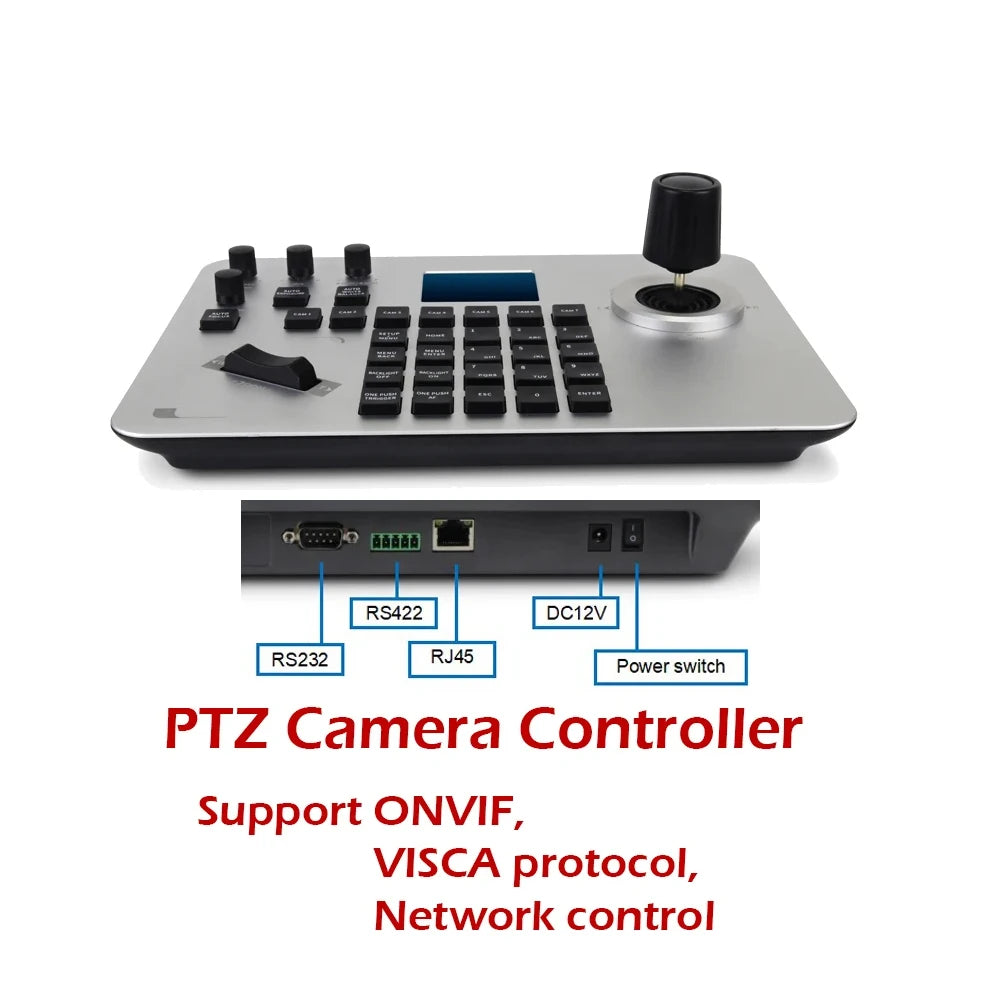

RS422(Reserved), RS232(Development port), RJ45 |
|
Accessories |
Knob, Silicone button |
|
Beep |
On/off |
|
SCREEN |
TFT LCD 800*480 |
|
Power consumption |
≤5W |
|
POWER |
DC12V-2A |
|
Work temperature |
-10℃~55℃ / 14°F~131°F |
|
Work humidity |
20%~80%frostless |
|
Storage temperature |
-10℃~60℃ / 14°F~140°F |
|
Storage humidity |
0~90%frostless |
|
Packing size |
340*268*140mm |
|
|
|
|
|
|

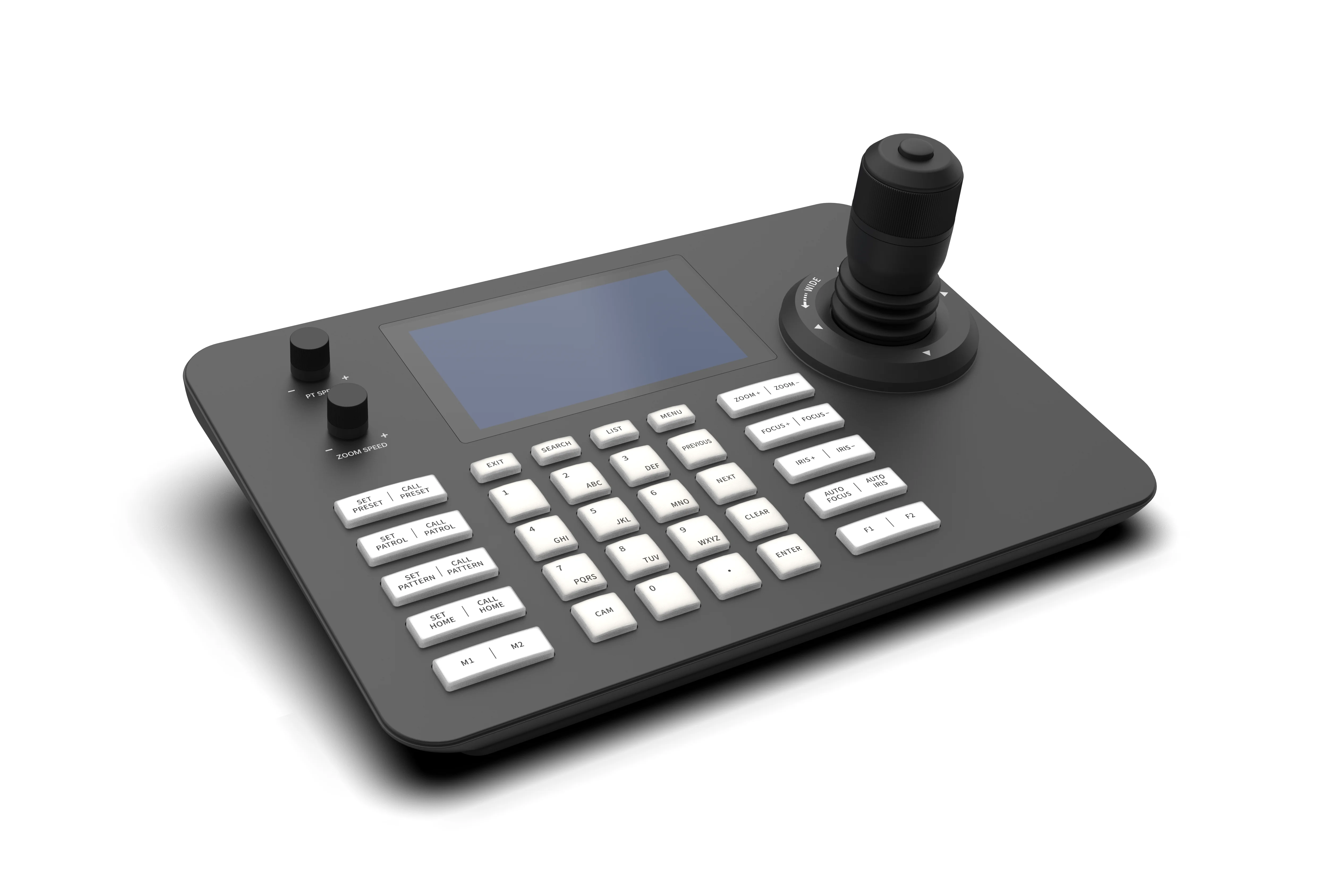

Product Introduction:
The network control keyboard with decoding function. It has strong
maneuverability and effectively solves the problem of inaccurate and
inconvenient mouse click control. High-end atmosphere, unique surface
hardening can effectively prevent scratching; 5 inch LCD screen display is
excellent, image decoding experience is better.

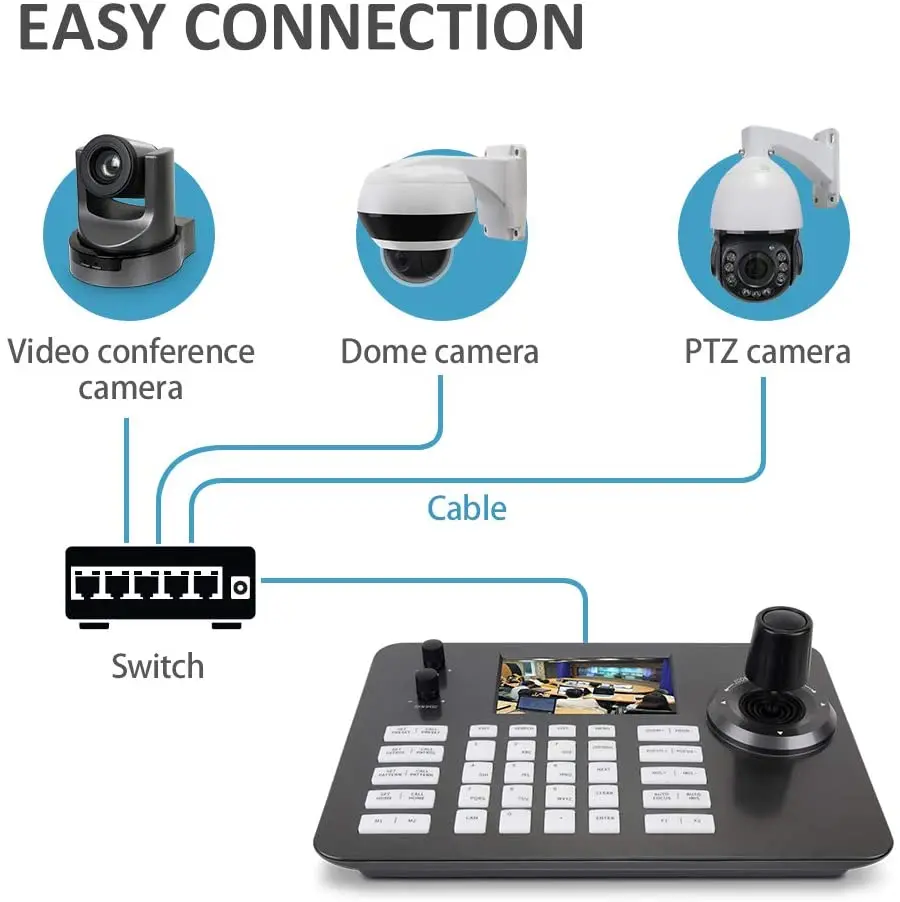

Supports the standard Onvif protocol, with good compatibility, strong
scalability, and easy operation. It only takes a few steps to achieve perfect
control of the network dome.

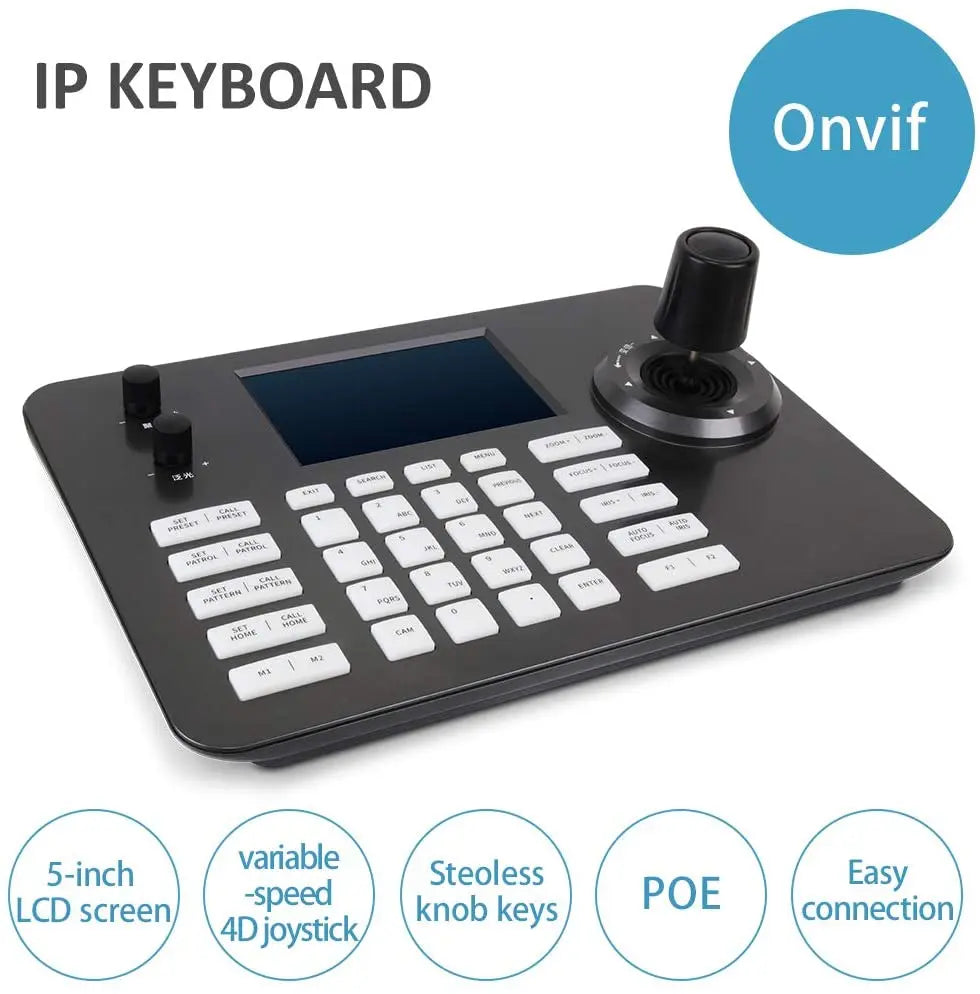

Features:
-
Support network control with independent IP address.
-
Support ONVIF
-

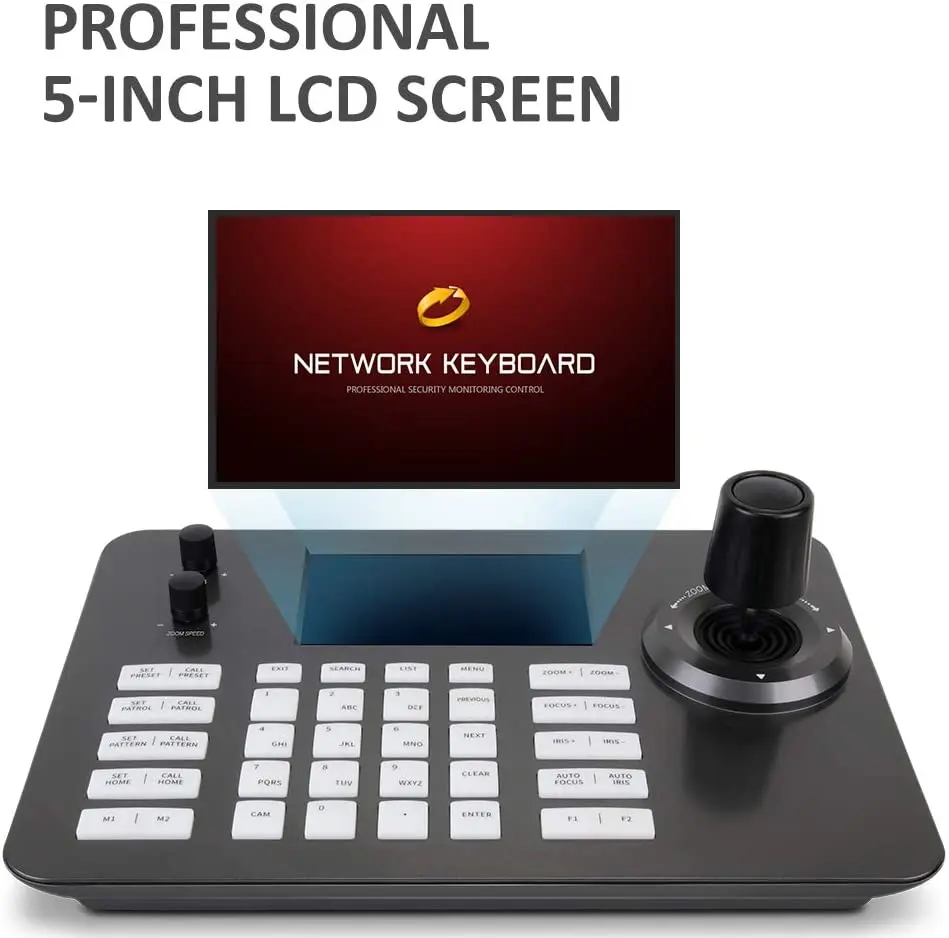

5 inch industrial LCD screen, resolution 800*480, image decoding, real-time monitoring.
-

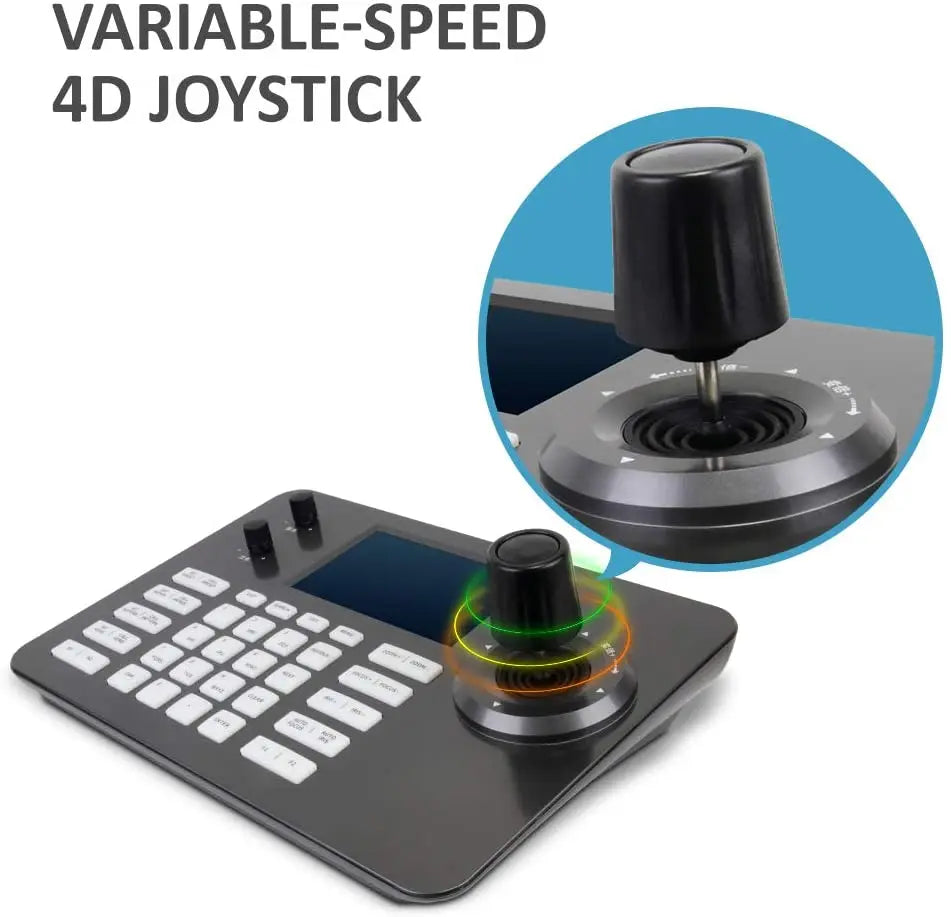

Support 4D joystick control ptz function
-
Support preset patrol pattern and AB scan
-
Support IE web setting
-
Support custom function buttons, add shortcut function (customized)
-

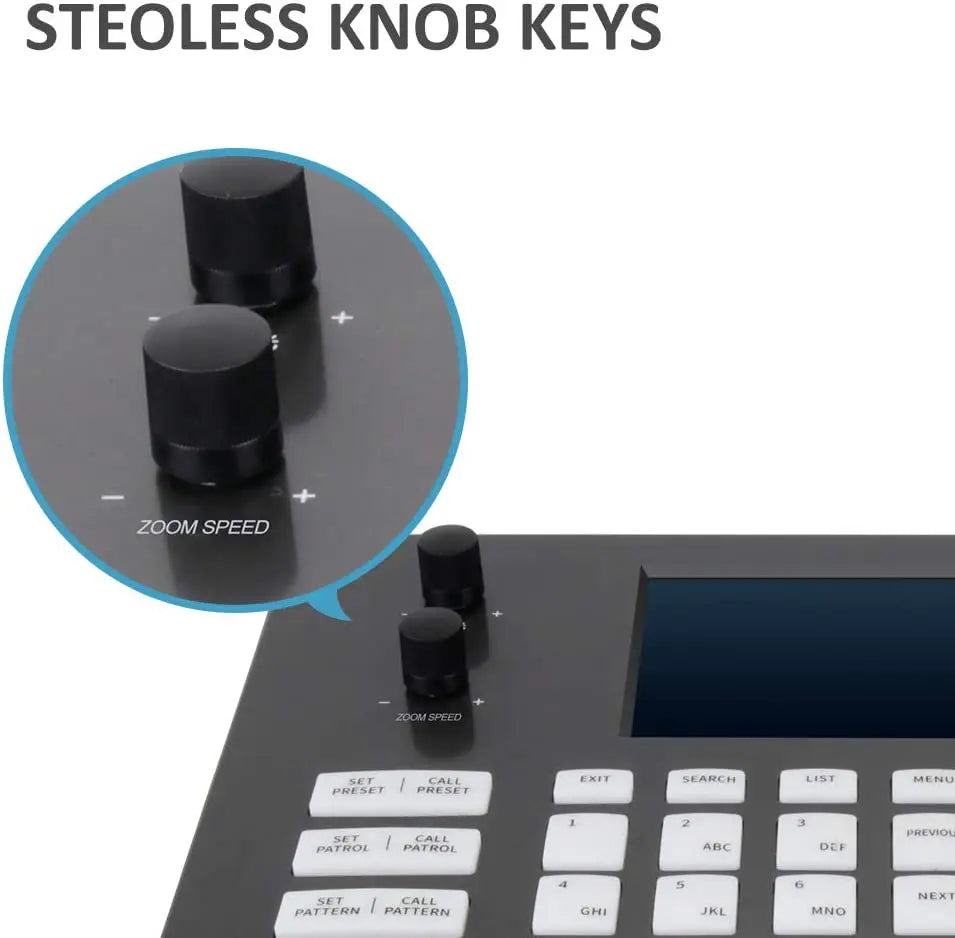

Support Knob for zoom and control speed
-
Support POE
Application:
The S3 video decoding control keyboard can be used in various important conference venues, such as government and telecommunications departments, public security, procuratorates, courts, banks, securities, insurance, education, taxation, etc., to control cameras in a simple and fast manner.
