Sistema de posicionamento de precisão DRO-2V com visor digital e duas réguas de vidro de alta resolução, desenvolvido para aplicações exigentes em usinagem. Compatível com tornos, fresadoras, furadeiras e máquinas CNC, oferece medições precisas de até 1000mm com resolução configurável de 0,1µm a 10µm, atendendo diferentes necessidades de tolerância. Alimentação versátil AC 90-260V com entrada TTL e velocidade máxima de 60m/min garante operação contínua e confiável. A construção robusta apresenta seção transversal de 22x34mm, proporcionando estabilidade excepcional durante operações de usinagem de precisão. Acompanha tampa protetora, suporte de montagem ajustável, parafusos de fixação e manual técnico completo. Certificado CE, representa solução profissional para oficinas e indústrias que demandam controle dimensional rigoroso e repetibilidade em seus processos de manufatura.

SPECIFICATIONS

Accessories: display cover, mounting bracket, user manual

Application: lathe, milling, drill, CNC machine

Available Measrus Length: 50-1000mm

Battery Included: No

Brand Name: SNSNTDRO

Certification: CE

DRO acceptable input: TTL

DRO reading resolution: 0.1um,0.5um, 1um, 2um, 5um, 10um

If include accessories: Yes(with protect cover, screws and accessories)

Input voltage: 5VDC ±5% , 100mA

Item name: snsntdro linear scale

Max of Measuring speed: 60m/min

Model Number: DRO-2V

NTS-MCross Section Dimension: 22mmX34mm

Output signal: TTL

Power: 25VA

Procut name: Mill Lathe 2 Aaxis DRO kit

Scale Resolution: 0.001mm / 0.005mm

Scale cable: 3 meters

Voltage range: AC90-260V 50/60HZ

Warranty: 1 year

Description

SNSNTDRO DRO-2V 2-axis DRO kit for milling machine grinder digital readout display with 2PCS 5um/1um optical scale linear encoder

 with effective working stroke 50mm-1000mm.

1.How to select scales length?

For model: NTS-M, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550,

600, 700, 750,800,850,900,950,1000 for choose.
For model: NTS-S, 50, 100, 150, 200, 250, 300, 350, 400, 450 for choose.

Scale length means scales working travel length.

After making order, please leave a message to seller with you needed scales travel length.

2.The order fee does not include any import taxes and duties and the buyer is

responsible for the duties. Some countries require you to provide personal tax ID

and corporate tax ID, please leave us a message or contact us.

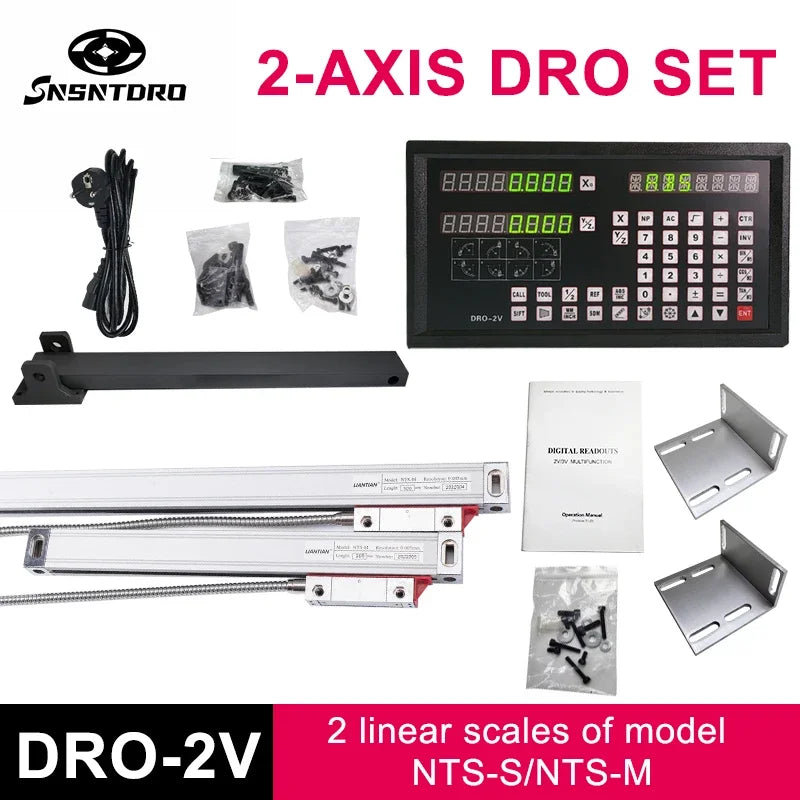

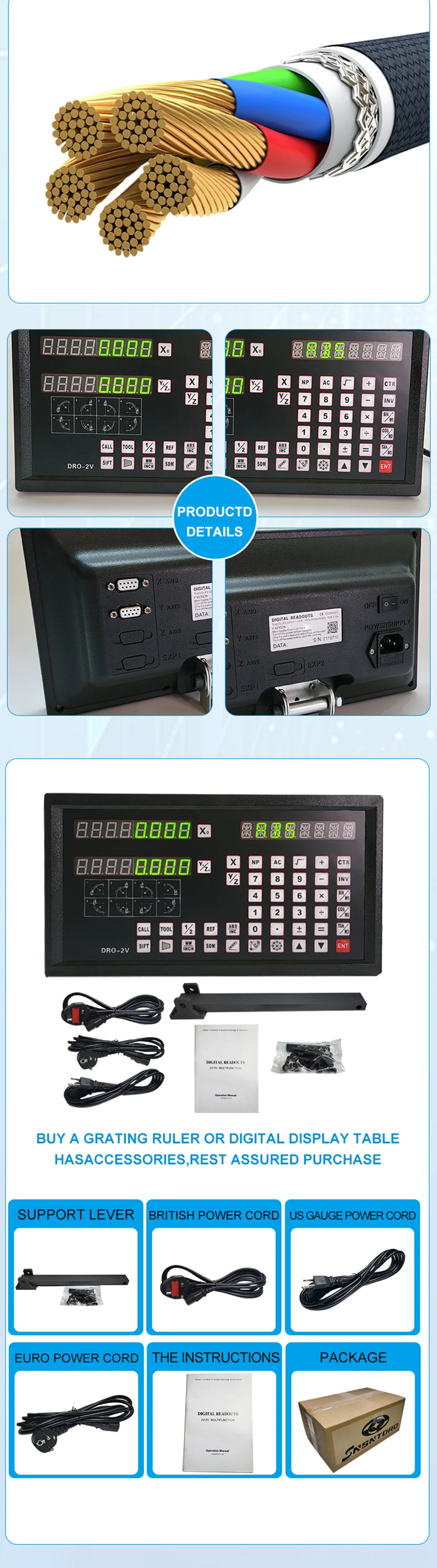

Package includes:

0.005mm complete kit

-1 piece DRO-2V 2 axis display(with user manual, mounting arm, screw bag)

-2 pieces 0.005mm linear scales (with covers, mounting bracket, screw bag)

0.001mm complete kit

-1 piece DRO-2V 2 axis display(with user manual, mounting arm, screw bag)

- 2 pieces 0.001mm linear scales (with covers, mounting bracket, screw bag)

Purchase Notes

1. You can choose 2 pieces scale within 50-1000mm travel measuring length with 5um/1um resolution.

2. After ordering please tell us the travel length of scale that you need.

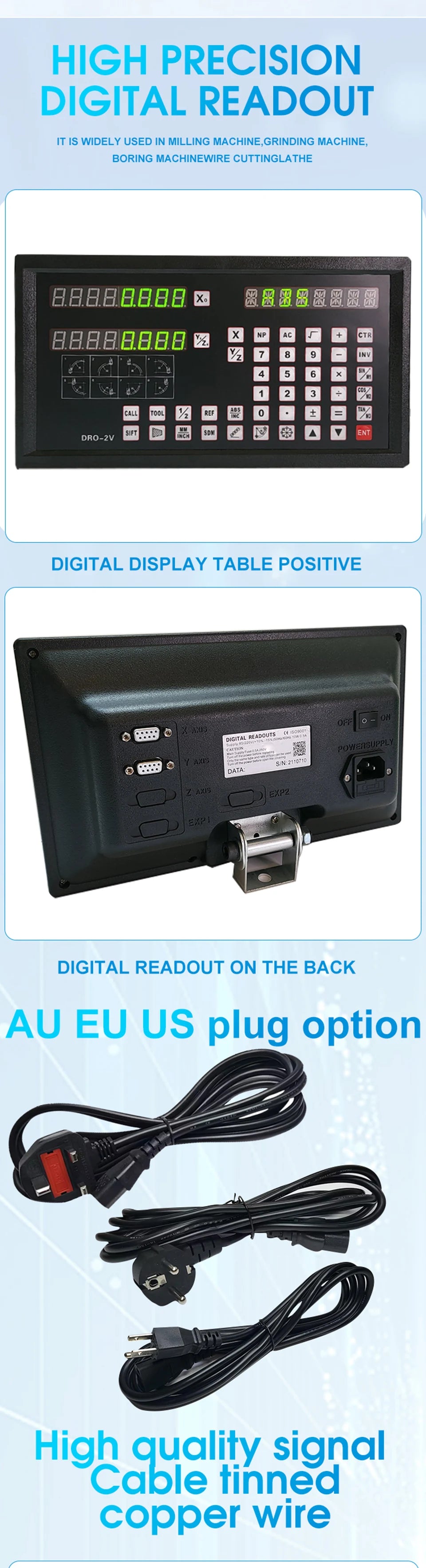

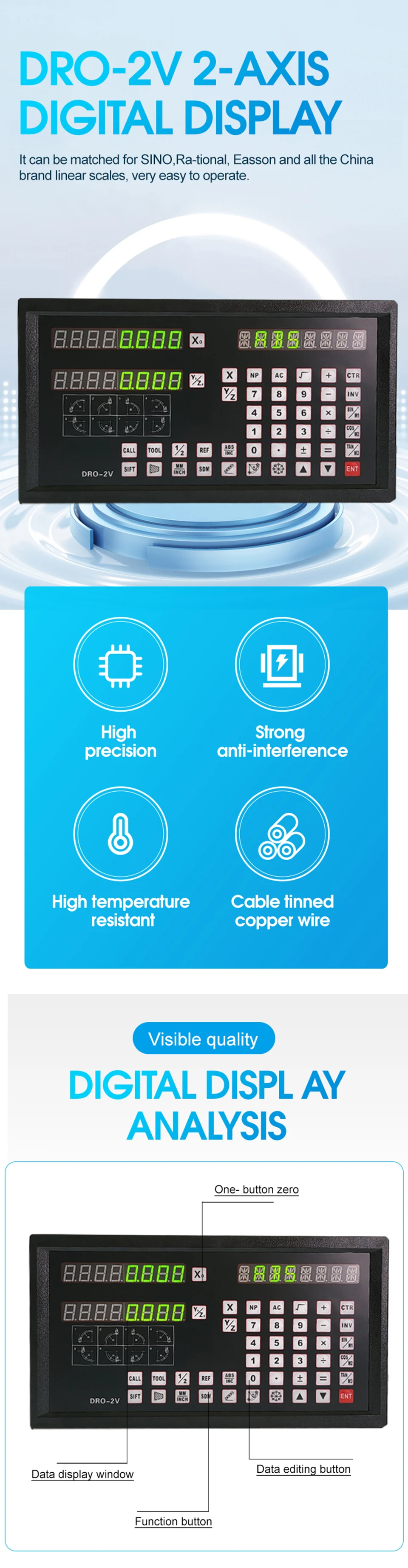

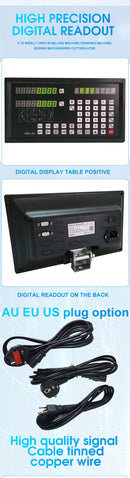

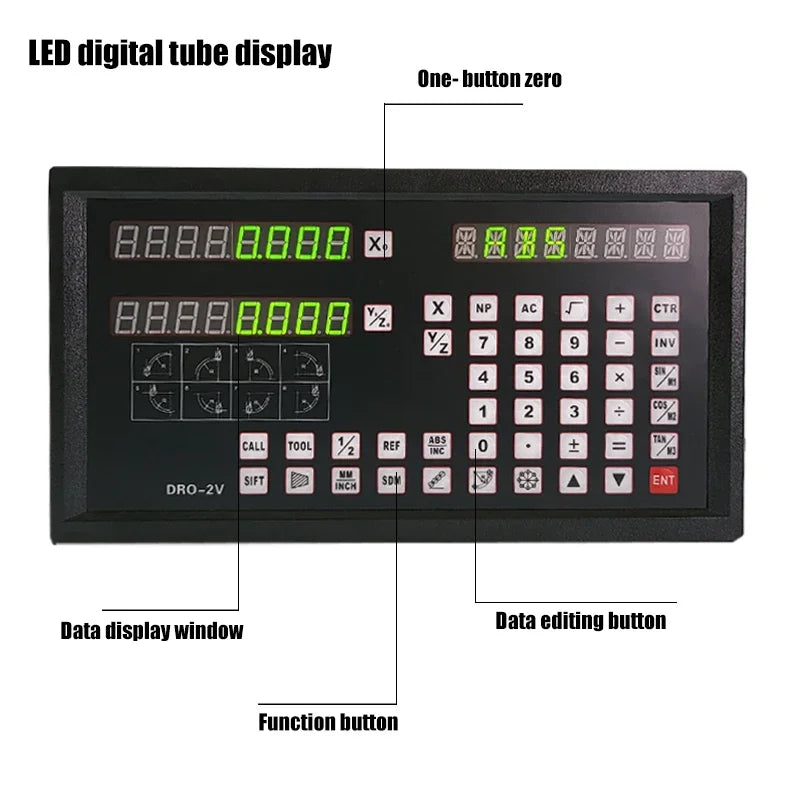

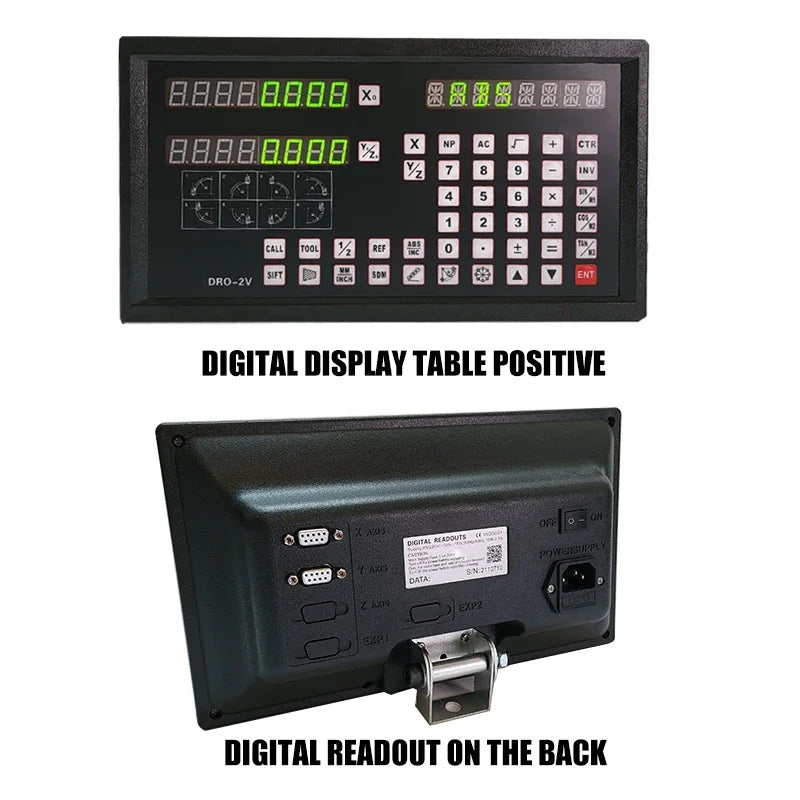

DRO Features

The digital readout(DRO) is a high precision instrument that can be used on lathe,grinding machine,milling machine,boring machine,EDM etc.

Product Features
English language display
Self-motion middle parted function
Metric/imperial conversion function
Absolute/relative counting transformation function
1000 groups of zero memory function
Function calculator operation function
Arc surface processing function
PCD function
Cant processing function
PLD function
Machine tool error compensation function
EDM function(option with extra)

Function
1.zero clearing
2.reset
3.mm/inch mode
4.ABS/INC coordinate conversion
5.200sets sub datum
6.power off Memory;
7.center of 1/2
8.liner error compensation
9.sleepping mode
10.Clear 200 sets Sdm datum;
11.ABS/INC mode
12.calculator
13.drilling of circumference
14.drilling of oblique line
15.machining of inclined plane
16.machining of circular arc
17.lathe function(match)
18.Rectangular lumen gradual processing
19.digital filtering
20.vibration filtering
21.R/D fucntion

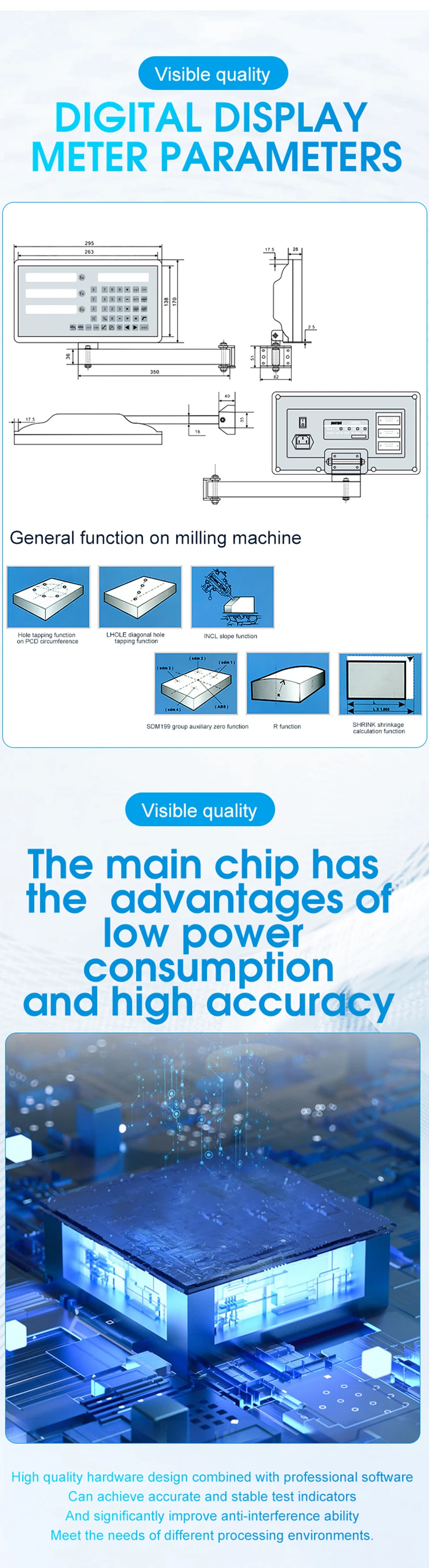

Techincal Parameters
1.Voltage range:AC 90V-260V/50Hz-60hZ
2.Power consumption:25VA
3.Coordinates:1/2/3/4
4.Display:8-bits digits display
5.Input signal: TTL square
6.Input signal frequency: 100KHZ
7.Reading resolution: 10um,5um,2um,1um,0.5um

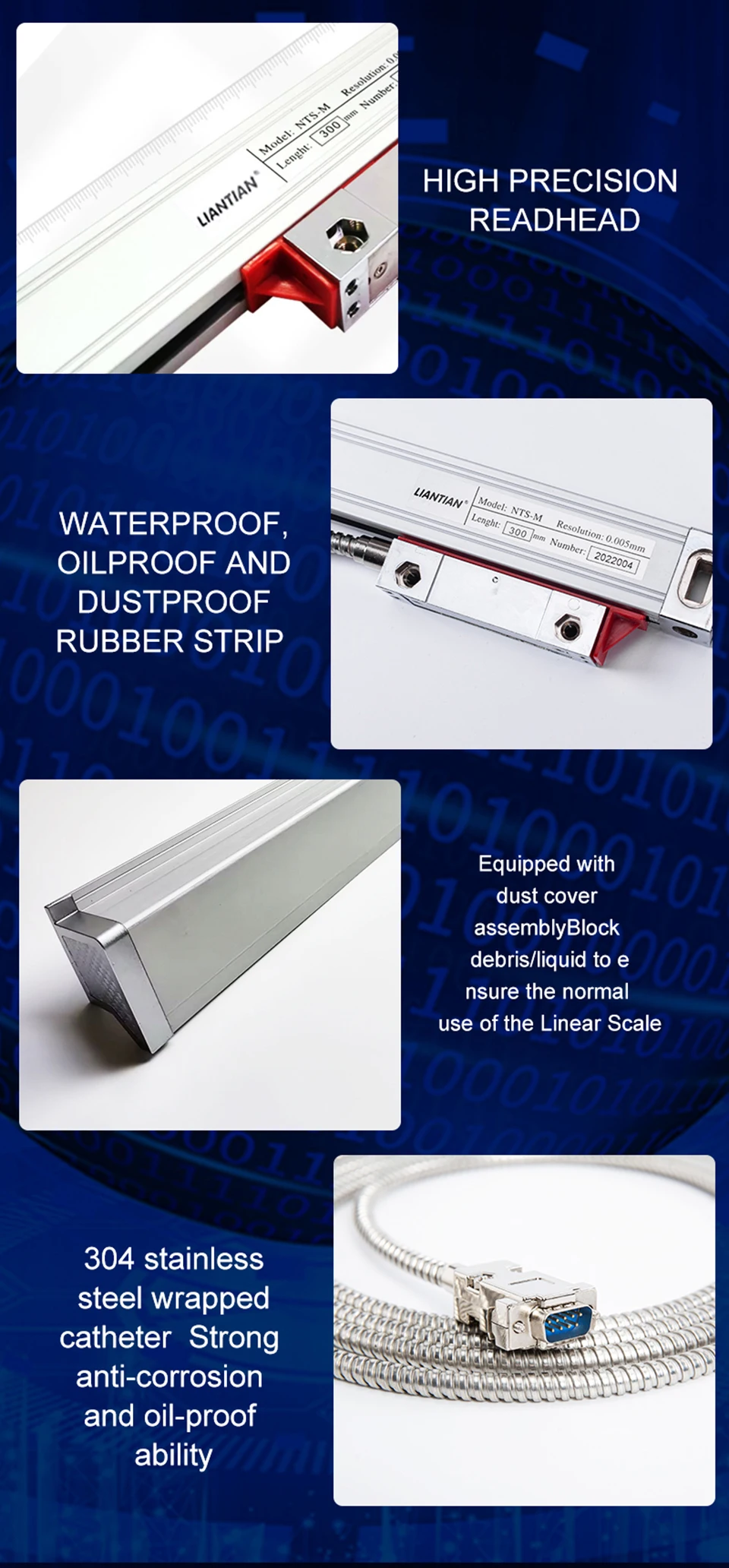

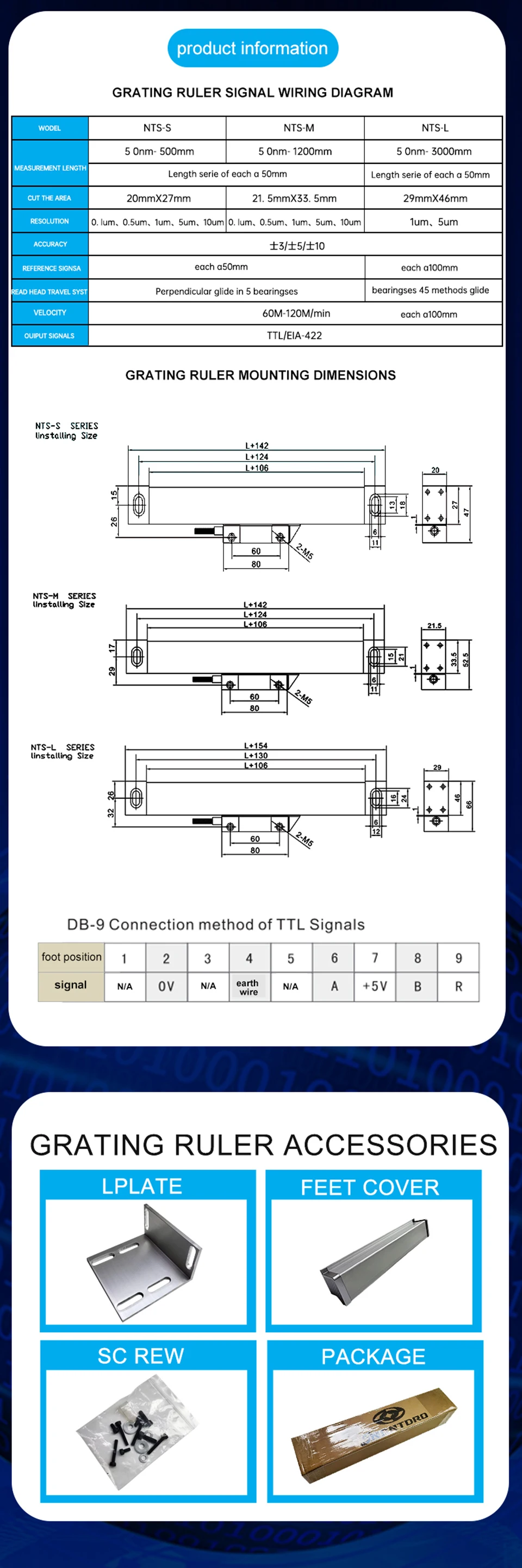

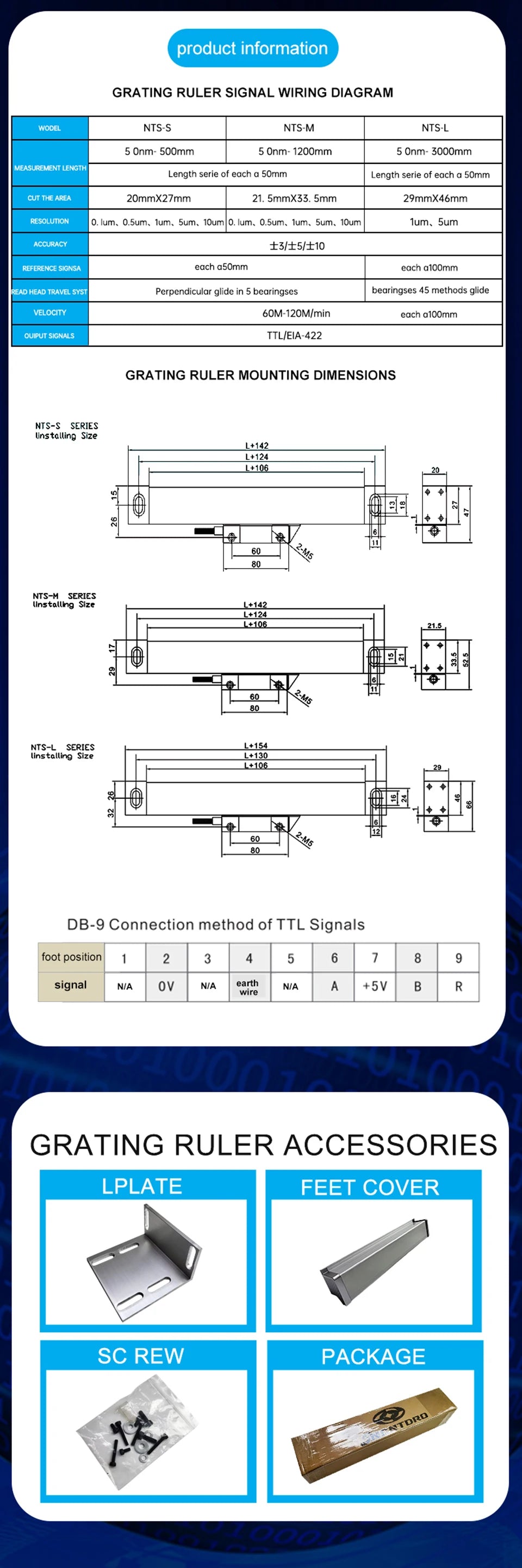

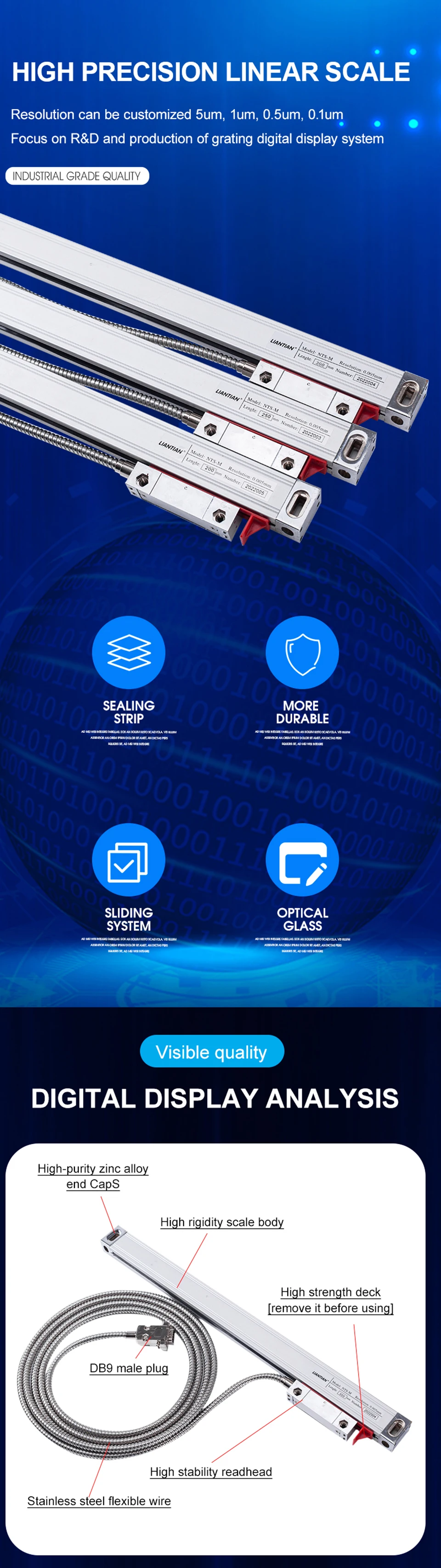

Linear Scale Specification

Parameter
Product name:precision glass grating lenear transducer
Resolution: 0.005mm / 0.001mm
Cross section:21mm*33mm
Output signal:TTL(RS422 option)
Input voltage:DC 5V +/-5%
Available measuring distance:50-1000mm
Overall length: available measuring distance + 142mm
Working speed:60m/min
Working temprature:0-50
Cable length:2.5m-3m(longer option)
Accessories:aluminum protective cover/L connection board/screws bag
There is slim scale 20mm*27mm option, please contact seller if need or leave a message after placing order.

Tips (How to choose scales length?)

This order includes 1 pieces 2-axis DRO-2V and 2 pieces linear scales with travel length between 50 to 1000mm, after order and payment please contact seller to write down you needed scales travel(measuring) length.

Important: If you need an NT S-L scale please contact the seller
