SPECIFICATIONS

Brand Name: RAYKUBE

Connectivity: WiFi

Doorknob Funcition: Biometric,Key & Keypad

Fit Door Thickness: 28-48mm

Handle Direction: Direction Reversible

Hign-concerned Chemical: None

Material: Zinc Alloy

Model Number: F7 Tuya WiFI

Power Supply: DRY BATTERY

Smart home platform: Tuya

Special Features: Builted-in Gateway

Suitable Door Type: Steel Door,Wooden Door,Glass Door,Brass Door,Stainless Stell Door

Ways To Unlock: App,Mechanical Keys,Card,WiFi,Password,FINGERPRINT

Overview-F7 Tuya WiFi 8-language Version

F7 is a new fingerprint door lock with Longer and Larger Handle Panels, which can cover the door holes left by the old lock. Also, The connecting rod screw on the back of lock is adjustable , which compares with the traditional electronic lock with fixed screw , F7 is more convenient to install and no punching.

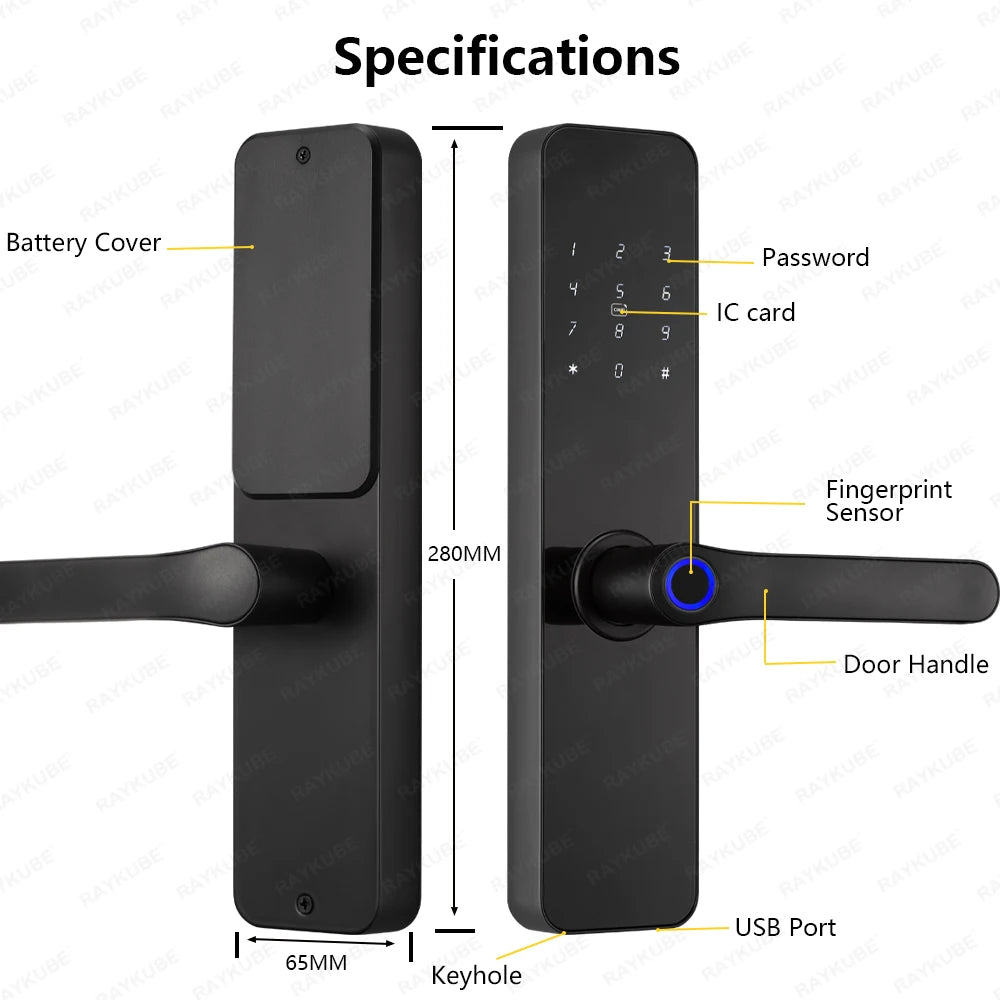

Specifications:

• Model:F7

• System: Tuya

• Material: Aluminium Alloy

• Unlock modes: Tuya WiFi/ Fingerprint / Password / Smart card / Key

• Fingerprint read: FPC Sensor (Semiconductor Sensor)

• Color: Black

• User(fingerprint/card/password): Total 99

• Chip Type: Dual Core Driver

• Touch screen: IML Material

• Working power: 4 x AAA 1.5V batteries (not include)

• Operating temperature: -20 to 55 Centigrade

• Password function: support virtual password

• Suit for the door thickness about 28-55mm

Features

• With Longer and Larger Handle Panels, which can cover the door holes left by the old lock.

• The connecting rod screw on the back of lock F7 is adjustable, more flexible installation and no punching

• Front panel mirror design, simple and advanced

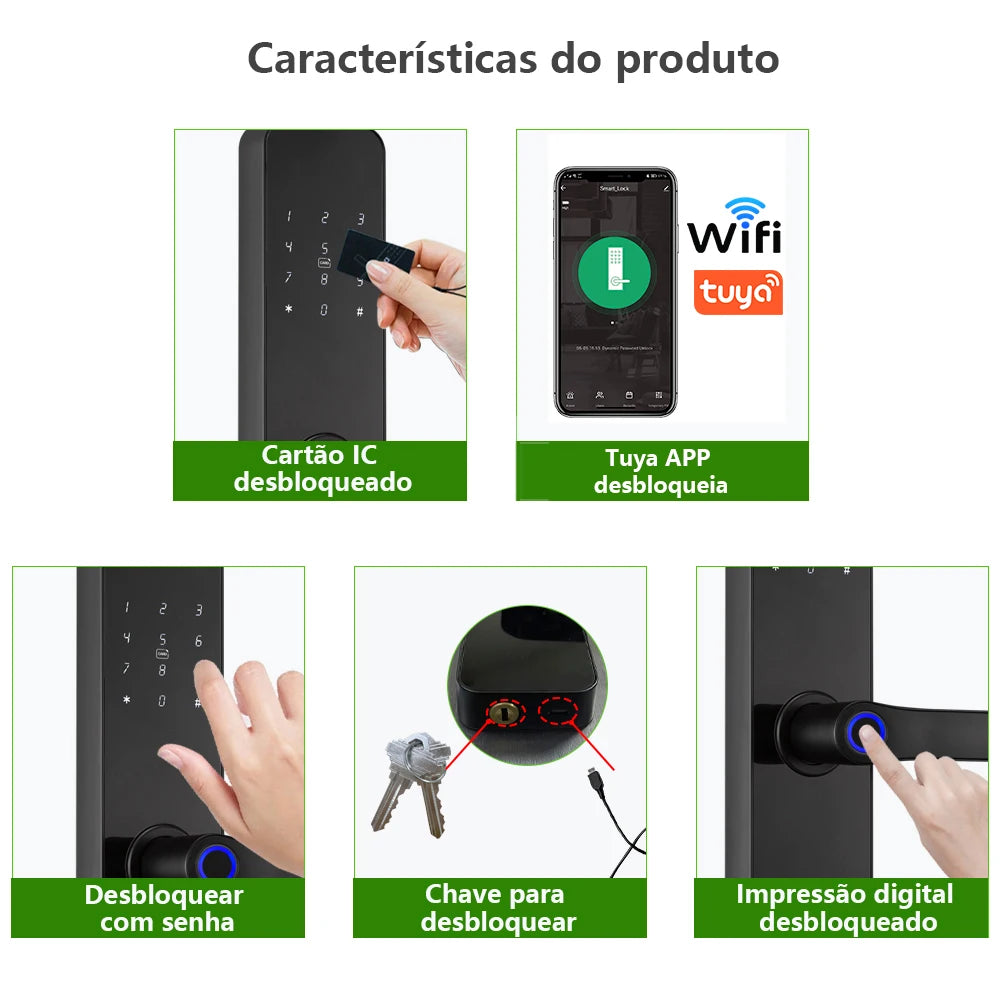

• Unlock methods: Tuya APP / Fingerprint / Password / Smart Card / Key Unlock

• Tuya Version : 8 language voices (Arabic / English / Indonesian / Portuguese / Russian / Spanish / Thai / Vietnamese) to switch freely

• Virtual Password Anti-peeping Unlock Supported

• Mechanical keys and emergency power supply (USB) can be used when the door lock is out of power.

• Universal for left and right doors, suitable for 28-55 mm door thickness.

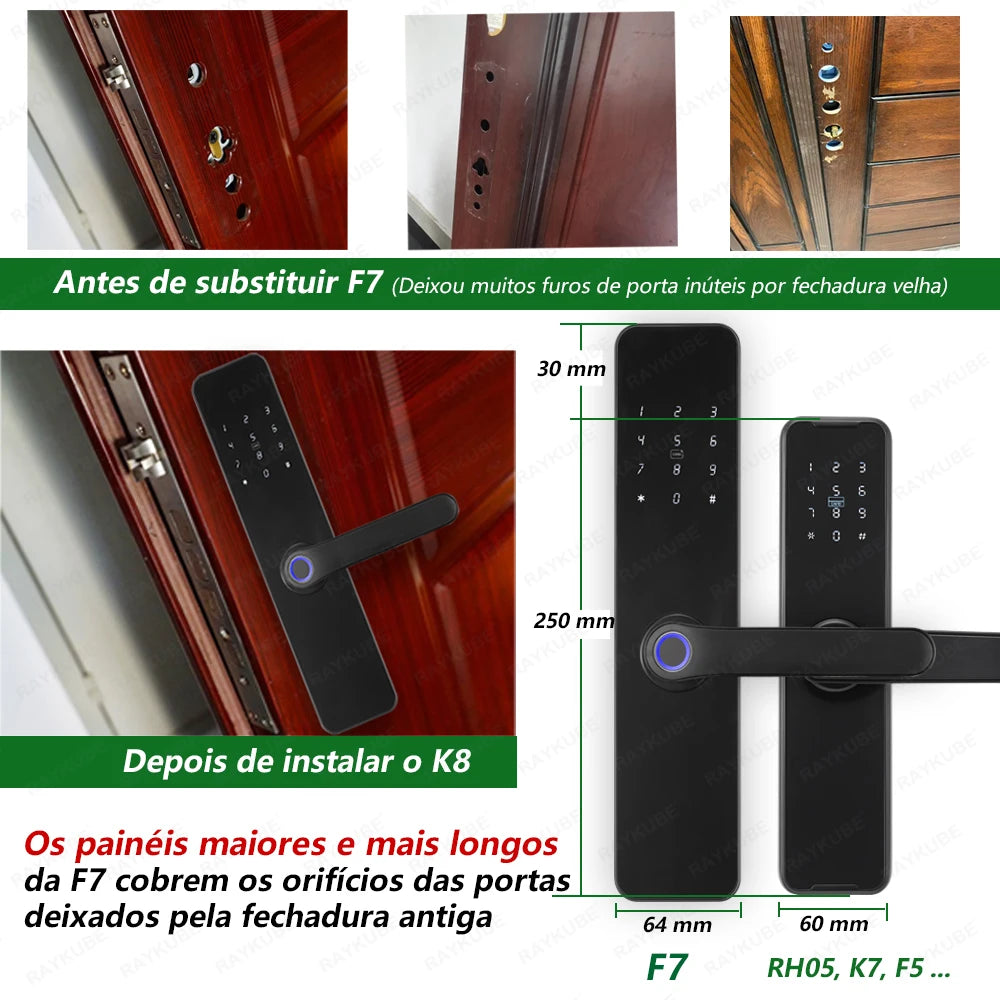

Do you trouble with the useless door hole left by the previous lock ?

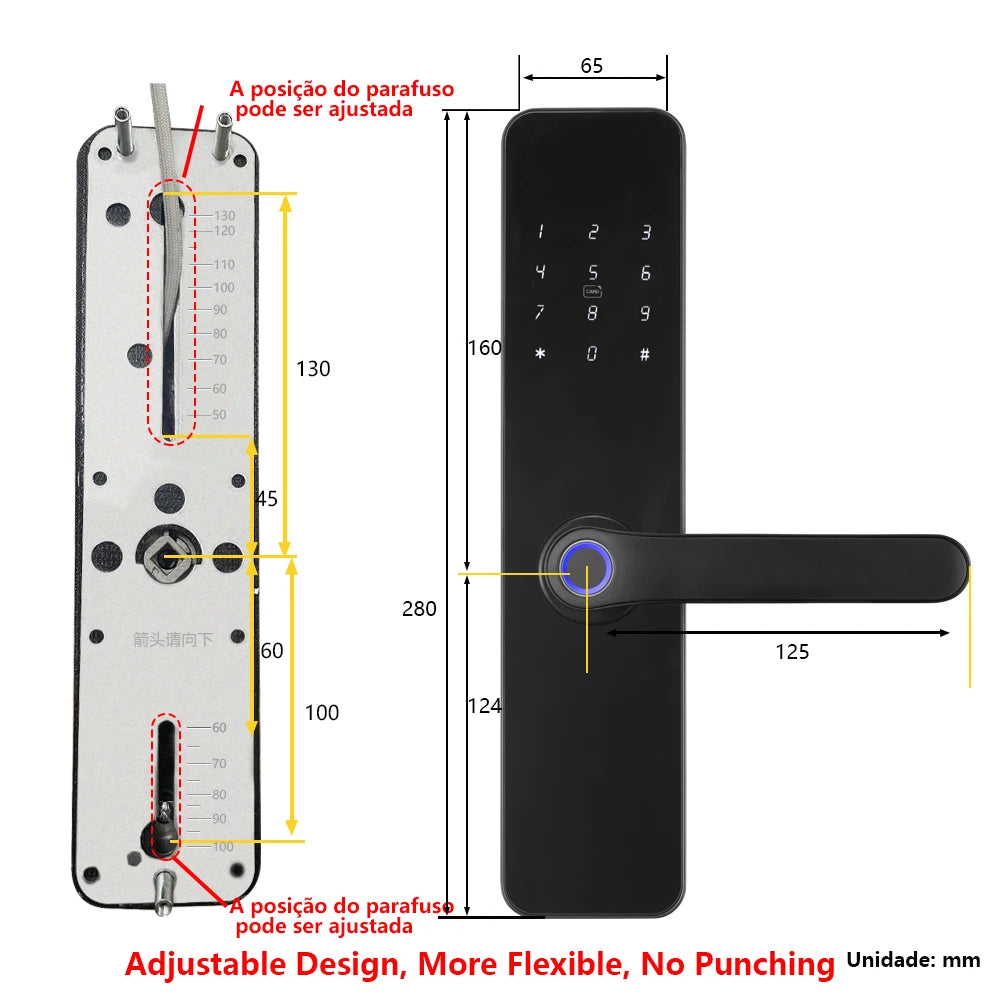

F7 is with Longer and Larger Handle Panels than the other ordinary lock, which can cover the door holes left by the old lock.The connecting rod screw on the back of lock F7 is adjustable, more flexible installation and no punching

• Unlock methods: Tuya APP / Fingerprint / Password / Smart Card / Key Unlock

Tuya Wifi Version Supports 8 Language Voices free changing-over

System Voice: Arabic / English / Indonesian / Portuguese / Russian / Spanish / Thai / Vietnamese

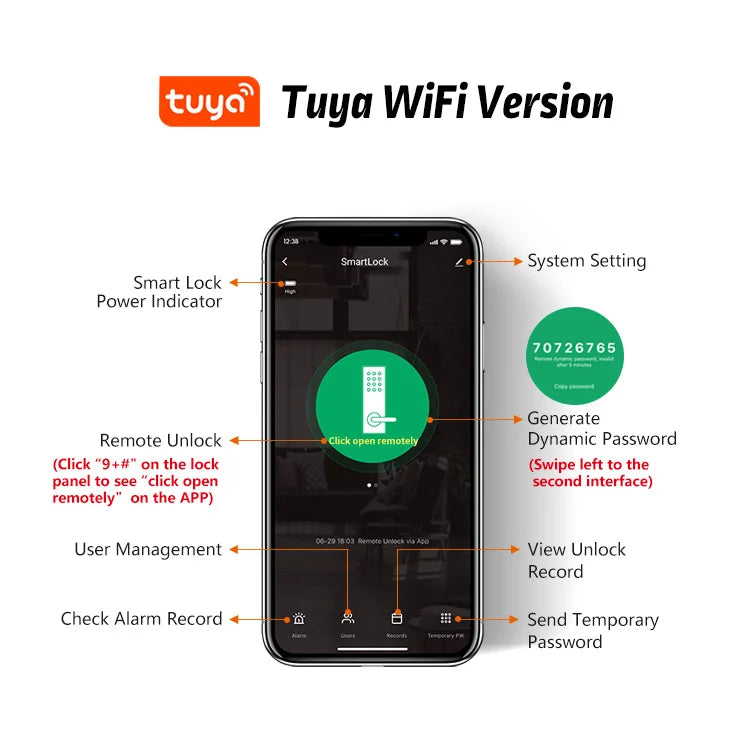

Tuya WiFi Version--About Tuya APP

1.Connect to the wifi direct, not need any gateway;
2.Unlock remotely by phone APP;
3.Get the unlock record when someone open the lock;
4.Make the temporary password / timed password in APP

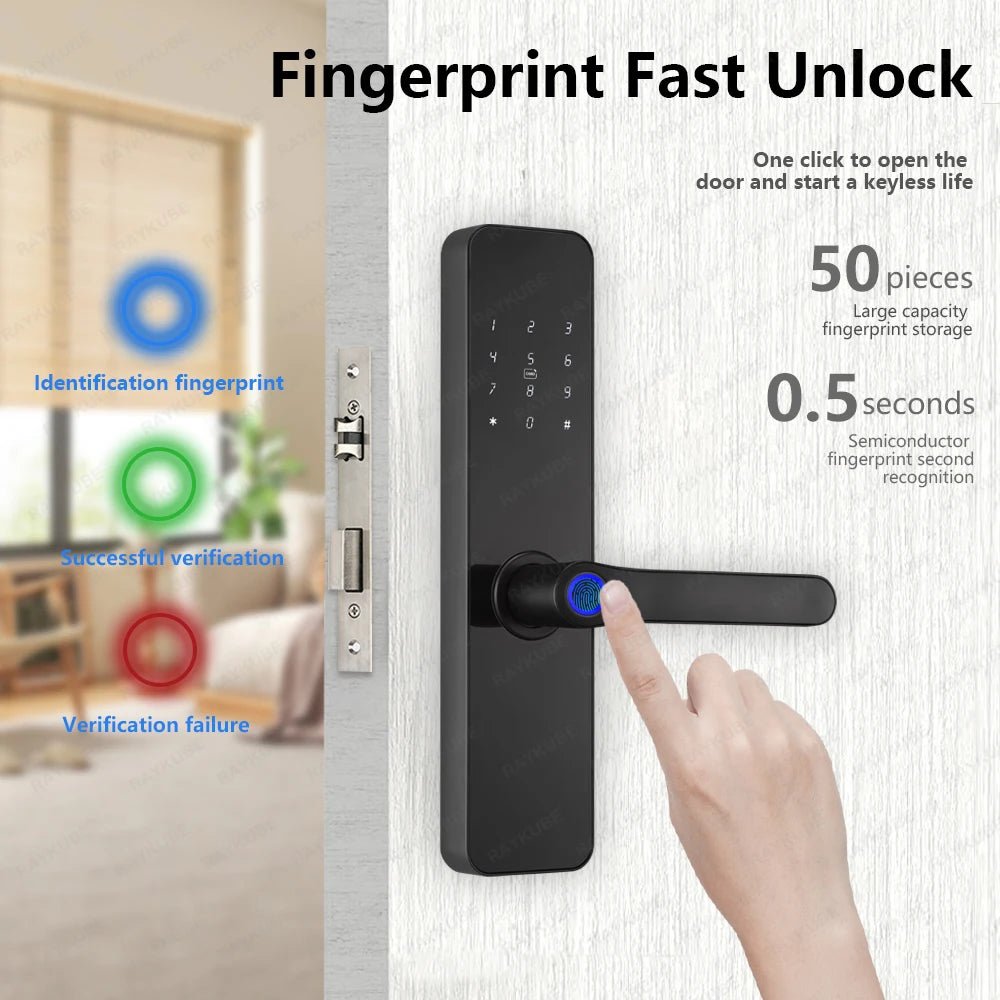

Fingerprint Fast Unlock

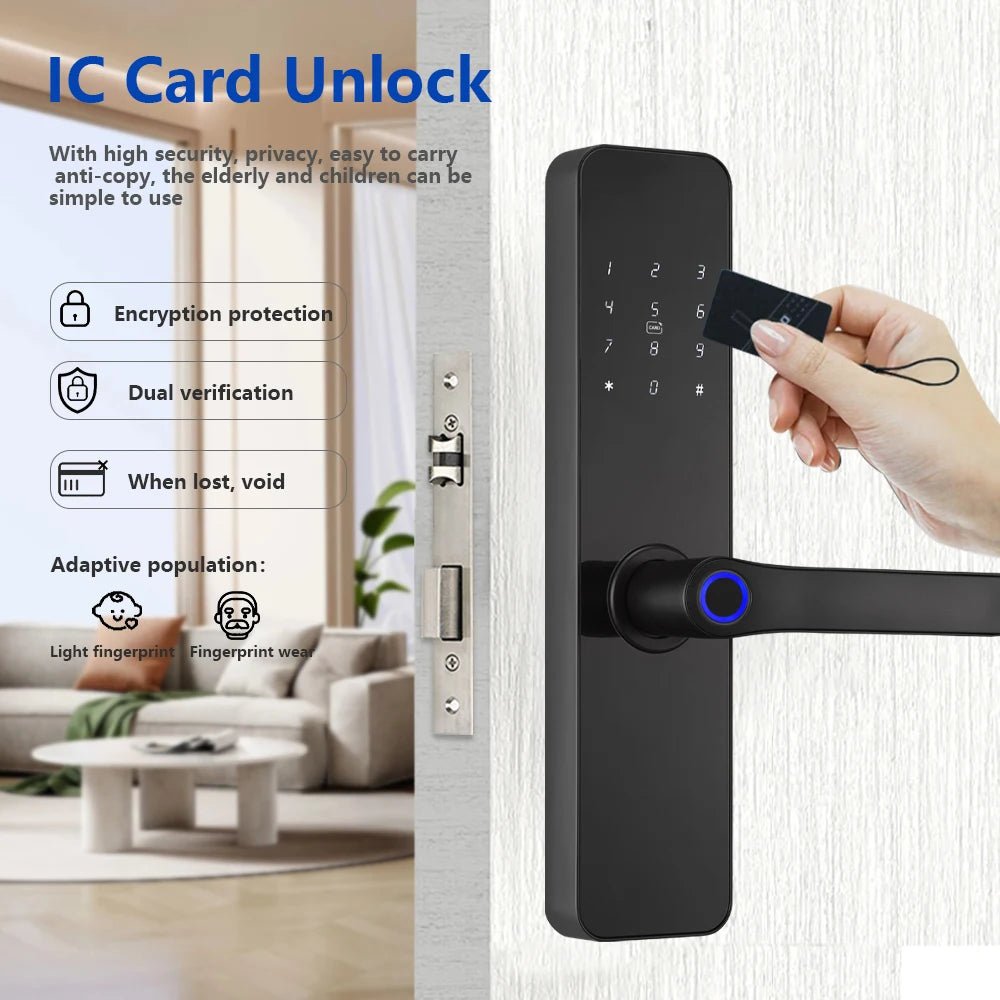

Encrypted Smart IC Card ，Easy to Use IC Card to Unlock The Door

The smart card core is copy proof and has high security. It is convenient for every member of the family to manage comfortably. If the card is lost, it can be deleted and invalidatedVirtual Password，Anti-peeping Unlock

Anti-peep virtual password, enter it casually, as long as one of them is correct. Safe and Reliable

Multiple Anti Test , Opening Alarm, Continuous Input Error, Automatic Locking

Multiple anti trial opening alarm, continuous wrong operation of password/fingerprint/ card, and the system will lock automatically

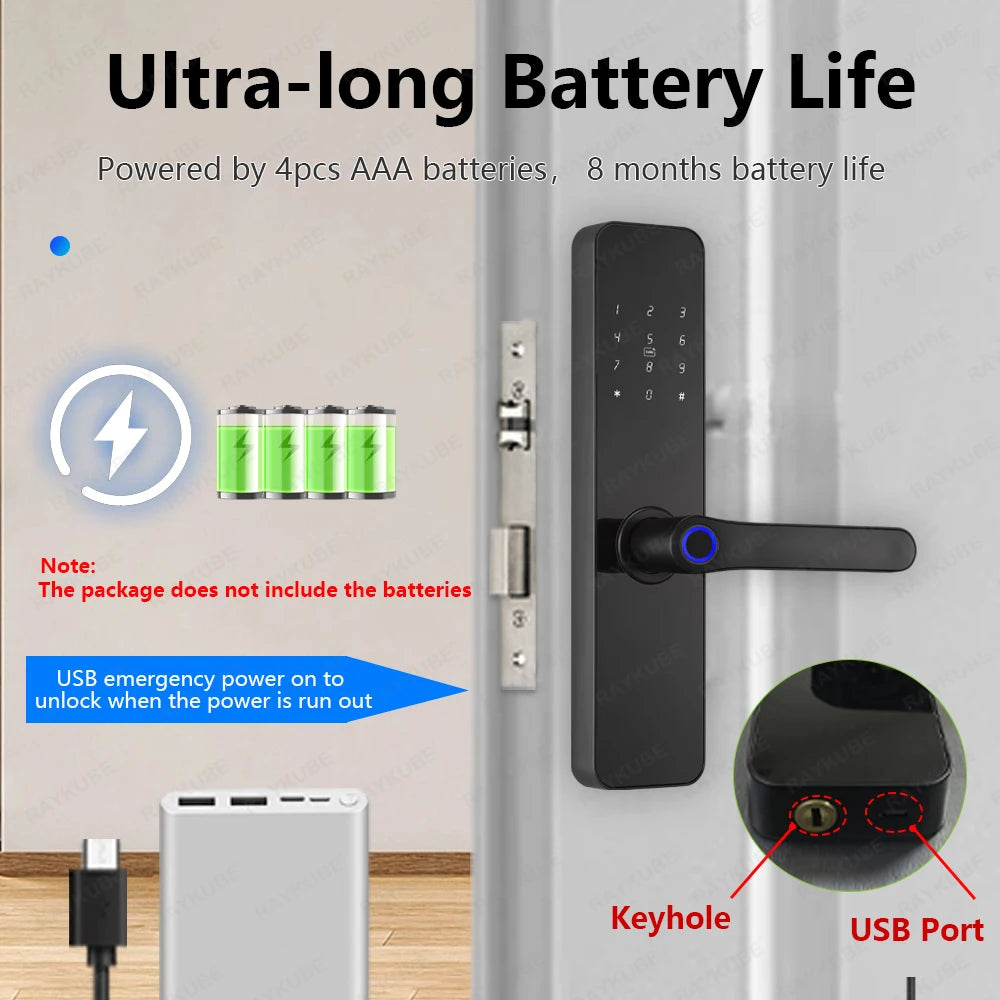

Use 4pcs AAA 1.5V Battery

Please use the not rechargeable Alkalin battery. (battery not include in the package)

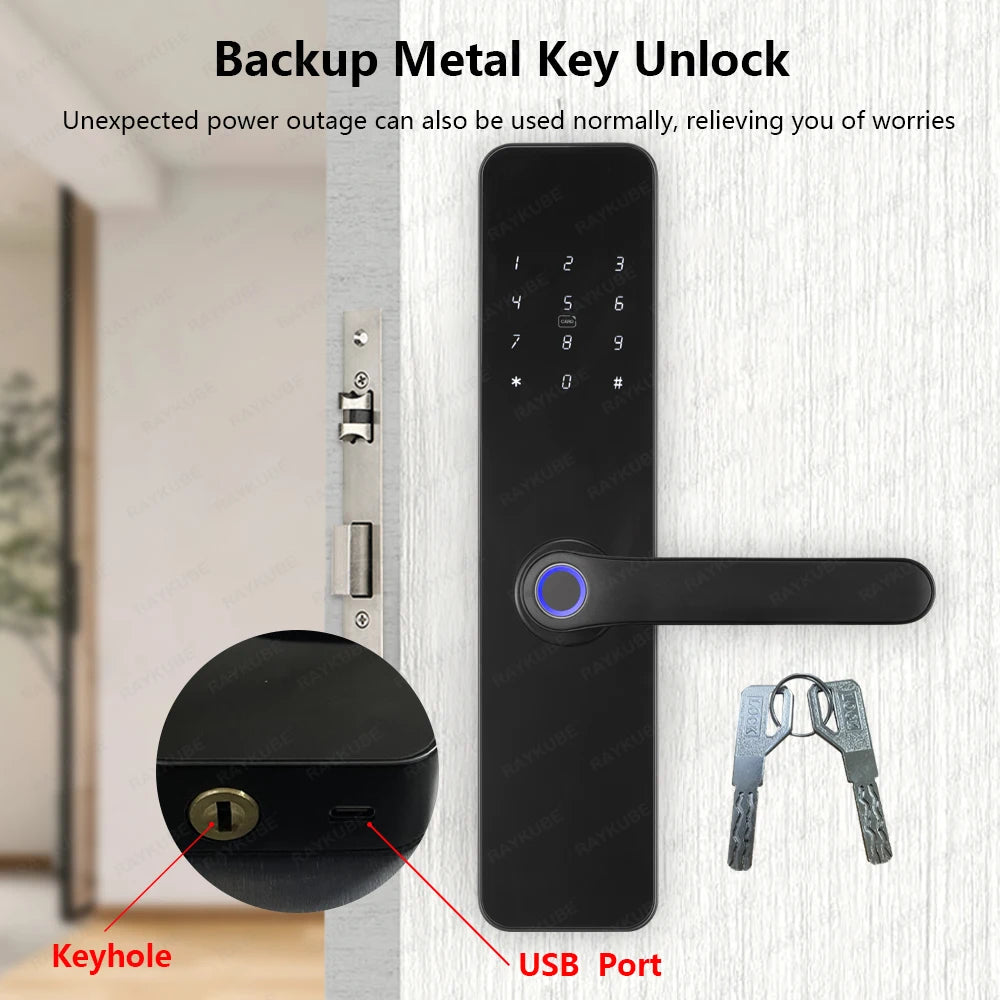

Not Afraid Of No Electricity；USB + Key Double Support

If the fingerprint lock has no power, it can be unlocked with mobile power supply or mechanical key

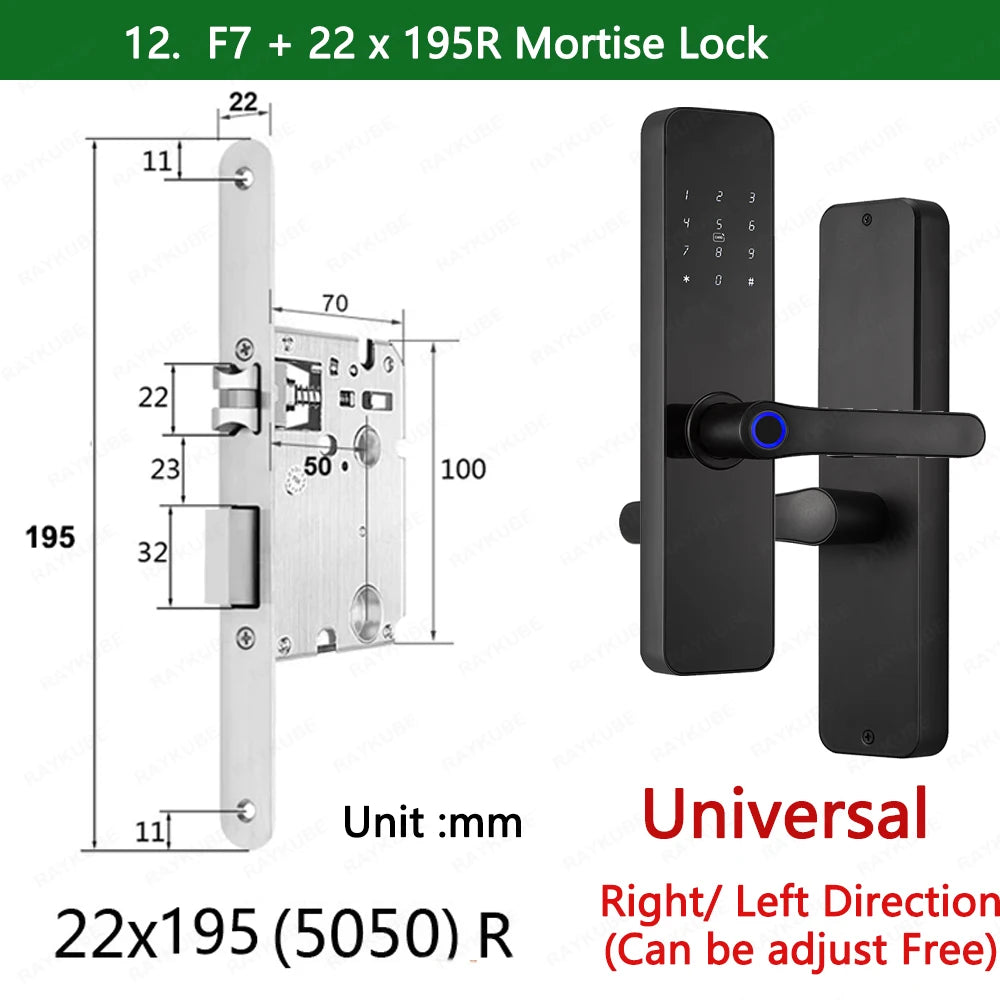

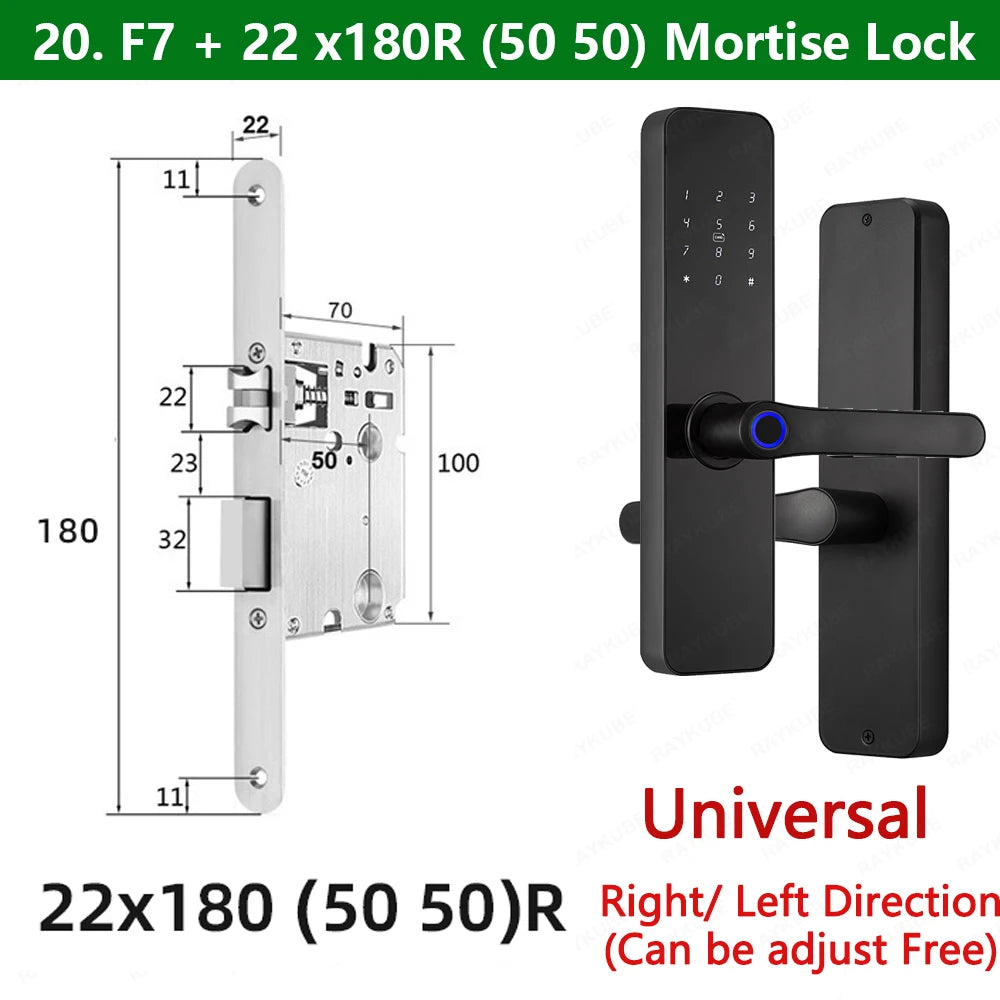

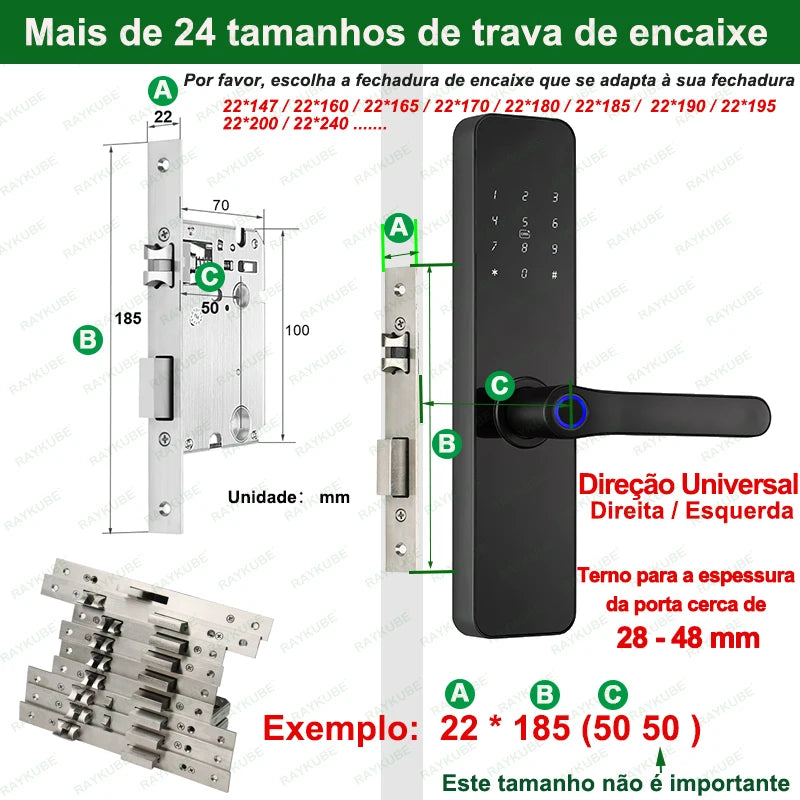

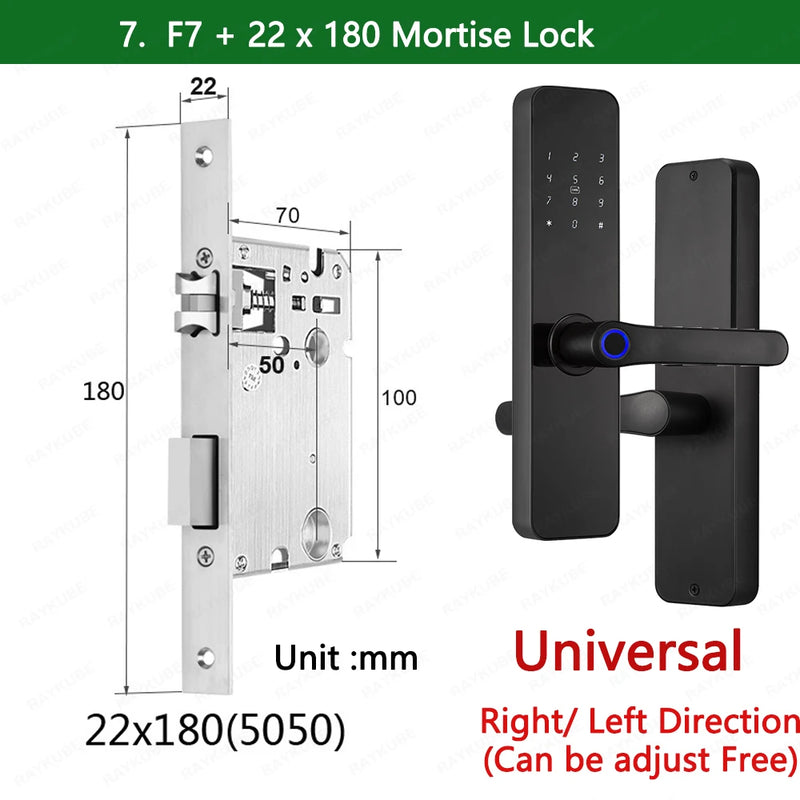

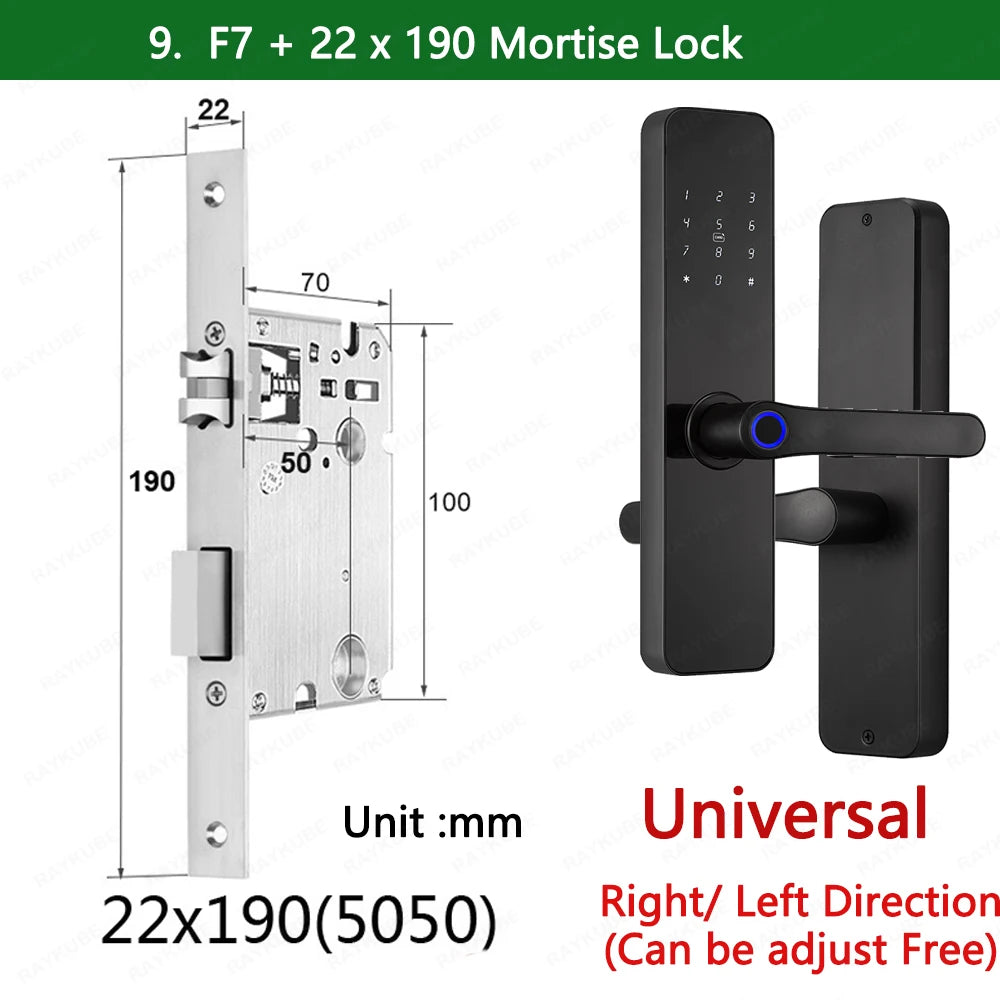

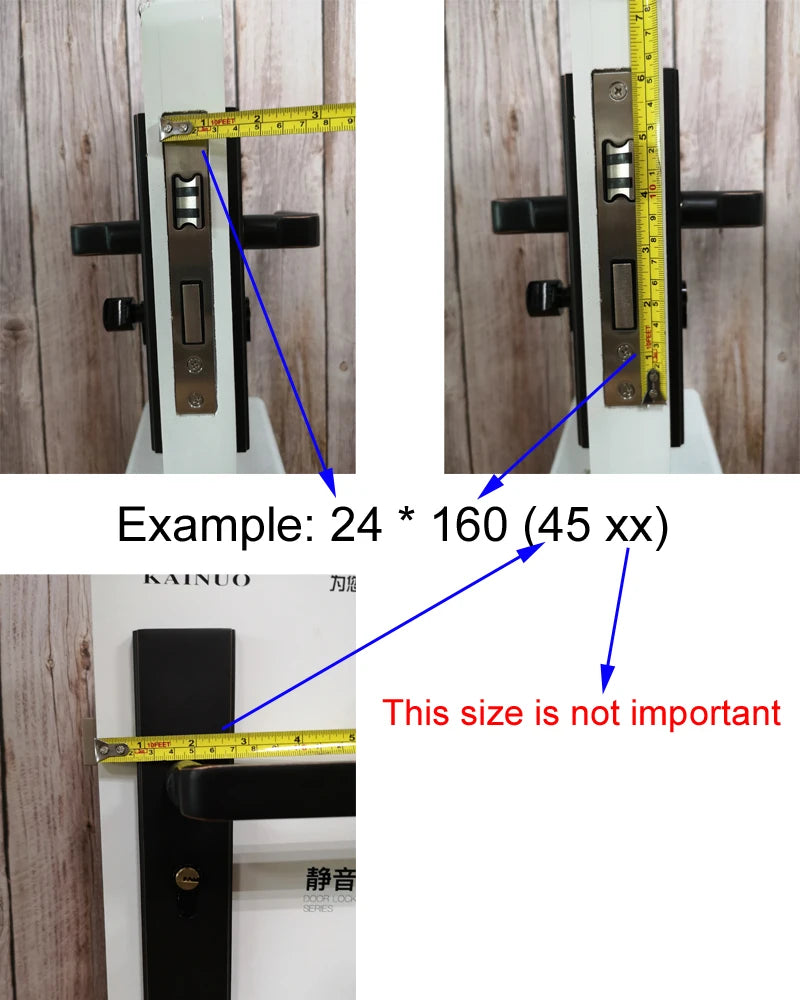

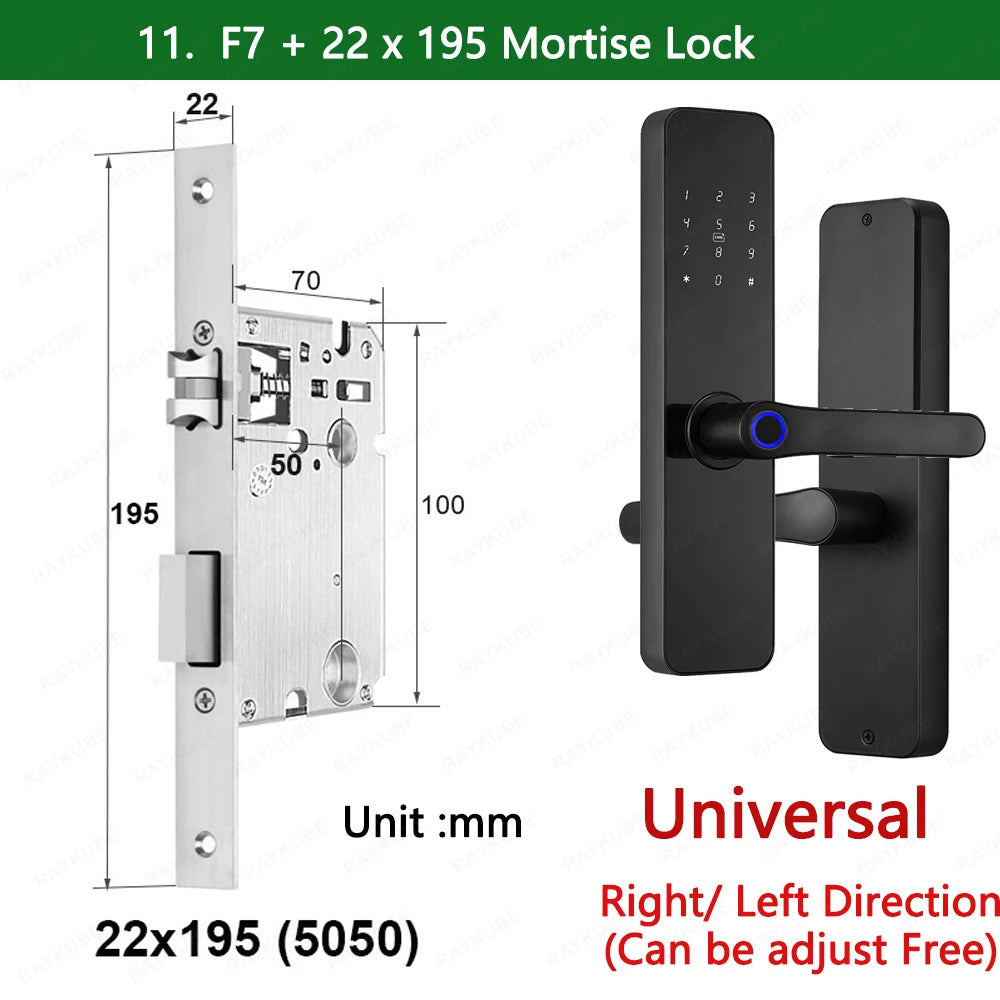

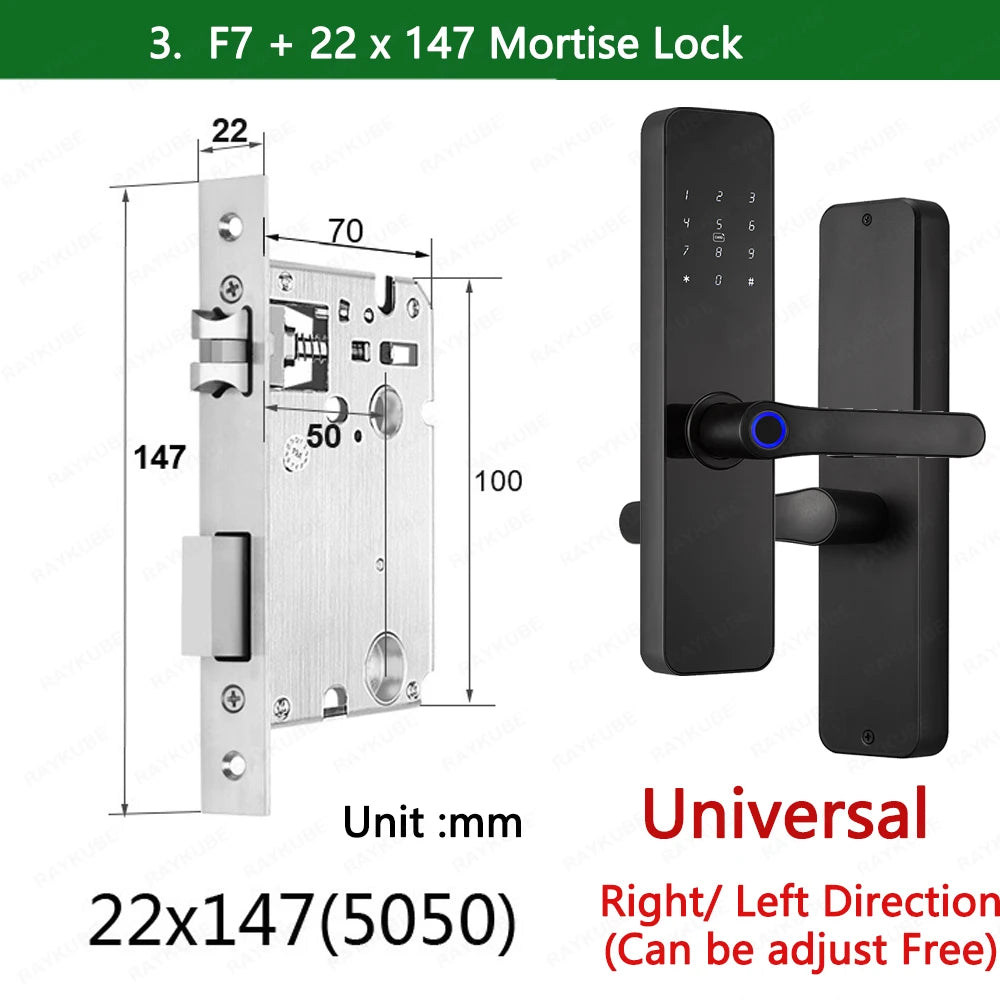

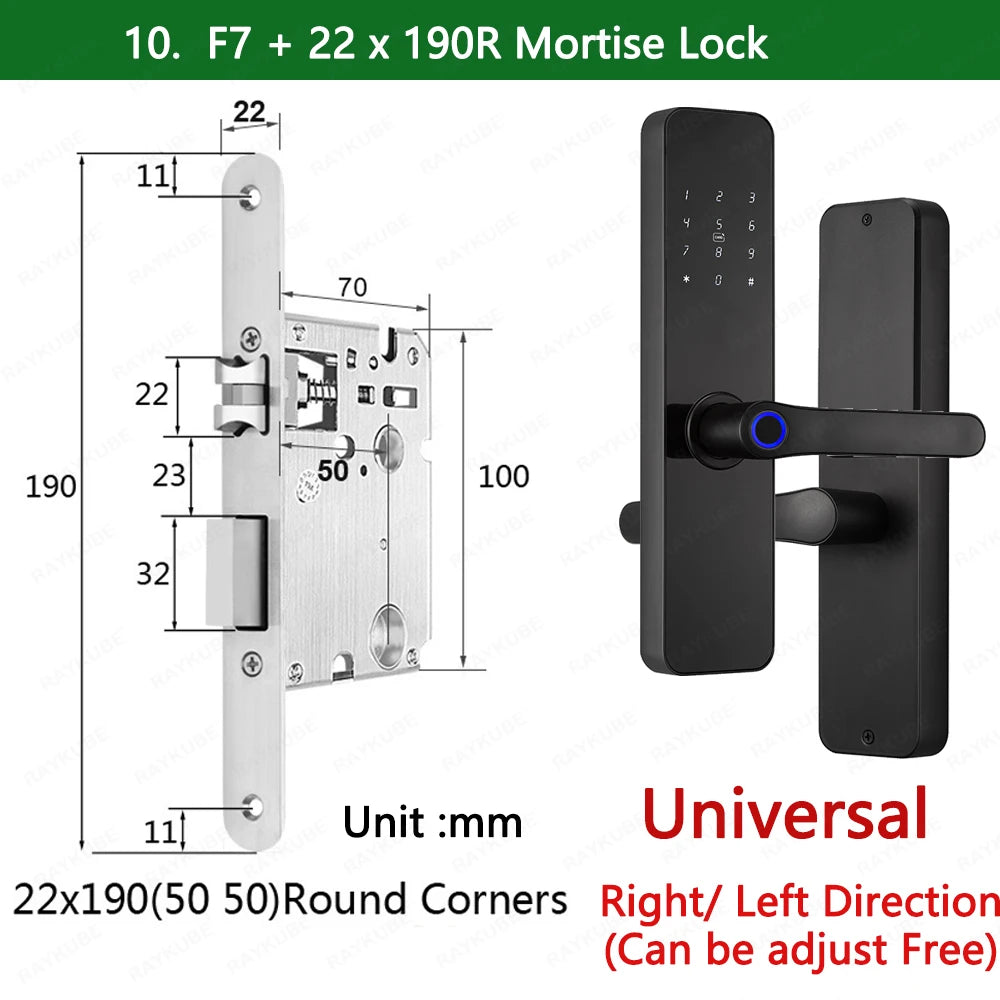

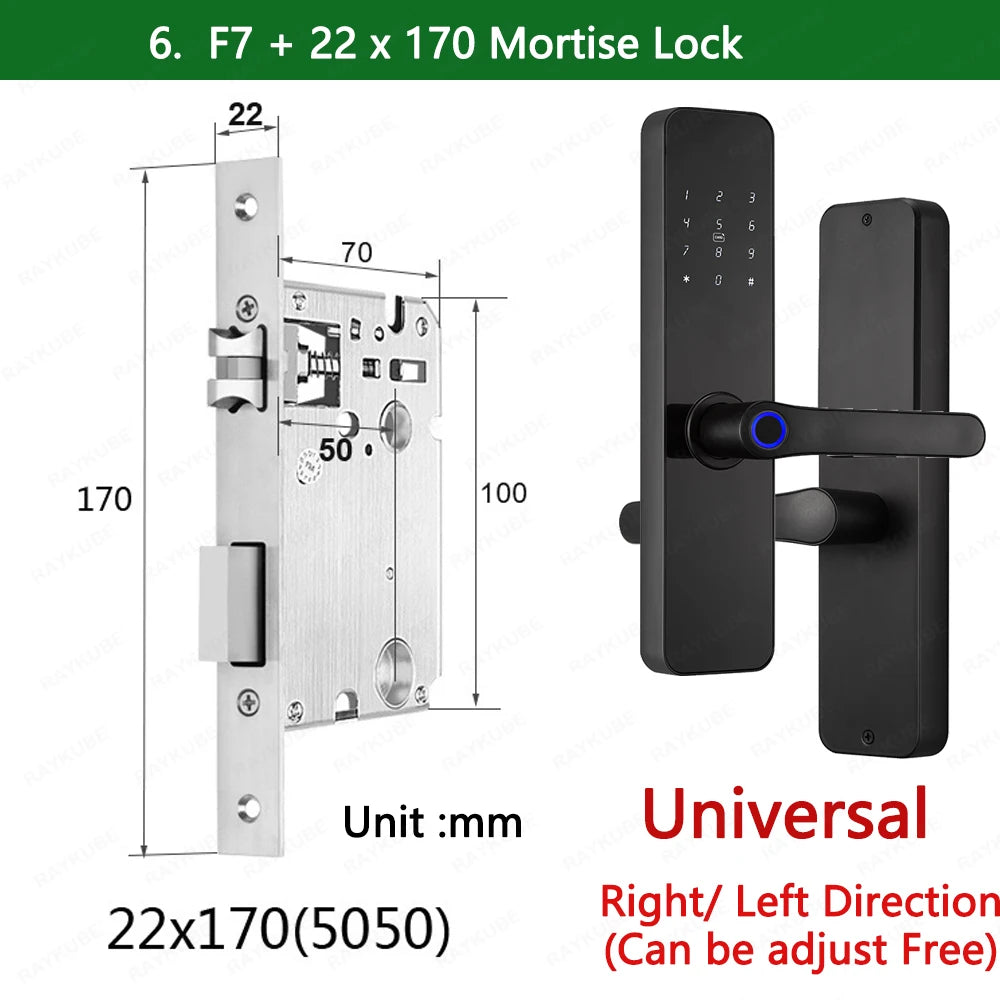

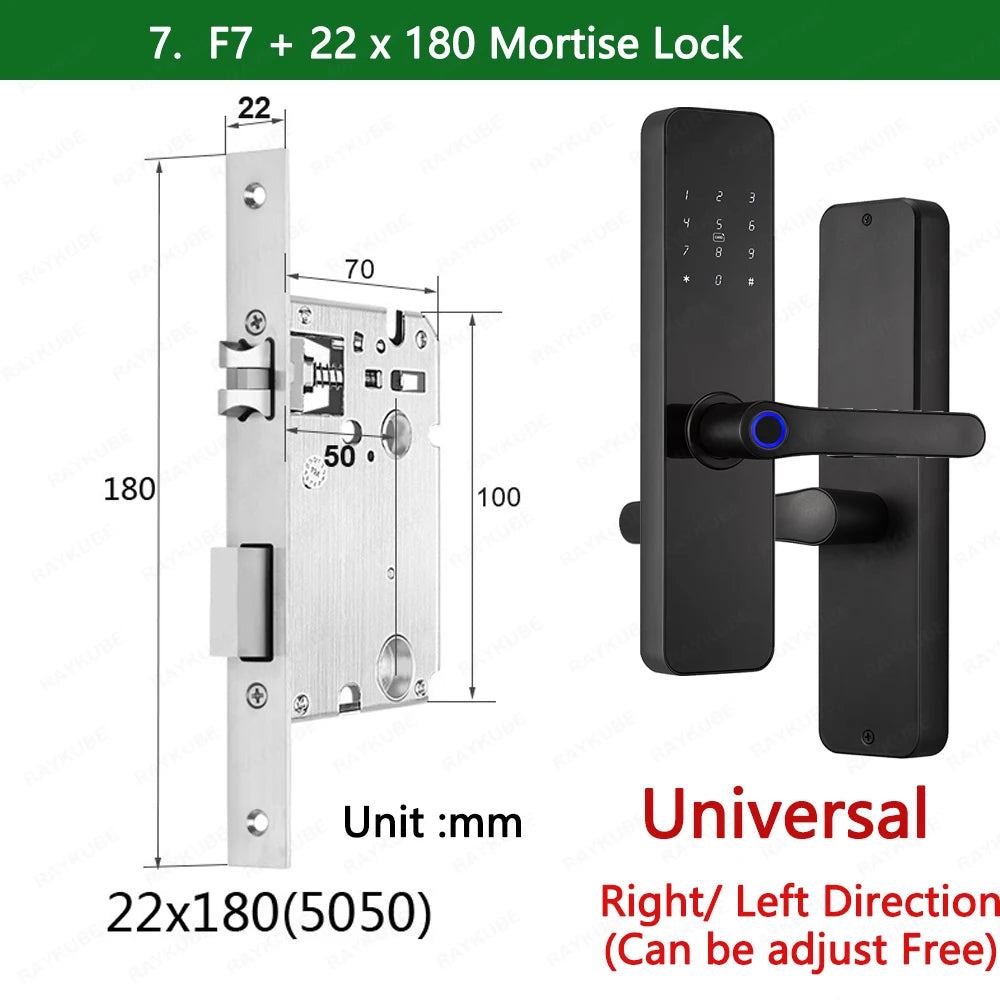

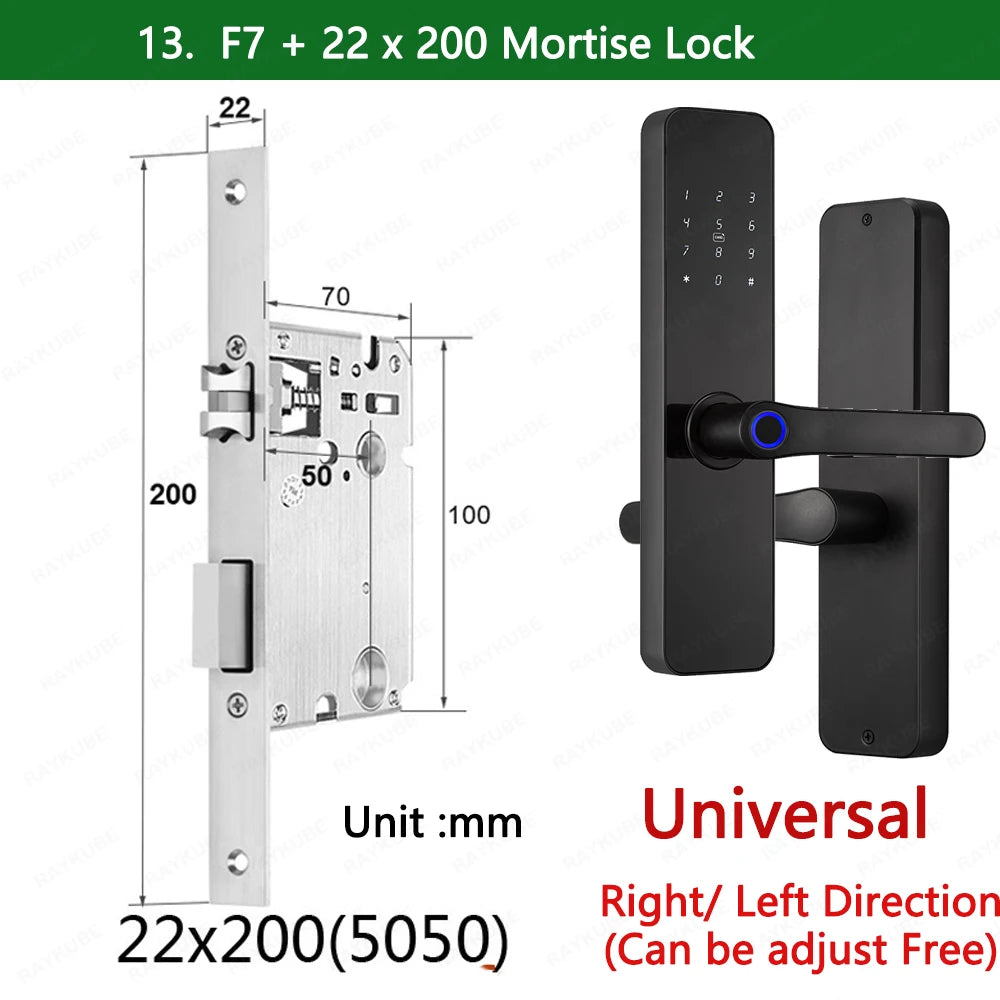

How to select the correct mortise lock size

We have over 24 different mortise lock size for choose, so please measure the old lock size follow this picture that you would know which size suit for your door. (once you select the correct size, you will very easy to replace the old lock)

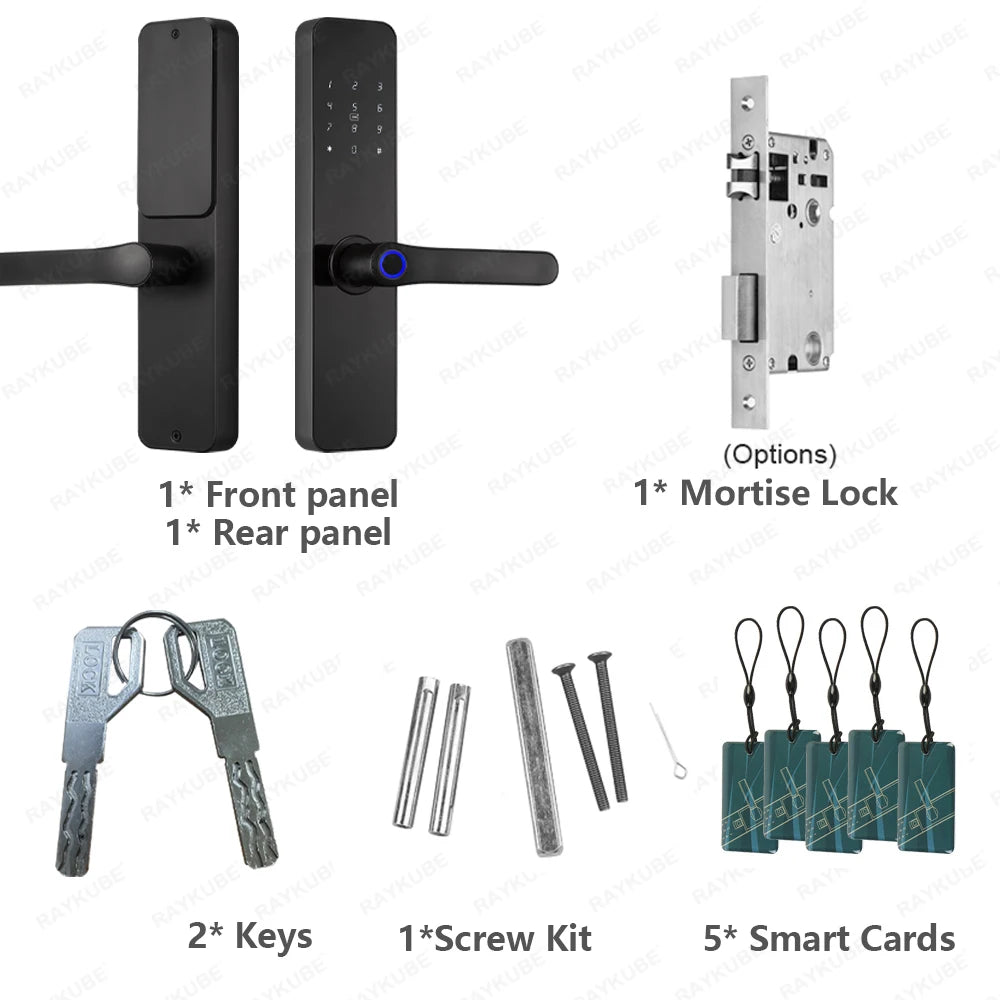

Item Include

• Front panel x 1

• Rear panel x 1

• Mortise lock x 1(options)

• Smart card x 5

• Mechanical Key x 2

• Screw Kit x 1
