SPECIFICATIONS

Alarm Type: FTP Photo,Email Photo,Local Alarm

Audio Compression Format: G711A

Audio Input: No

Audio Output: None

Backup Type: SD,USB Flash Divers,Hard Drive

Brand Name: smar

Certification: None

Communication Interface: RS232

Compression Format: H.264,H.265

Face Detection: Support

Hard Drive Size: 2.5''

Hard drive Interface Type: SATA,Support 2.5"SSD Interface(Not Include)

Hign-concerned Chemical: None

Humanoid Detection: Support

IP Mode: Static IP address

Motion Detectio: Support

NVR: Wireless NVR/Wired NVR

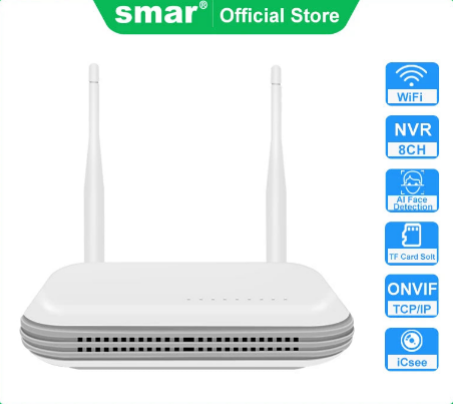

Name: WIFI NVR

Network Interface: RJ45 10/100M,WiFi

Network Protocol: SMTP,FTP,HTTP,DHCP,DNS,TCP/IP,DDNS

ONVIF: Support

P2P: XMEYE APP

POE: None

Smart home platform: None

Supported Mobile Systems: iPhone OS,Android

Supported Operating Systems: Microsoft Windows 2000,Microsoft Windows ME,Microsoft Windows XP,Microsoft Windows Vista,Microsoft Windows 98,Microsoft Windows 7

TF Card Slot: Built-in TF Card Slot

Technology: Network

Two-way Audio: No

Video Input: 8 Channel

Video Input Interface: VGA

Video Resolution: 3MP,4MP,960P,720p,1080p,5MP

Video Standard: NTSC,PAL

WiFi: 2.4GHZ

Wireless Security: WPA2

e-Cloud(P2P): Yes



nvr wifi icsee,wifi nvr,nvr icsee ip wifi,nvr,nvr para cameras ip,nvr wifi onvif,nvr wifi,nvr wi fi,placa nvr,onvif,besder,

camera wifi icsee

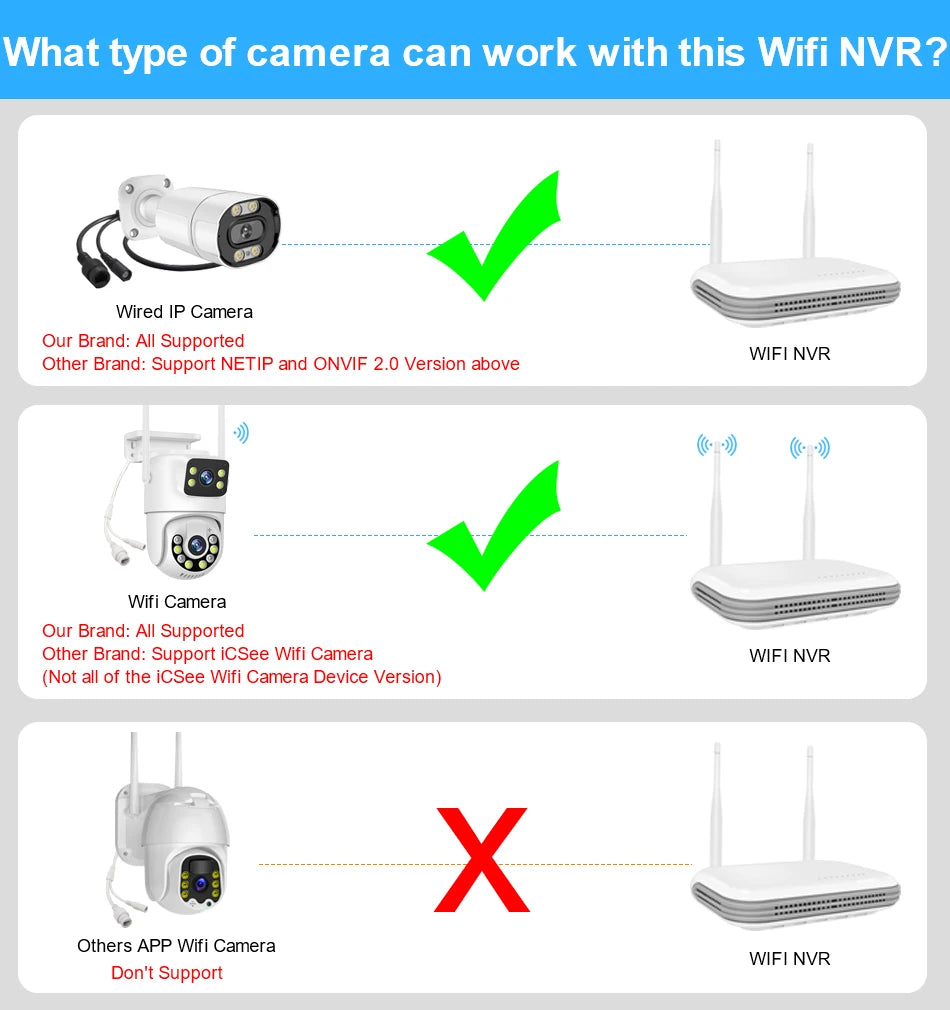

What type of camera can work with this Wifi NVR?



1: Wired IP camera

(1) Our Brand: All Supported.

(2) Other Brand: Support NETIP and ONVIF Protocol (2.0 or 2.0 Version above)



2: Wifi Camera

(1) Our Brand: All Supported.

(2) Other Brand: Support ICSee APP Wifi Camera (Not all of the ICSee APP Versions)

Note: If you are using other Brand of ICSee Wifi Camera,Please confirm the ICSee Wifi Camera Device Version with us before placing an order.

3: Other APP Wifi Camera

We are not sure if it can be connected for use, Please purchase with caution;

If your Wifi Camera supports the ONVIF Protocol, Please use an RJ45 Cable connection as it may work.

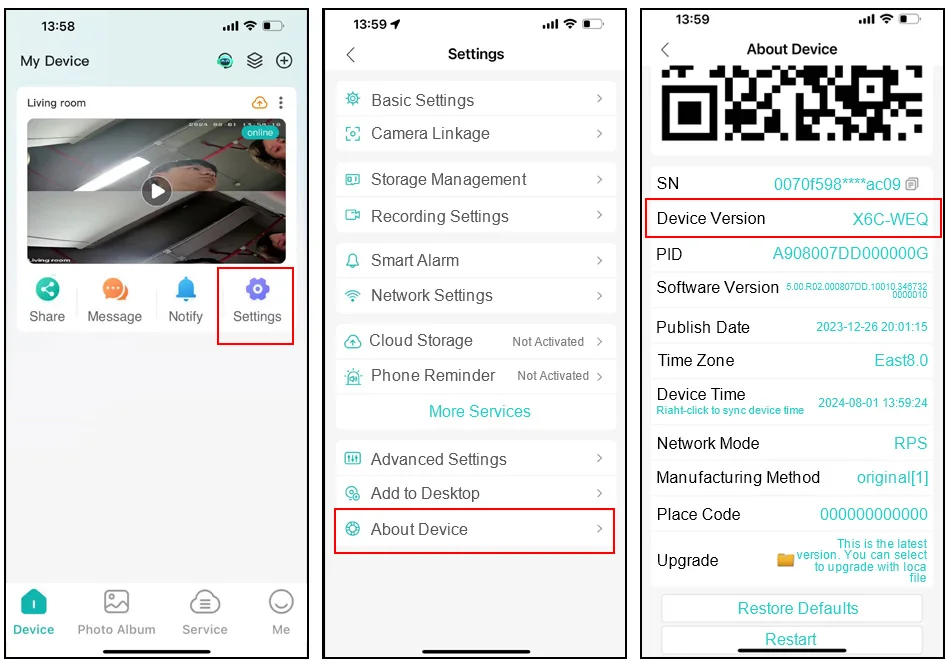

How to find the device version of ICSee Wifi Camera? Please refer to the following picture:

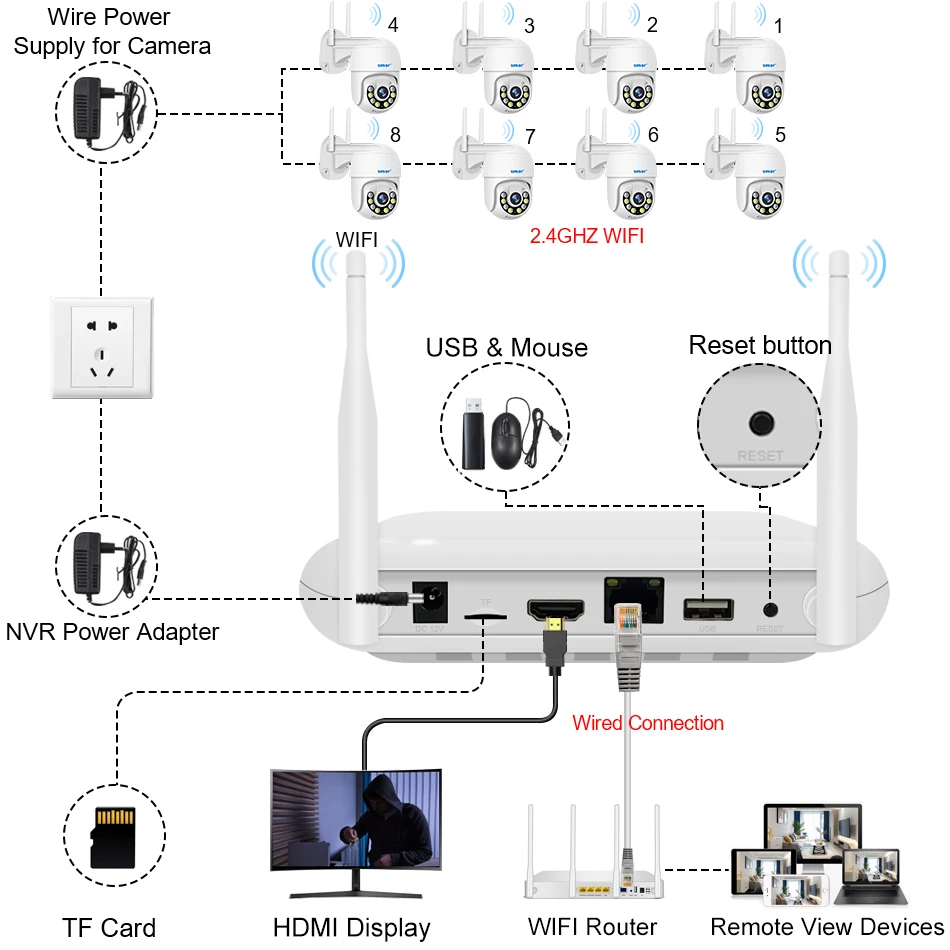

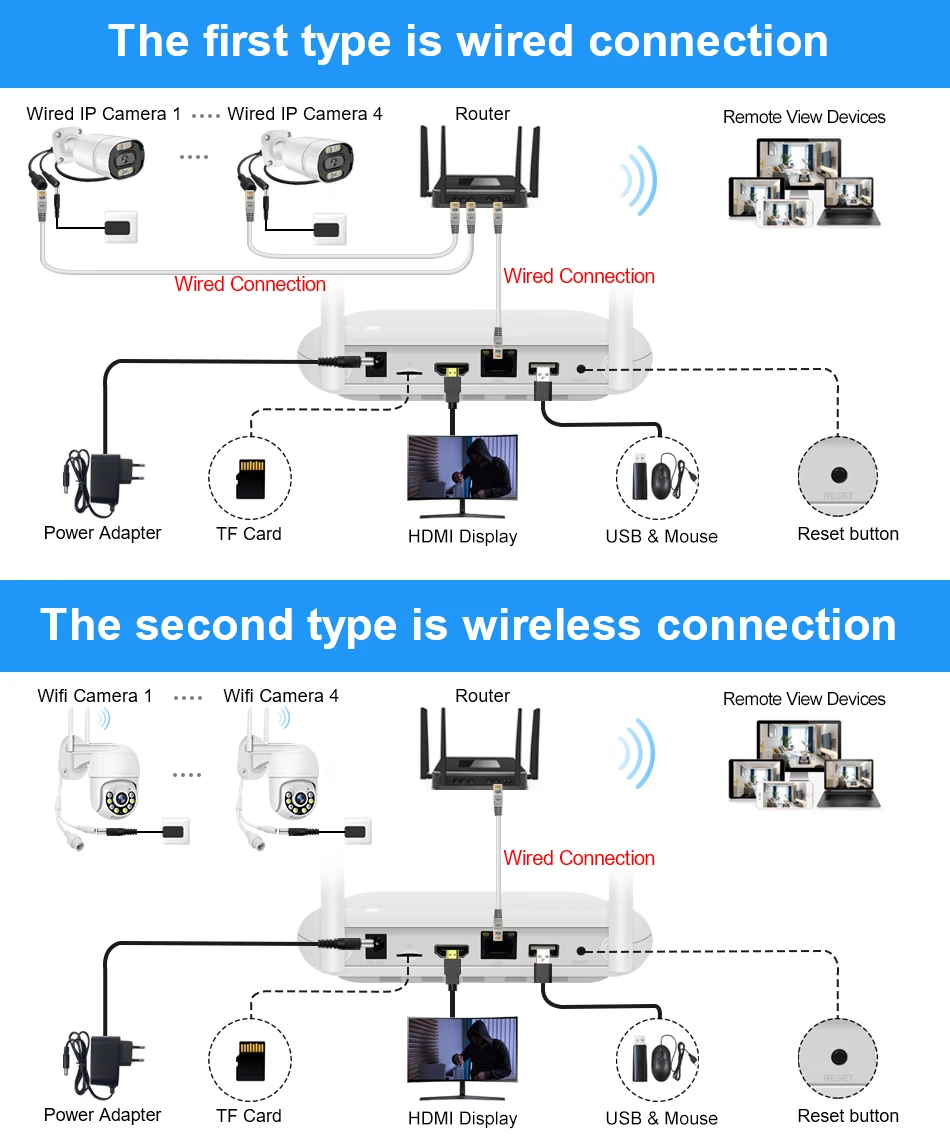

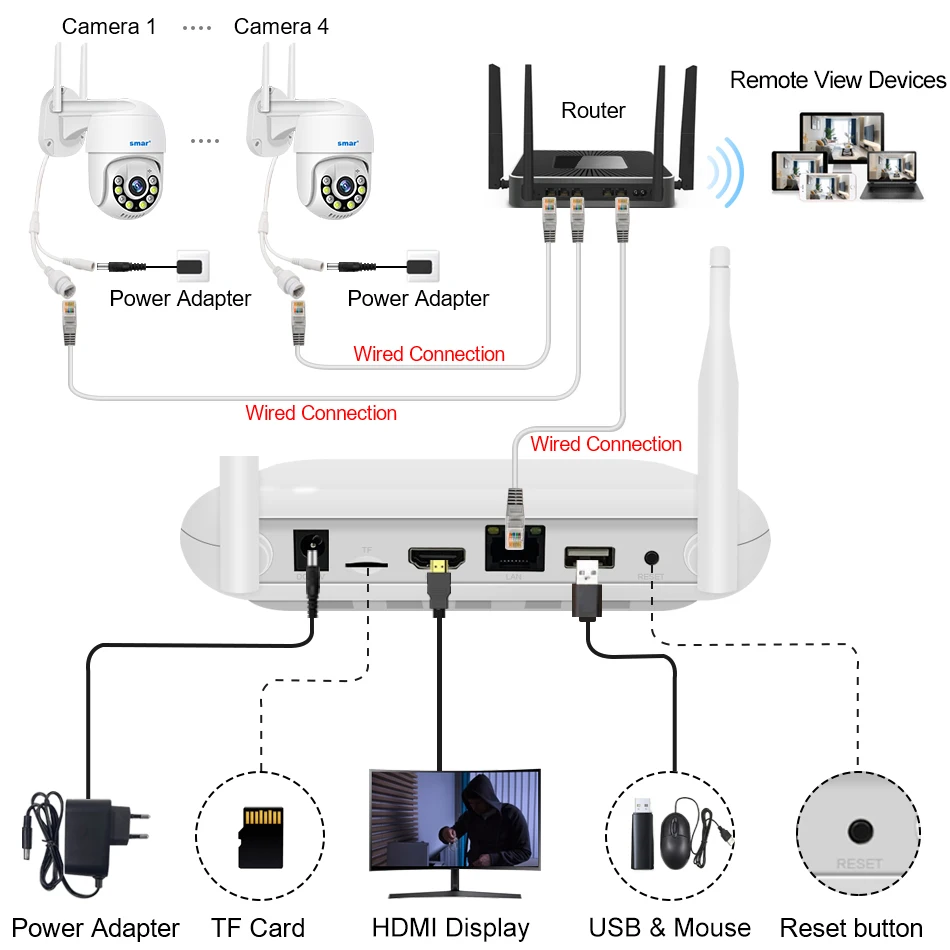

Wired IP Camera/Wifi Camera connection, Please refer to the schematic diagram:

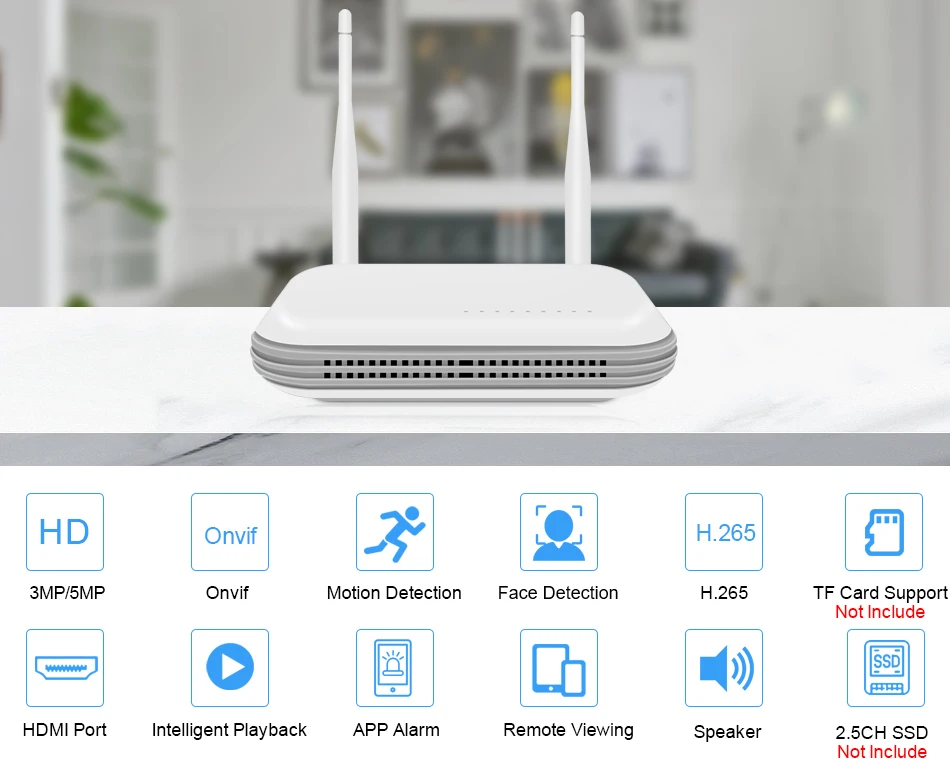

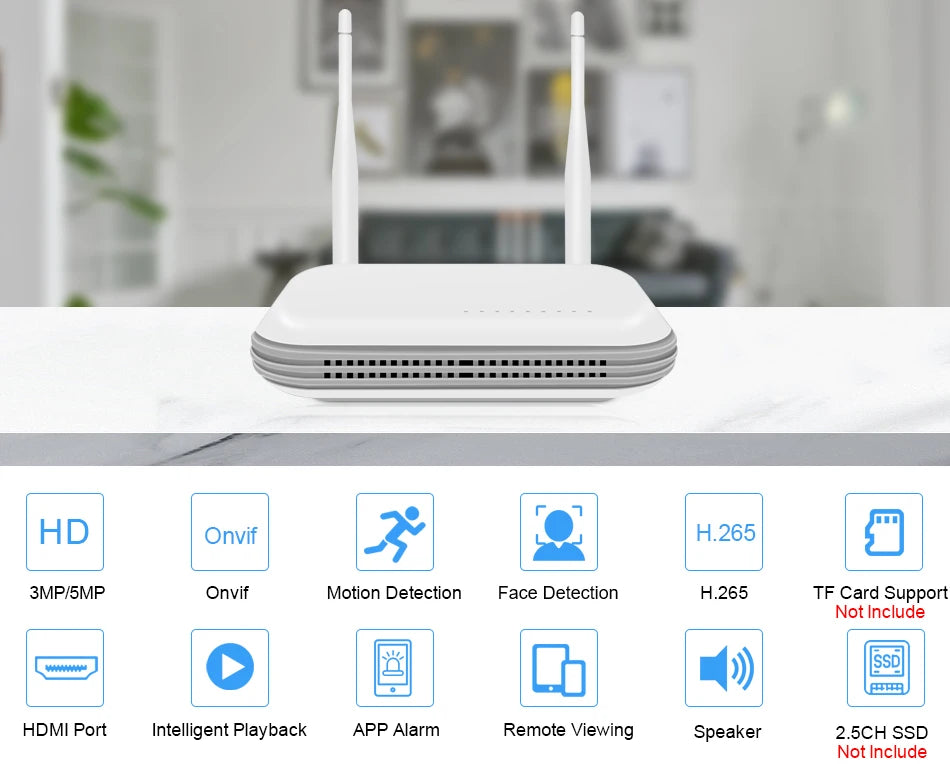

Feature:

1. This Mini NVR suppor 3MP/5MP Wireless IP Camera, Support 8MP 4K IP Camera;
2. Support human form detection and face detection;
3. Support h.265ai / h.265 + (compatible with h.265 / H.264) video compression technology;
4. Support onvif protocol and access to third-party backend / platform;
5. Support Wifi / Wired IP Camera, built-in Micro SD card slot,Support SSD port, maximum support 128GB Micro SD card and 8TB 2.5“HDD (optional at the time of purchase)
6. Supports 7x24 hours loop recording, motion detection recording, and other recording modes, you can playback the recording to view;
7. Support web side, CMS, central management platform software XMEYE;
8. Supprt Cloud technology,Realize network penetration, front and rear end docking, and push alarm information to mobile phones



	Model	8CH
System	Processor	Mstar
	System	Embedded Linux
Video	Video input	8ch3M/4ch5M
	Playback	8ch3M/4ch5M
	Decode	H.265AI/H.265+(compatible H.265/H.264)
Audio	Voice broadcast	Configure the alert tone
Management	Inquire mode	App
	Storage mode	2.5-inch hard disk storage. SD Storage, Cloud Storage
Wifi	Bands	2.4GHz
	Standard	IEEE802.11b/g/n
Interface	HDMI output	1*HDMI (MAX:1080P)
	SD	1*SD
	Ethernet port	1*RJ45 1*10/100/1000Mbps Ethernet port
	USB Port	1*USB2.0 ports
General	Temperature	0 ℃ - + 55 ℃
	Humidity	10% -90% RH
	Power supply	DC12V
	Consumption	<5W
	Weight	Around 120g
	Dimension	171mm(L)* 136mm(W)* 37mm(H)

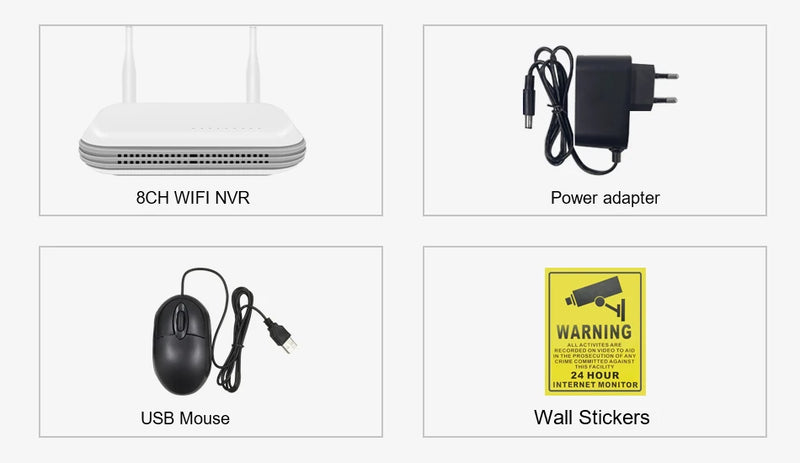

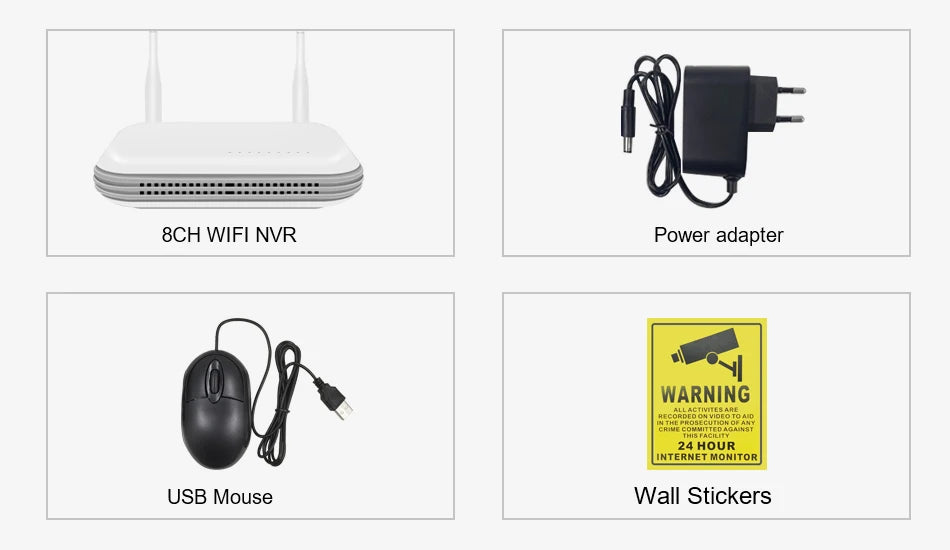

Packing List

1* 8CH WIFI NVR
1* Power Adapter
1* USB Mouse

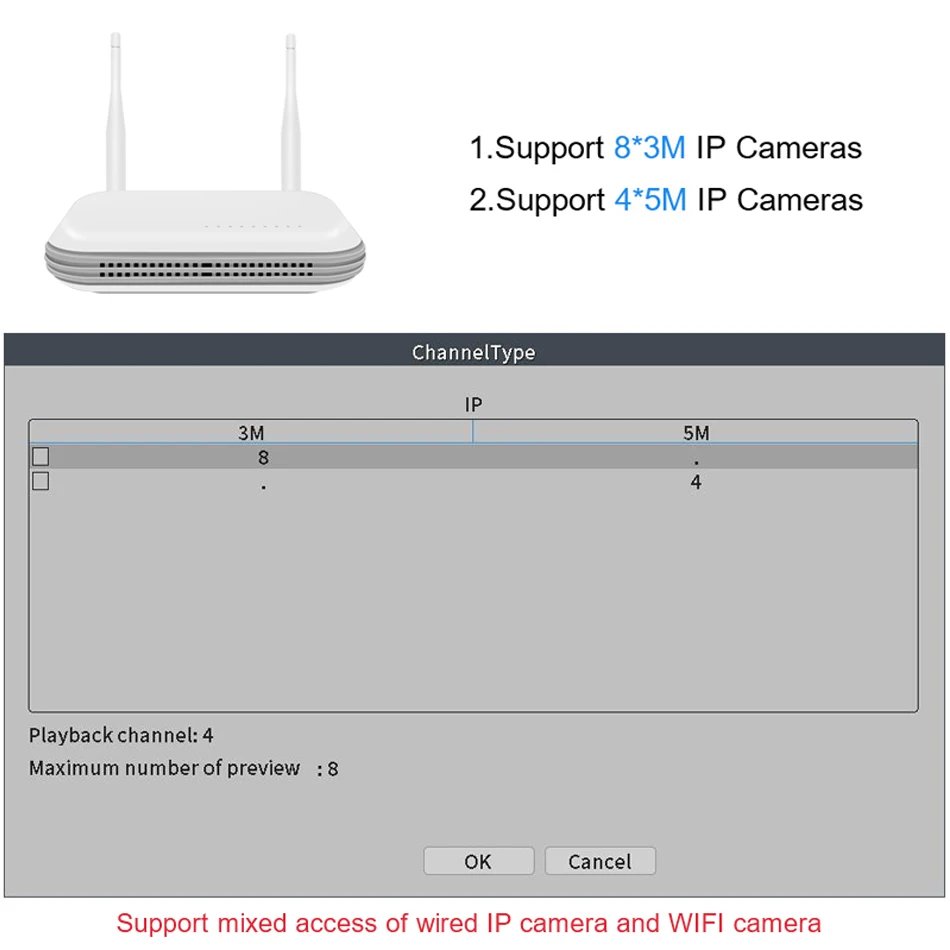

ChannelType of 8CH

1. Max support 8*3MP IP Camera,or 4*5MP IP Camera

2.Support mixed access of wired IP Camera and WIFI Camera;

3.Playback 4CH 5MP/ 8CH 3MP

4.If Your camera is Wird 4K camera, it will support.





Support Wifi camera (When you open the "IP Channel" or "Channel Set" menu, it will search camera AUTO)

Here wifi camera must ask us, if you can not sure weather Camera can work, Please send your camera Version image.

Please make order Before we confirm it work.

If your camera is wired IP camera support ONF or NETIP, it will work.

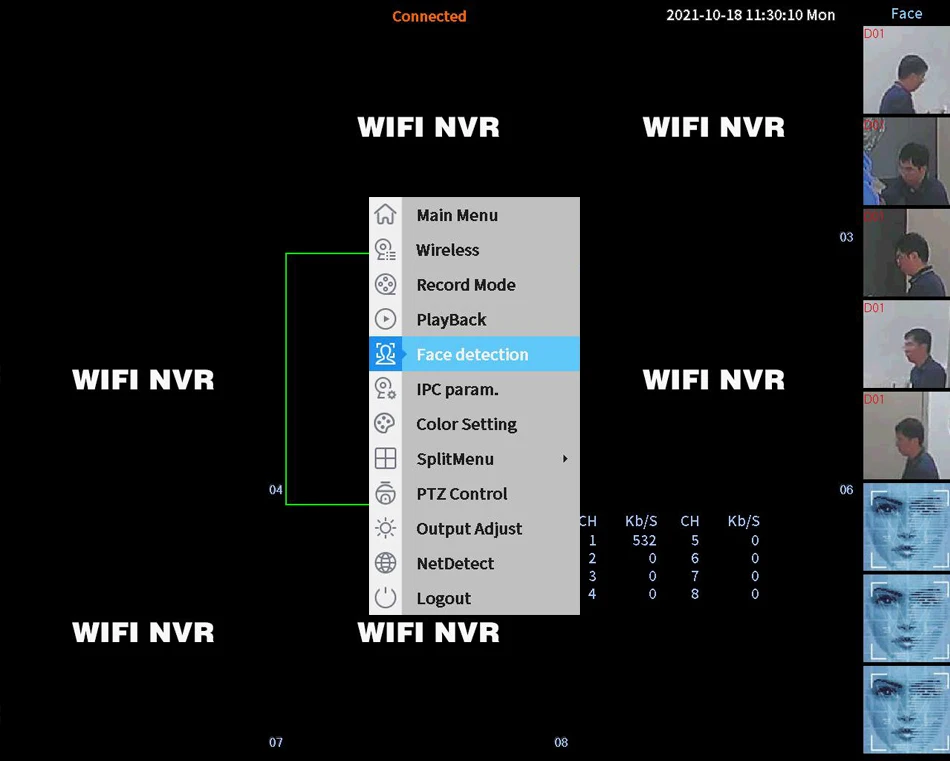

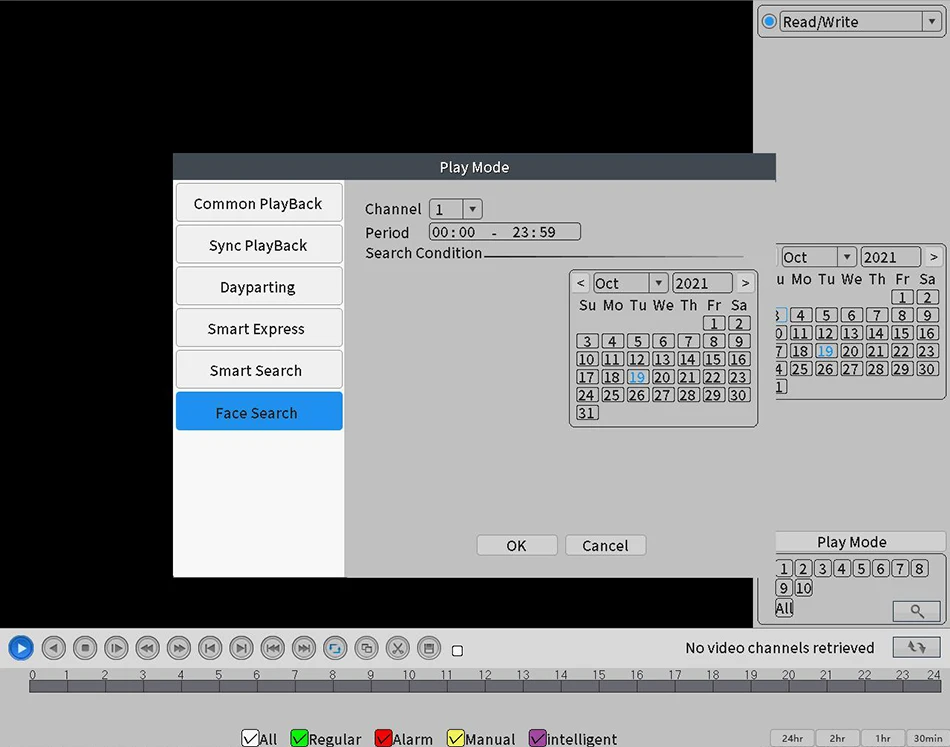

Smart AI Face Recognition/Face detection/face playbackace

AI face detection is more easy to catch the detail arround you . When someone invades, the "smar" security camera can clearly capture the details of the person's face and protect your property at all times.

(Your Camera Must support XM Face Detection, or will not work)



Alert area



AI Humanoid Motion Detection & Email Alert/Record

When motion is detected, the NVR can send email or start record to the hard disk without missing any important events.

(Note:(Your camera must support XM human detection, or will not work)

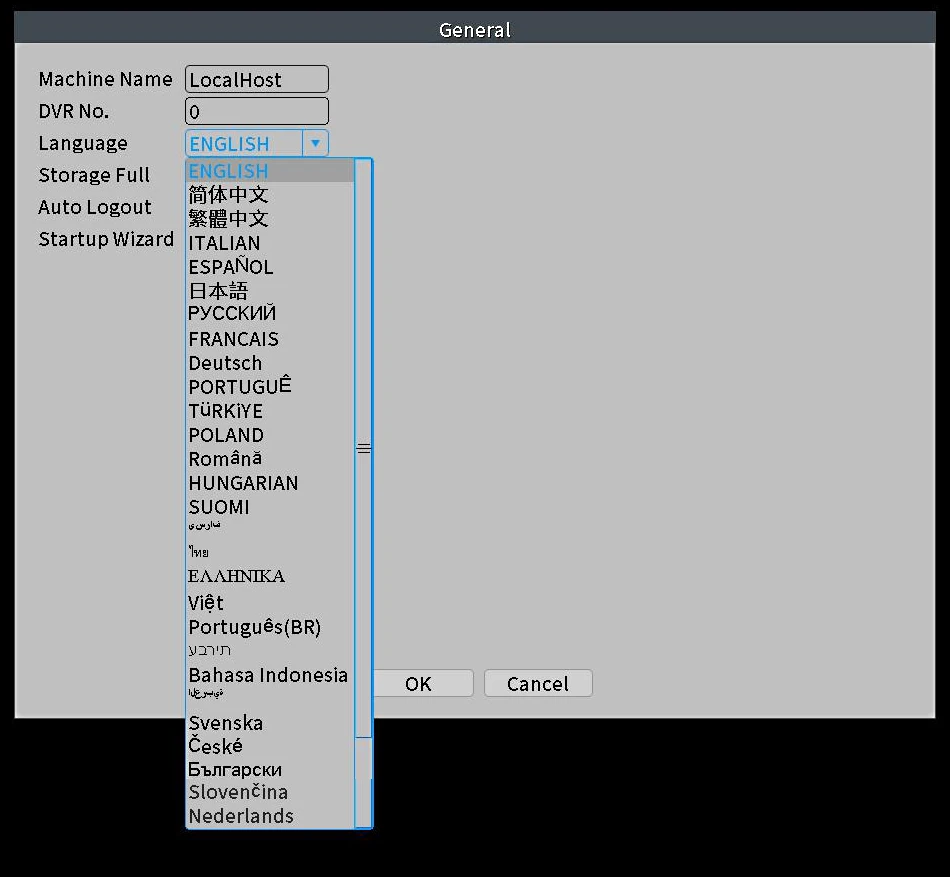

Multi Languages:

English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...Total 28 languages



Real Two Way Audio

Built-in microphone and speaker / Customized new speakers with loud volume .
You could talk to anyone nears the camera ( Warn someone to leave your house )

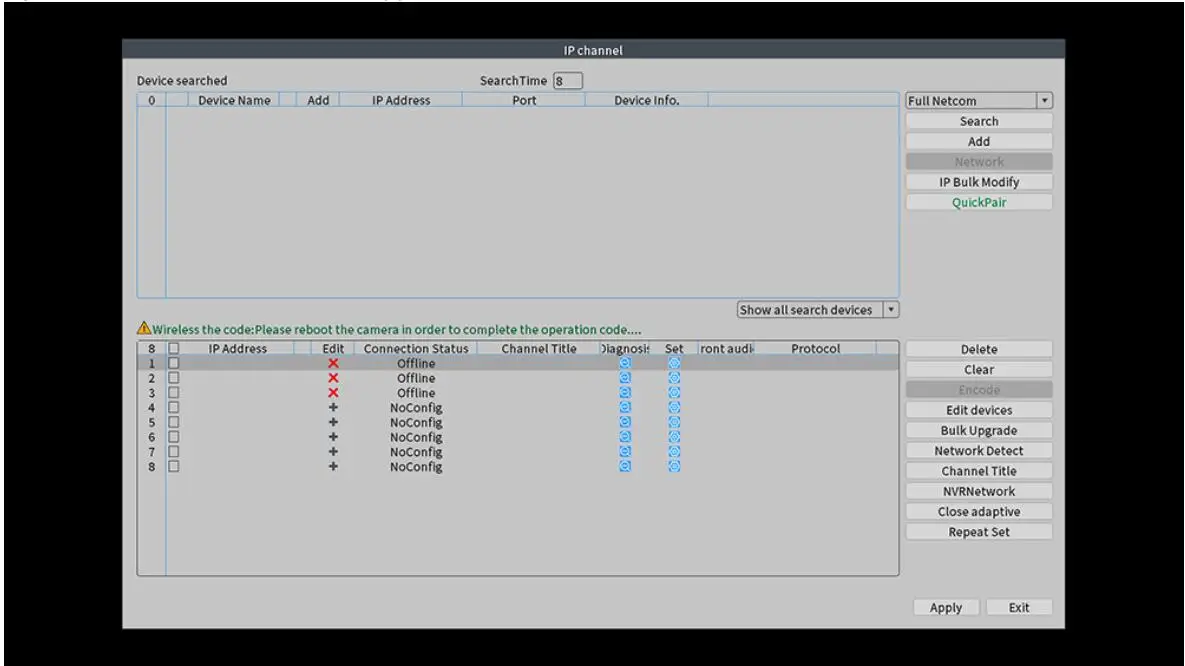

One click selection Wired or Wireless configuration, the operation is very easy and convenient,please check the screenshot as below:

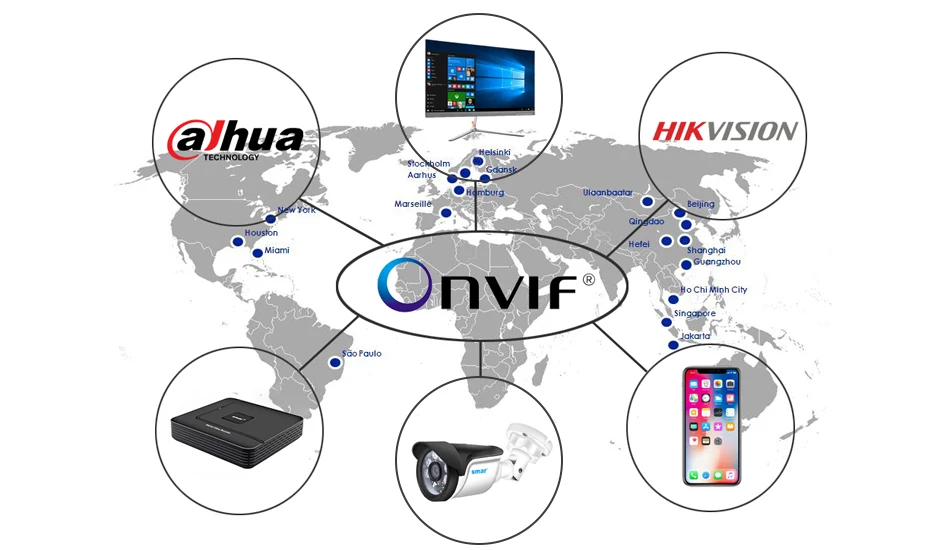

Support ONVIF

you can connect any brand's Onvif IP Cameras to our this NVR;

Reminder:

Smar's Video Recorder all support ONVIF and NETIP Protocol;
Netip: It is a Private protocol, only applicable to Network Video Products of XM Scheme；
Onvif: It is an international open network video product standard network interface protocol；
Onvif Advantages:
Onvif likes a communication bridge, It can implement multiple devices(IP Camera and Video Recorder) from different manufacturers connected to each other, mutual Communication.
Onvif Disadvantages:
The standards of onvif protocol are also different for video network products of different manufacturers;
So,Their communication with each other will cause some bad problems, such as: motion detection can not work normally; Audio and video can't be synchronized; Loss of video data, etc......

(Note: We recommend that when you buying the Network Video Recorder, also buying the IP Camera from our store, Because they have perfect private protocol between them, it can fully display products all of the functions.)

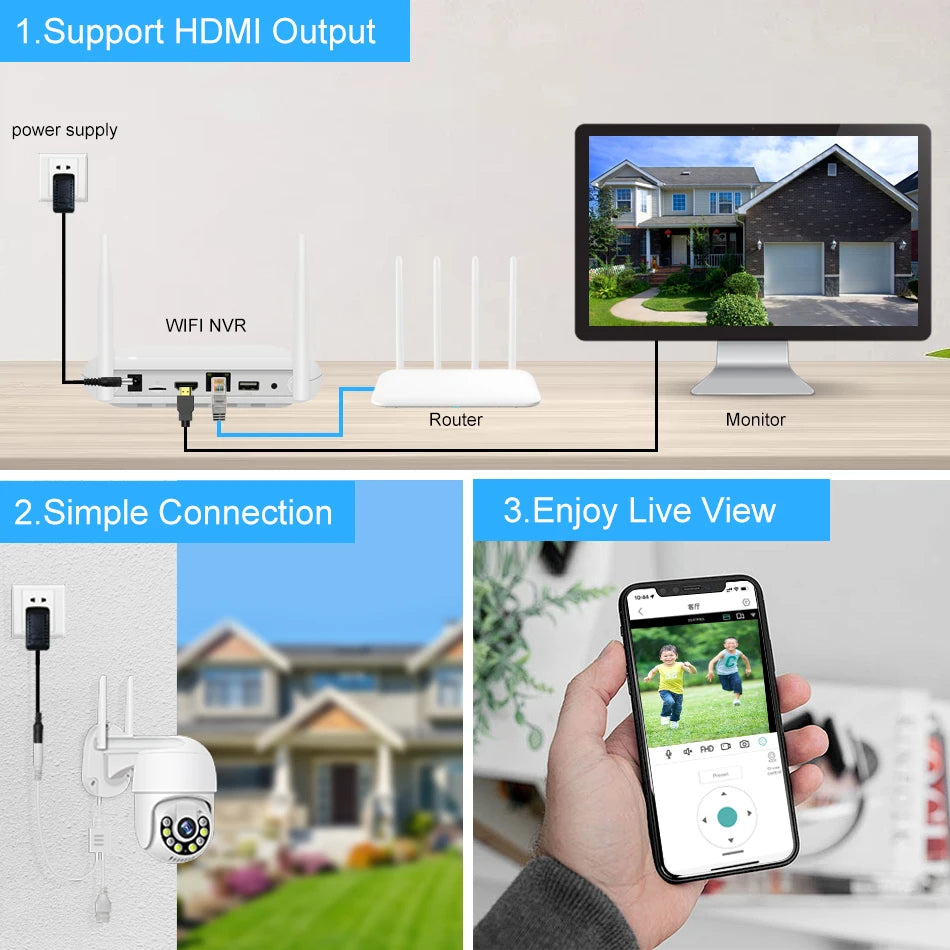

HDMI & VGA Output

Default Display of Resulution:1920*1080,Your monitor must be has the same display of Resolution, otherwise it will not image output



Easy access via multi-platform

Support Mobile Phone iOS, Android System，Remote view of mobile phones, any time... any where...



Easy connection

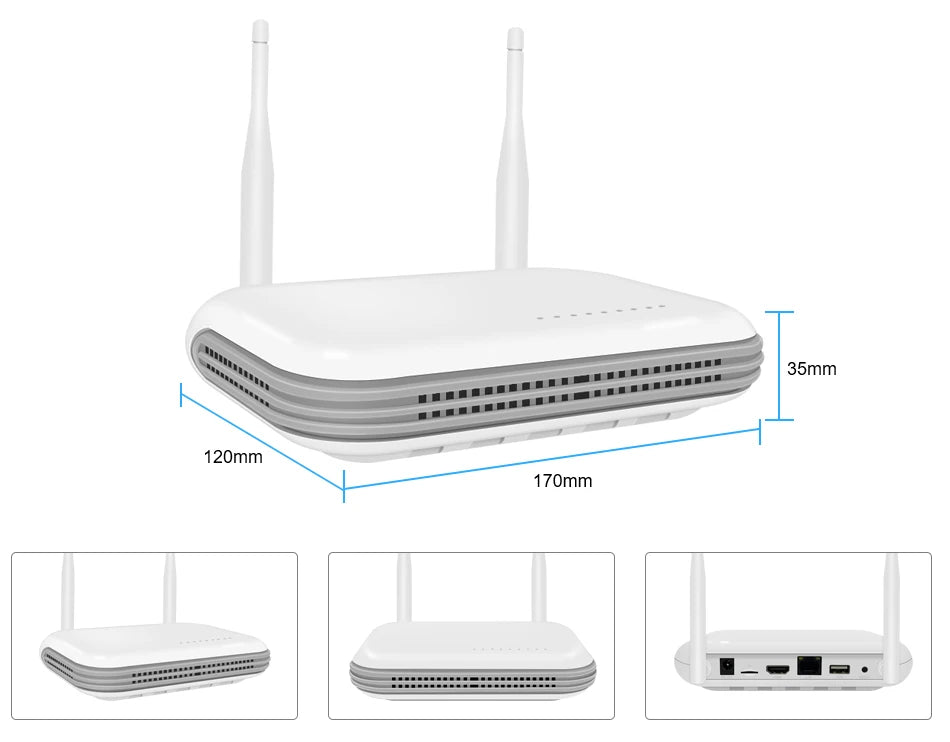

NVR Size and Multi angle display:

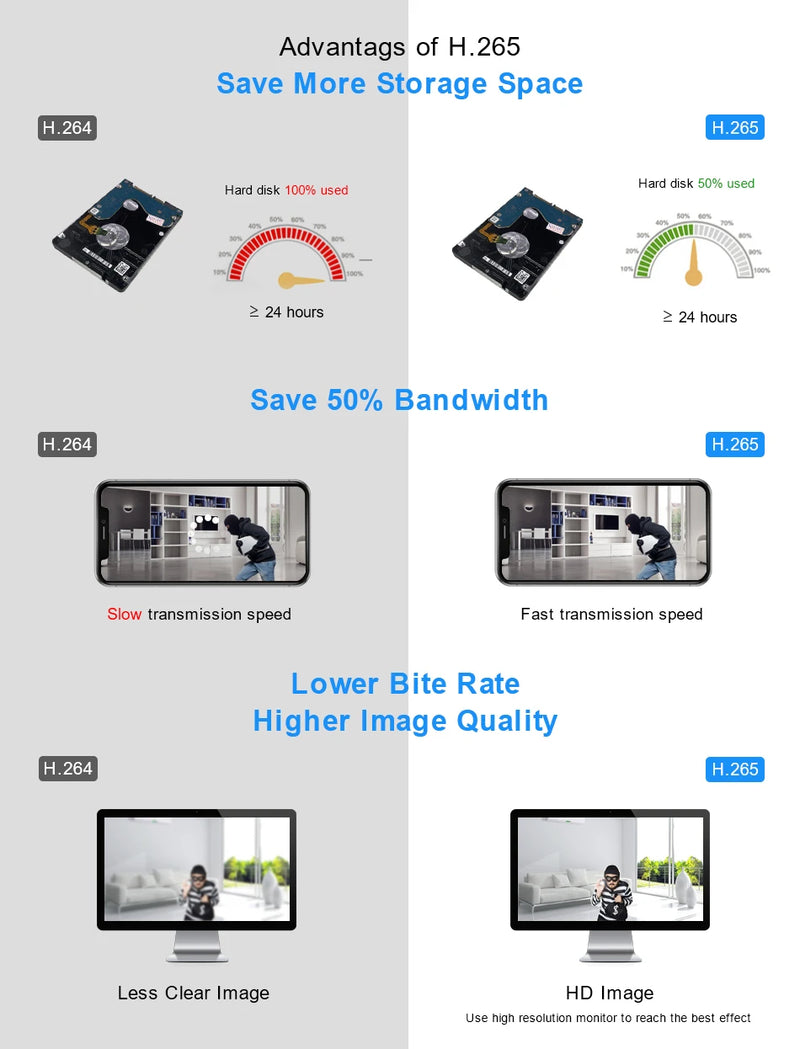

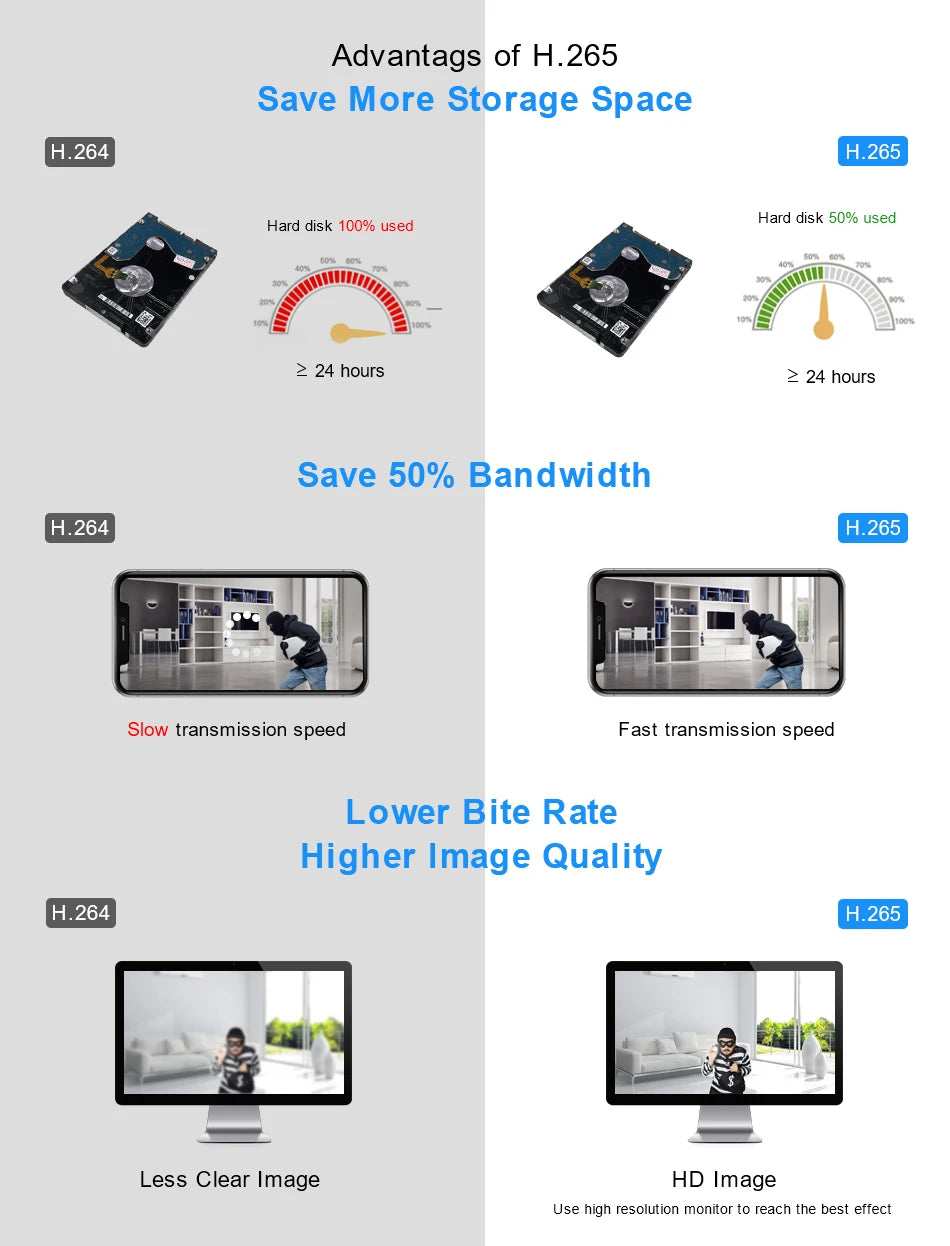

Advanced H.265++ Video Compression

H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.

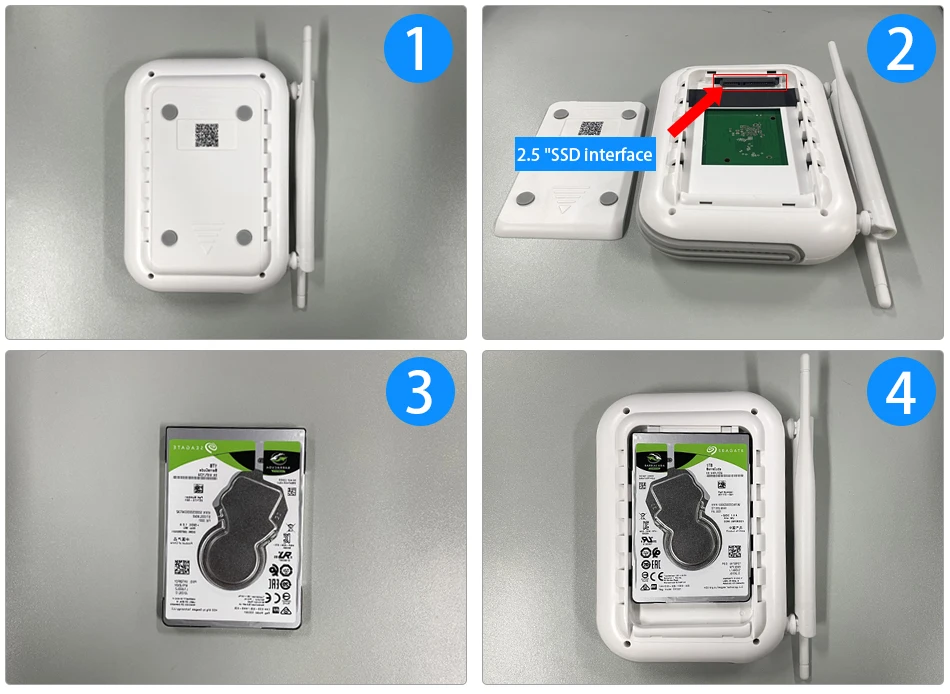

Support 2.5"SSD Interface



How to remote view through Mobile phone?

1. Dowload XMEye Pro Free APP in your mobile phone;

2. Open the software register an account and login.

3. Add devices( Connect the camera to the NVR first)

4. Add successfully, enjoy live video



How to manage the cameras through PC client?

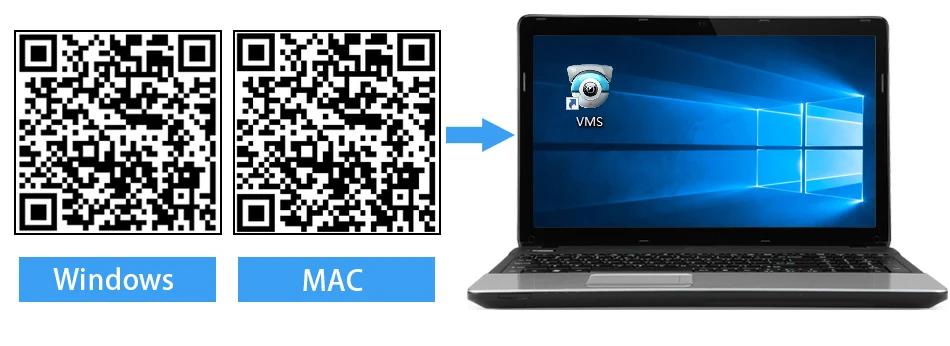

1. Please used your mobile phone to scan the QR code as below, and then click to download；

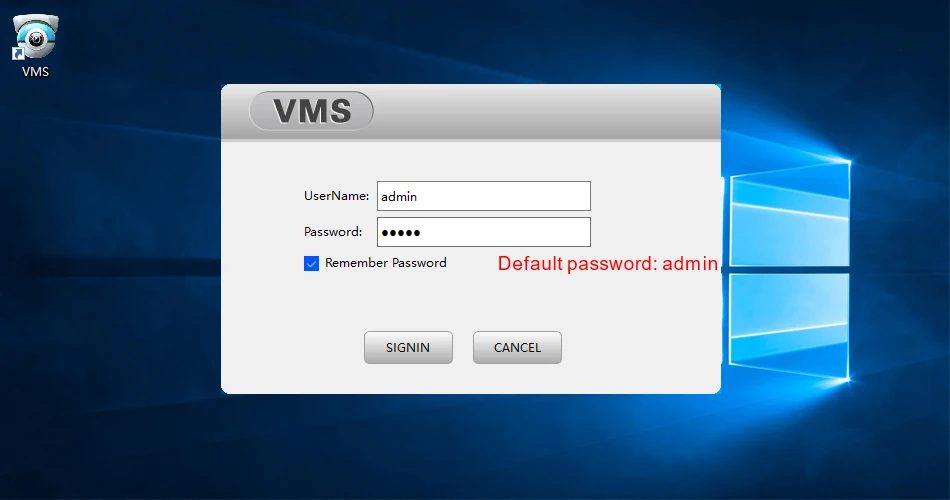

2. Please install VMS software on your computer, then login VMS Software, Username: admin, Password:admin

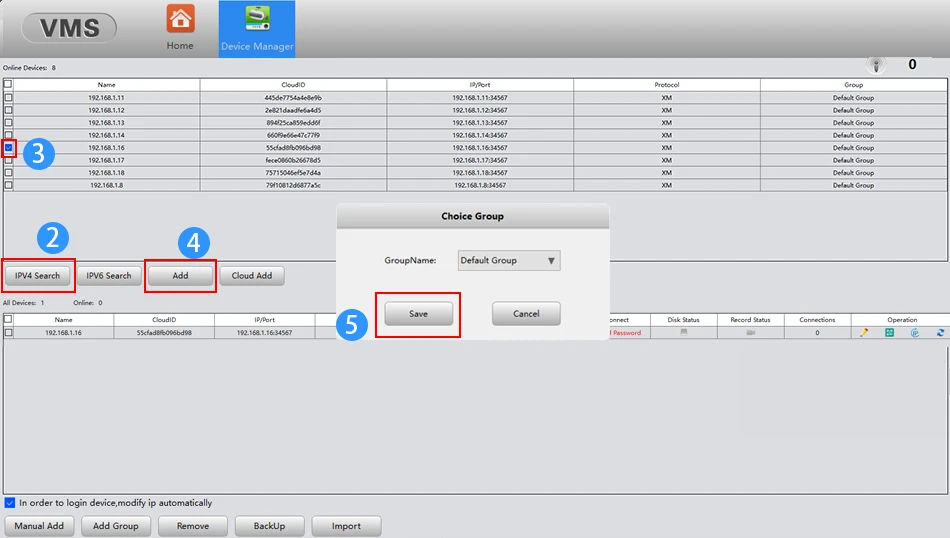

3. Please click the Device Manager-IPV4 Search-choose address of IP Camera- ADD-SAVE,Search and Camera successfully;

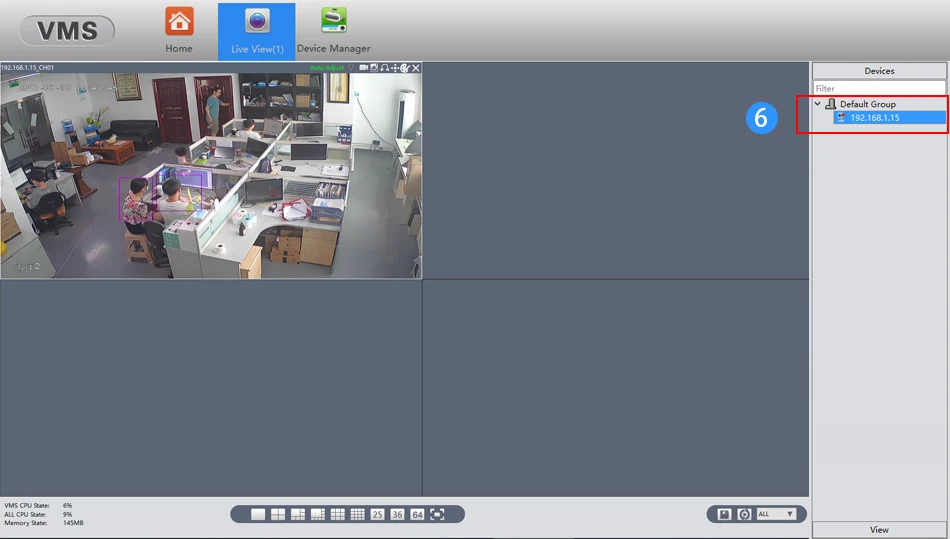

4. Click t he Live View, then click IP Address of Default Group, then you will can Watching Video.







FAQ:



How to confirm which camera support this Wifi NVR ?



1: Wired IP camera

Support Netip and ONVIF protocol IP Cameras.

For Wired IP camera only recommend use RJ45 cable contact NVR to Router.



2: iCSEE Wifi Camera

This WiFi NVR only supports WiFi cameras with ICSee app for WiFi connection (other APPS' WiFi cameras don't support WiFi connection)





3: How to Connection ICSee Wifi Camera to WIFI NVR?



iCSEE camera have Original Camera and OEM camera difference, You need confirm which kind it is first.

For Original Camera, only use the "code for Wireless" to search camera, all will be automatic contact.

For OEM Cameras, You need press the "code for wireless"first, after search finished, press "wired configuration"to search the camera address again, then add the camera by Hand.
Default will be ONVIF protocol, you need edit it to NETIP and "34567"port.





4: Other APP name Wifi Camera

This Kind of camera must contact seller ask first, Make sure they can work together.





5.This WiFi NVR only supports ICSEE WiFi Camera with single lens and dual lens. It is currently uncertain whether it supports WiFi cameras with three camera heads. （Please confirm with the seller before placing an order.)



6.Why are some functions of the product not working properly?

Our this Wifi NVR supports Human Detection, Face Detection, and Car Detection; These 3 features depend on your camera must support the ICSee/XMEye Pro app and support these features.
