Controlador profissional de câmera PTZ com joystick 4D intuitivo, desenvolvido especificamente para transmissões ao vivo em ambientes religiosos e eventos corporativos. Equipado com tela sensível de 3 polegadas, oferece controle preciso e responsivo de câmeras PTZ através de múltiplos protocolos de comunicação: VISCA, VISCA sobre IP, VISCA TCP, PELCO, PD e Onvif, além de suporte a RS-422/485 para máxima compatibilidade com sistemas legados. Suporta alimentação PoE integrada, eliminando necessidade de cabos de energia adicionais, e compatibilidade NDI para integração simplificada em infraestruturas de transmissão modernas. O design robusto com joystick 4D proporciona navegação suave e precisa, enquanto a interface intuitiva reduz curva de aprendizado para operadores. Certificado CE, FCC e RoHS, garante confiabilidade, segurança e conformidade com padrões internacionais mais rigorosos. Suporta resolução 4K, futureproofing seu investimento em tecnologia de transmissão. Ideal para igrejas, estúdios, salas de conferência e qualquer ambiente que demande operação fluida, controle remoto avançado e qualidade profissional em transmissões ao vivo.

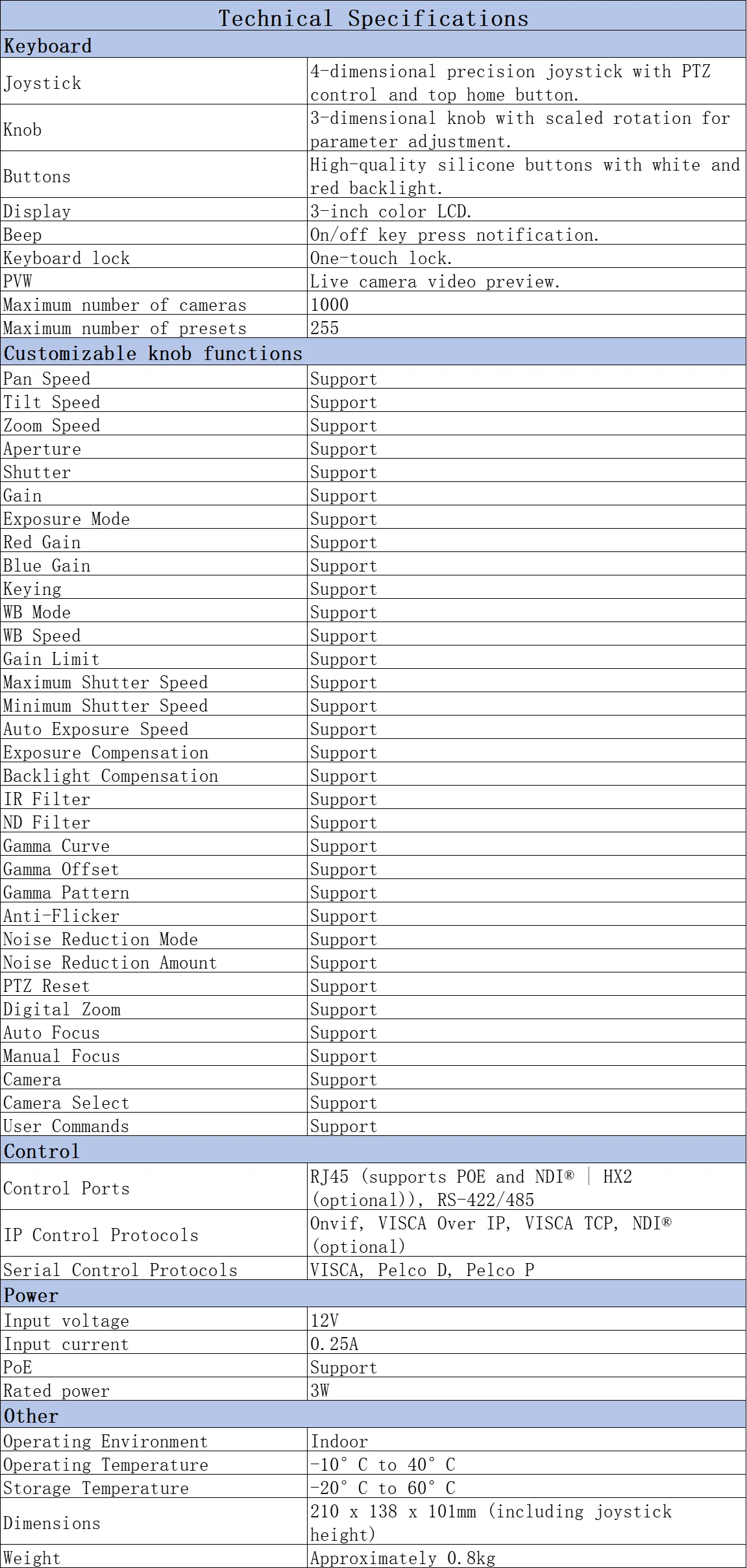

SPECIFICATIONS

Additional Function: Camera Function

Audio File Formats: None

Bit Depth: 4Bit

Brand Name: KATOVJJTS

Certification: CE,FCC,RoHS

Chroma Sampling: None

Display Size: 2" - 3"

Feature 1: 4D Joystick Keyboard

Feature 2: With 3 inch Display Screen

Feature 3: PTZ Camera Controller

Feature 4: For Live Church Meeting

Feature 5: Support POE

Feature 6: VISCA VISCA Over IP VISCA TCP PELCO PD Onvif

High Definition Support: 4K

High-concerned chemical: None

Image Stabilization: No image stabilization

Inbox adaptor: Yes

Interface: RS422 485 RJ45

Media Type: MiniDV

Model Number: KC10A1

Movies File Formats: None

NightShot Function: No

Optical Zoom: Fixed Focus

Origin: Mainland China

Pixels: 8 million

Power Source: Other

Sensor Size: 1/2.8 inches

Sensor Type: CMOS

Storage Type: XQD

Supporting Language: English,Simplified Chinese

Touch Screen: No

Type: Professional

Use: Professional

Weight: 1001g and above

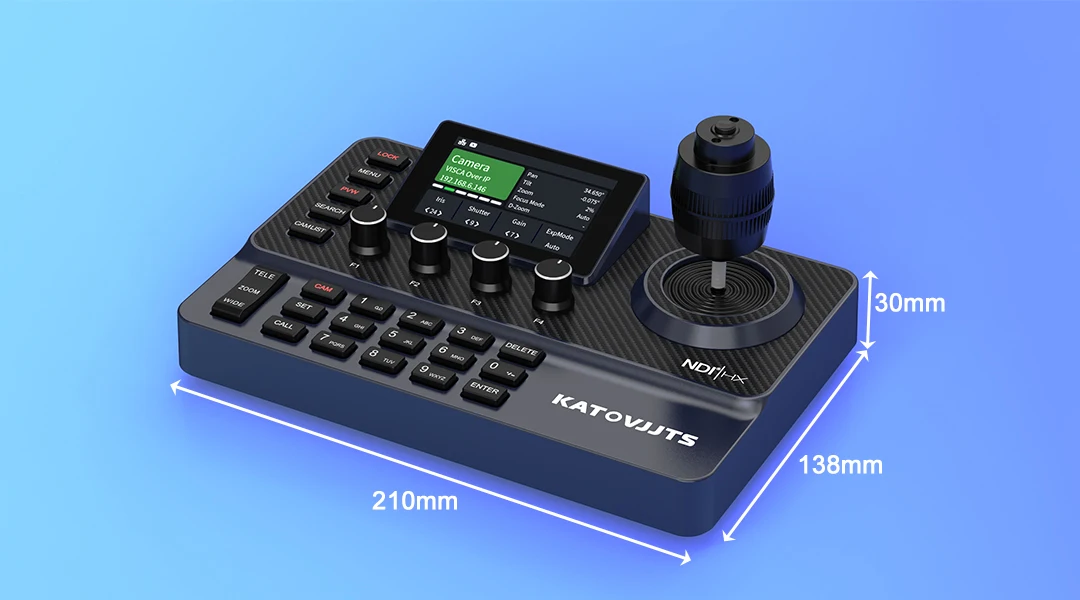

KATOVJJTS NDI 4D Joystick Keyboard PTZ Camera Controller With 3-inch Display Screen Support POE For Live Church Meeting Keyboard

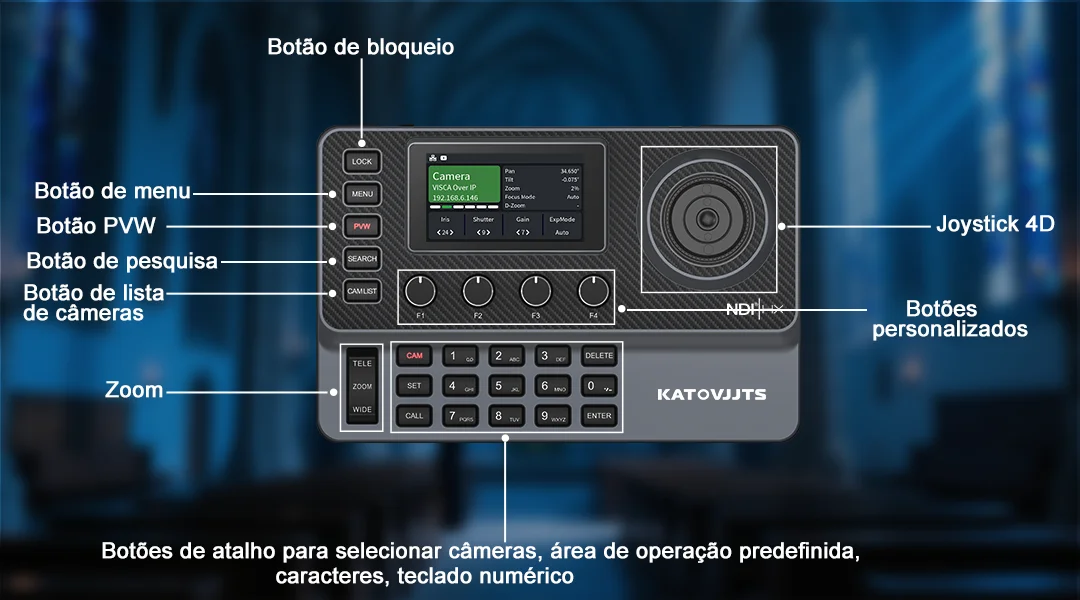

Product Feature:

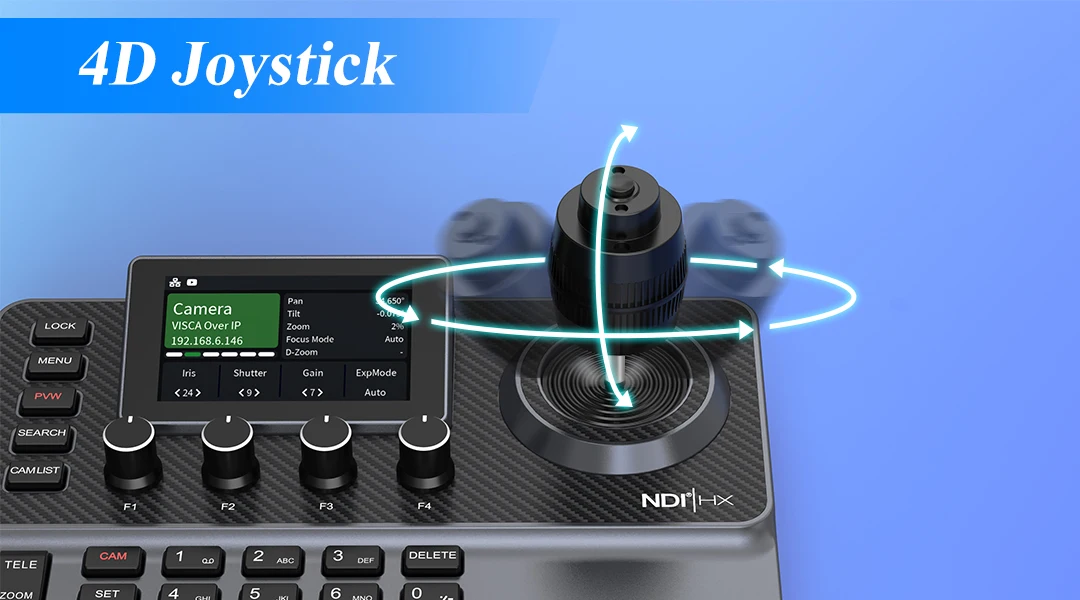

■ 4-D Precision Joystick + 3-D Scale Knob + Ergonomic Zoom Button:

Adjust key camera parameters such as white balance, exposure, focus, and zoom.

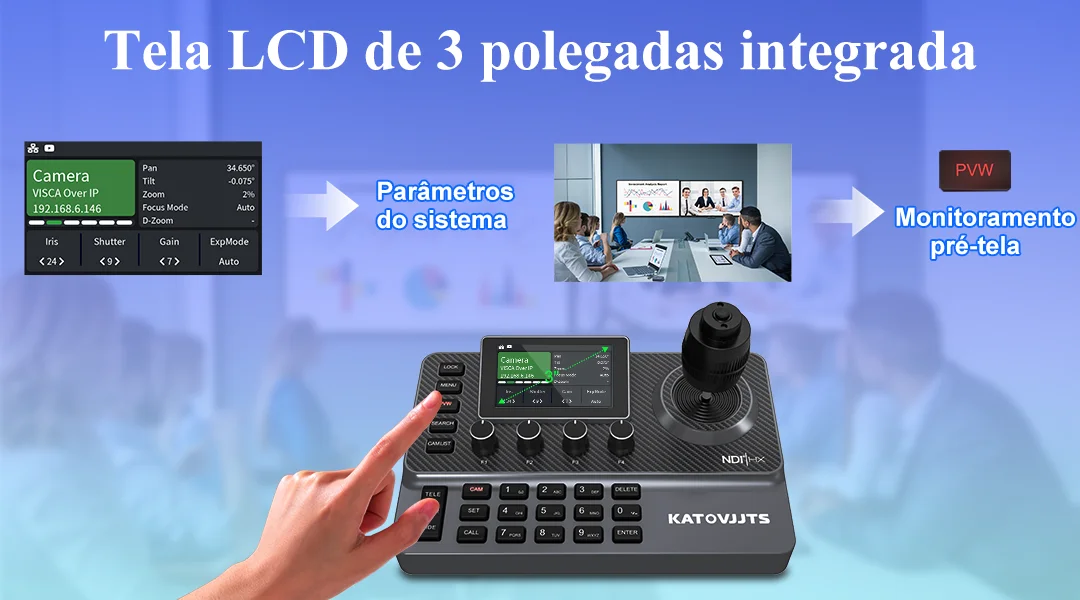

■ Built-in 3-inch Screen:

Supports real-time preview of the current camera feed via streaming protocol (RTSP only); streaming supports up to 4Kp30 UHD resolution.

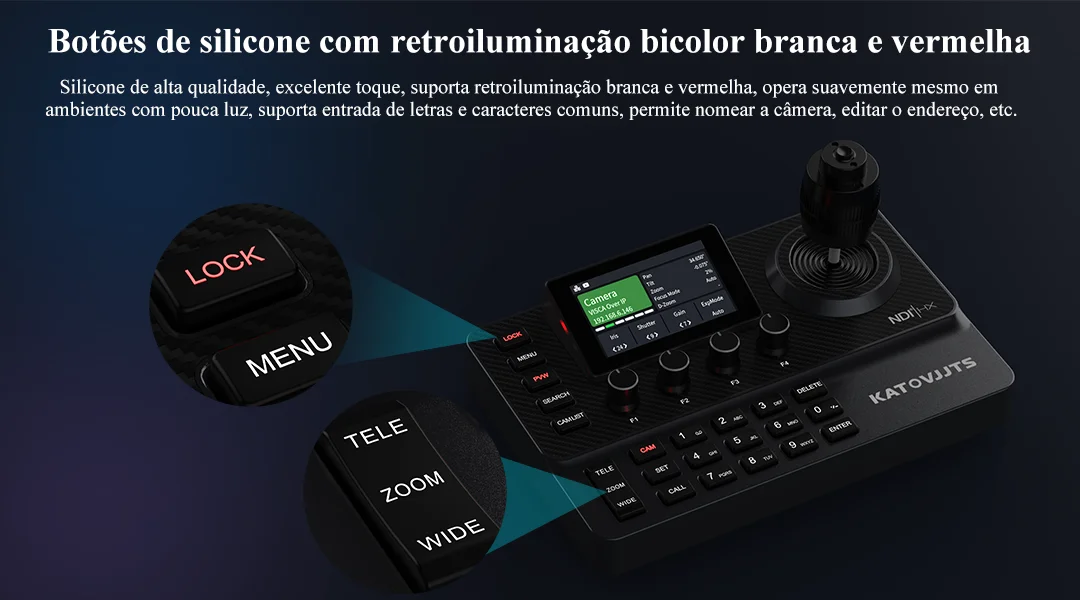

■ White and Red Dual-Backlit Silicone Buttons:

High-quality silicone with an excellent feel and white and red backlighting, ensuring smooth operation even in low-light conditions.

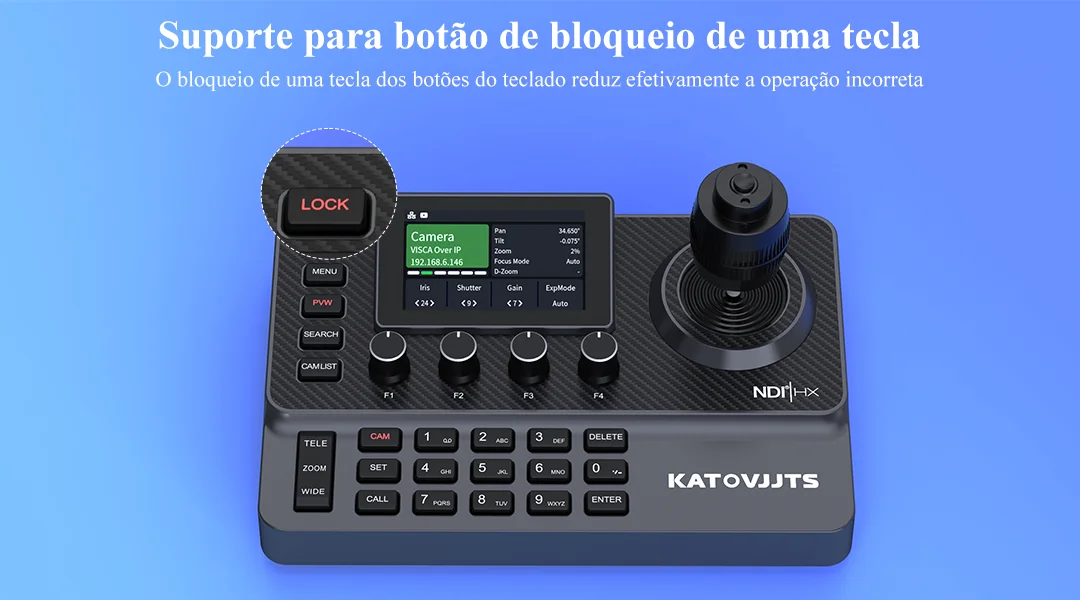

■ One-Touch Lock Buttons:

One-touch lock locks the keyboard buttons, effectively preventing accidental operation.

■ Multiple Control Protocols for Most Uses:

Supports VISCA, VISCA Over IP, VISCA TCP, PELCO P/D, and Onvif control protocols, with automatic protocol recognition.

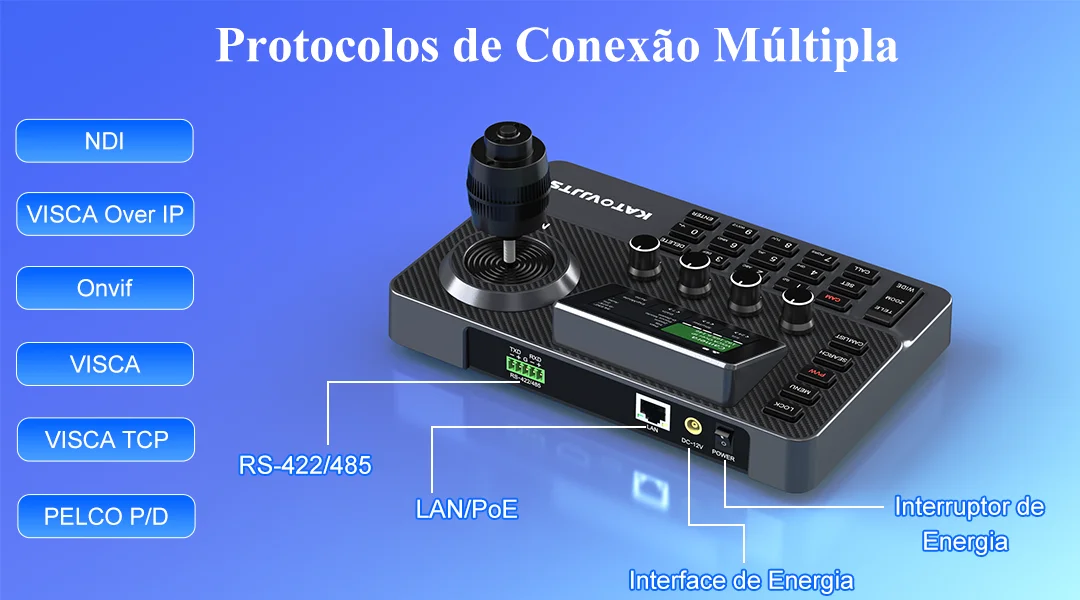

■ Rich Interfaces and Multiple Connection Methods:

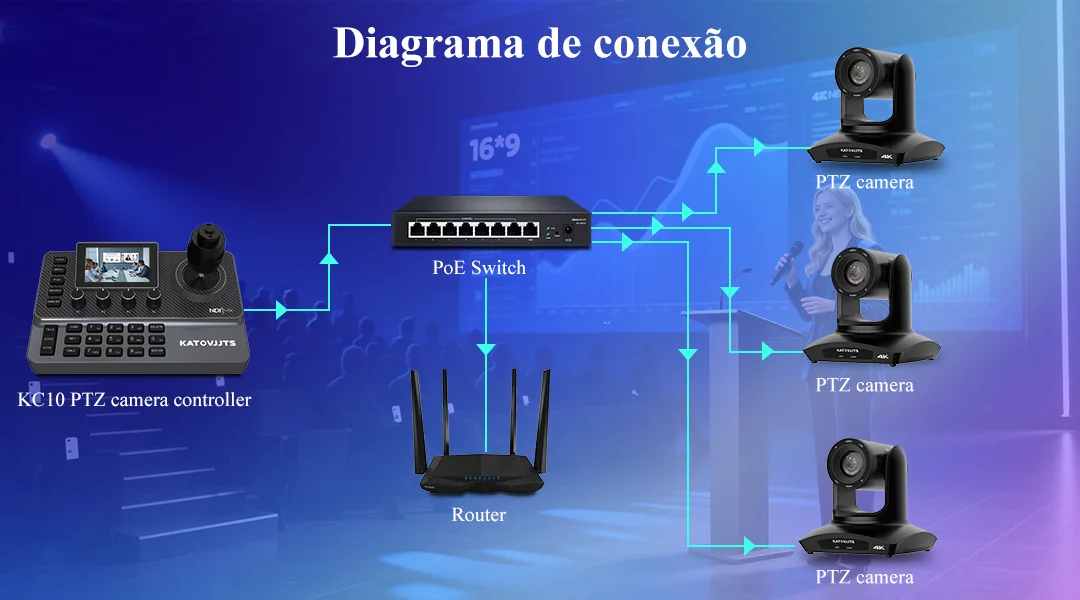

External RS422/485 serial port and RJ45 network port. The network port supports Power over Ethernet (PoE) to reduce wiring hassles.

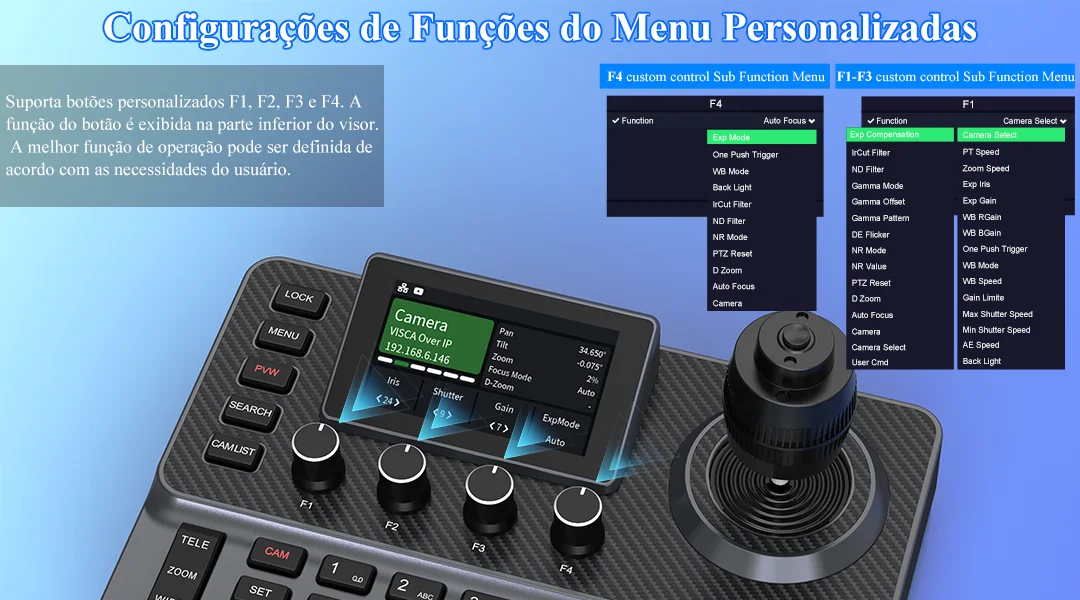

■ Customizable knob functions:

The F1, F2, F3, and F4 knobs support customizable image effect adjustment functions. The display above the knobs displays the knob functions, allowing you to set the optimal operation according to your needs.

■ Powerful web-based backend interface:

Remotely customize functions and parameter configurations via the web-based backend, including web-based device upgrades.

■ Multi-language user interface support:

Simplified Chinese and English are supported, allowing for easy switching between multiple languages.
