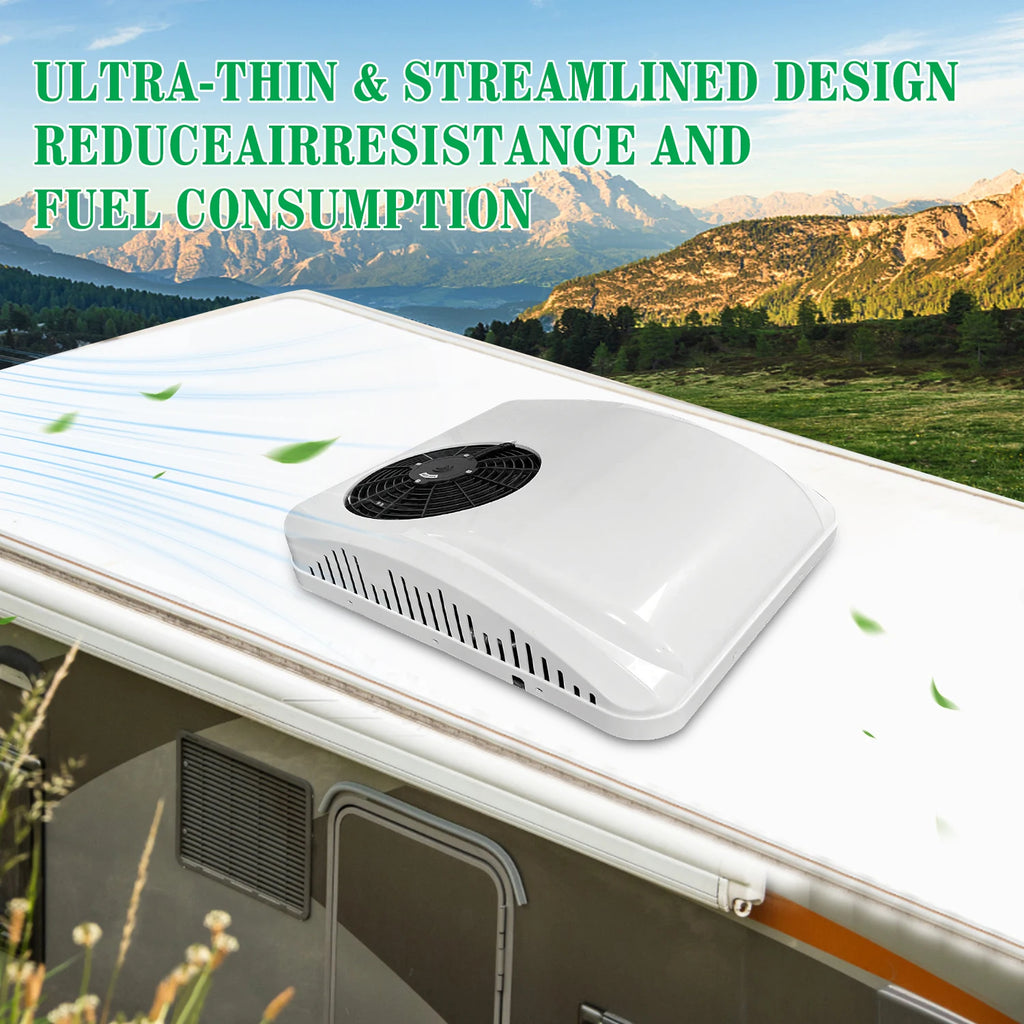

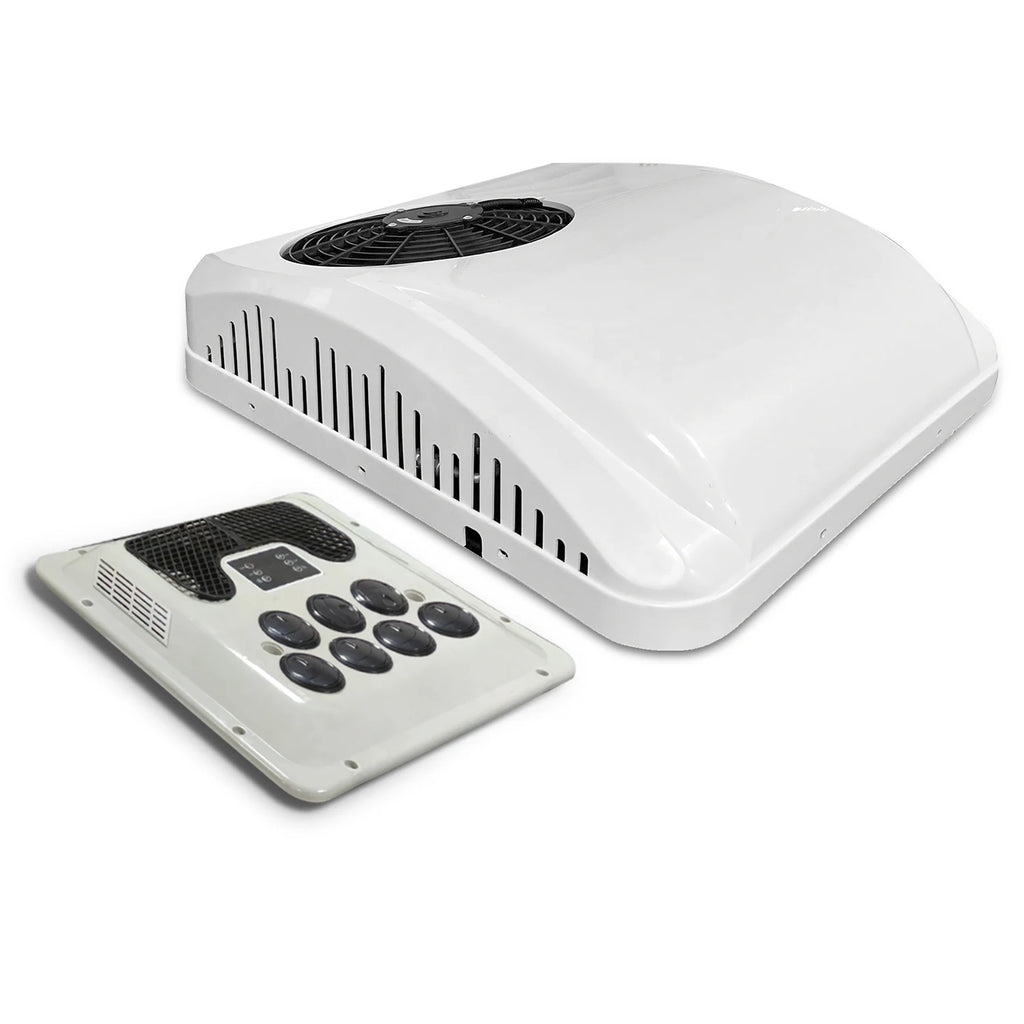

Sistema de climatização Treeligo 13500BTU especialmente projetado para aplicações móveis em veículos recreativos, reboques, motorhomes e caravanas. Equipado com tecnologia dual voltage 12V/24V, oferece flexibilidade de instalação em diferentes tipos de frotas. A unidade combina refrigeração potente de 2300W com aquecimento de 1000W, proporcionando controle climático completo independentemente da estação ou condições externas. Construída em materiais premium ABS + PC, garante durabilidade e resistência às vibrações características do transporte. Com certificação CE e consumo energético otimizado de 960W, mantém eficiência operacional mesmo em uso contínuo. O design compacto (666 x 720 x 160mm) permite instalação discreta em tetos sem comprometer espaço interno. Utiliza refrigerante R134A ambientalmente responsável e suporta corrente nominal de 30-70A para operação estável. Ideal para estacionamento prolongado e transporte, oferecendo conforto térmico consistente em caminhões, trailers e veículos de lazer. Peso de 15kg facilita manutenção e instalação. Solução confiável e de alta qualidade para profissionais que exigem climatização robusta em ambientes móveis.

SPECIFICATIONS

Brand Name: Treeligo

Condition: 100% brand new & high quality

Cooling air volume: 2300W

External Testing Certification: ce

Heat Air Volume: 1000W

High-concerned chemical: None

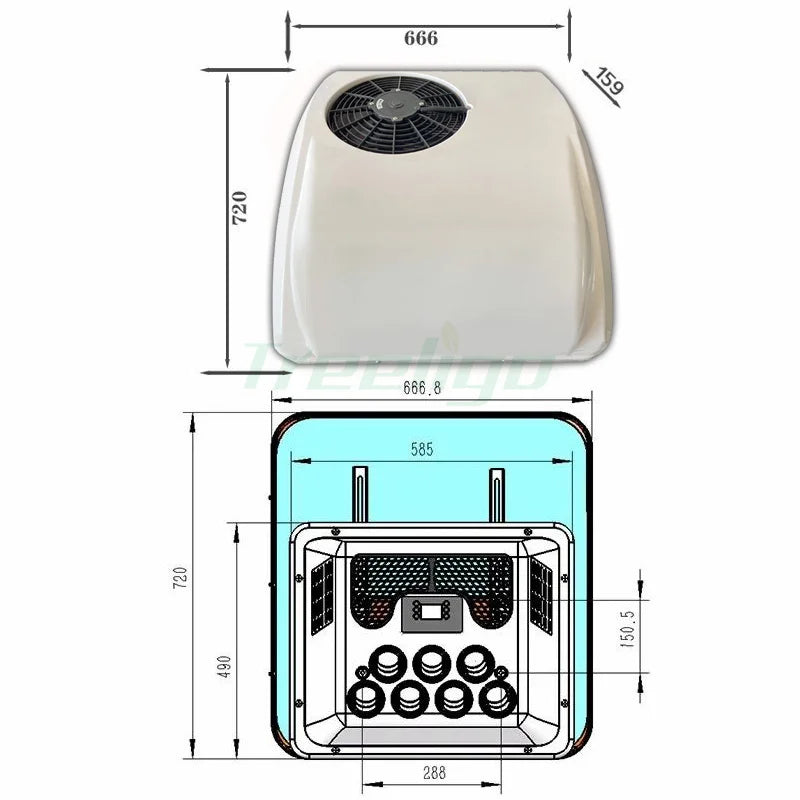

Host size: 666 *720 * 160 mm

Item Height: 16

Item Length: 67

Item Type: Air-conditioning Installation

Item Weight: 15

Item Width: 72

Material: ABS+PC

Model Name: EAC002.18.12.HC

Power Consumption: 960W

Rated Current: 30-70A

Refrigerant: R134A

Special Features: Heat and Cool

Voltage: 12V/24V

Year: 2025

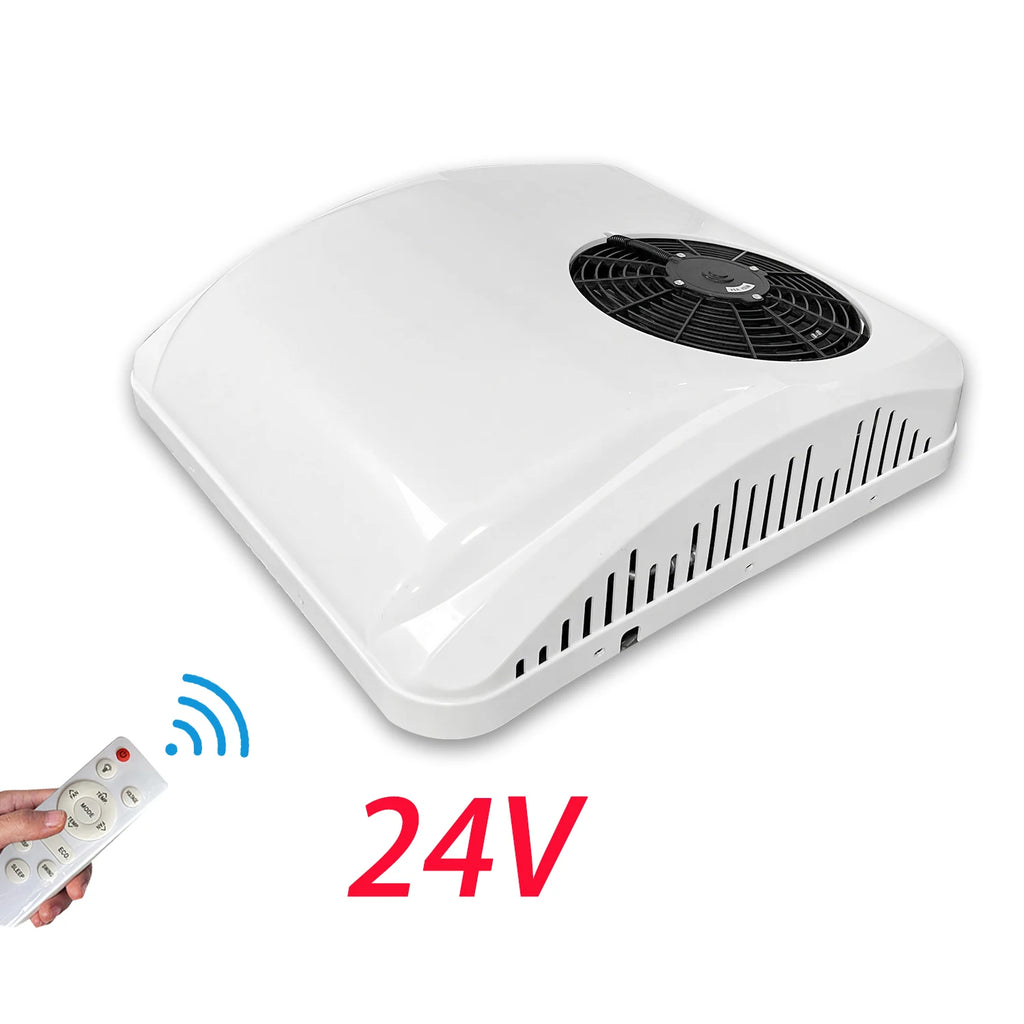

Treeligo 24v Electric RV roof Air Conditioner Heat and Cool 12V RV Rooftop Parking ac for Truck Camper Van Caravans Motor home

install vedio：

For orders placed in Brazil, you can choose to have the goods shipped from a Brazilian warehouse, and these orders are tax-free. No taxes are required for orders placed from Brazilian warehouses.

About this item

【Cooling & Heating Integrated】To solve the problem that the only cooling air conditioner can't satisfy using in winter, We release this air conditioner Hot & Cooling Integrated.
【Parameters】Cooling Air volume is about 2300 W ; Heat Air Volume is 1000W; Power Consumption 960W, Rated Current 30-70A; Host Size: 666 *720 * 160 mm， Refrigerant R134A

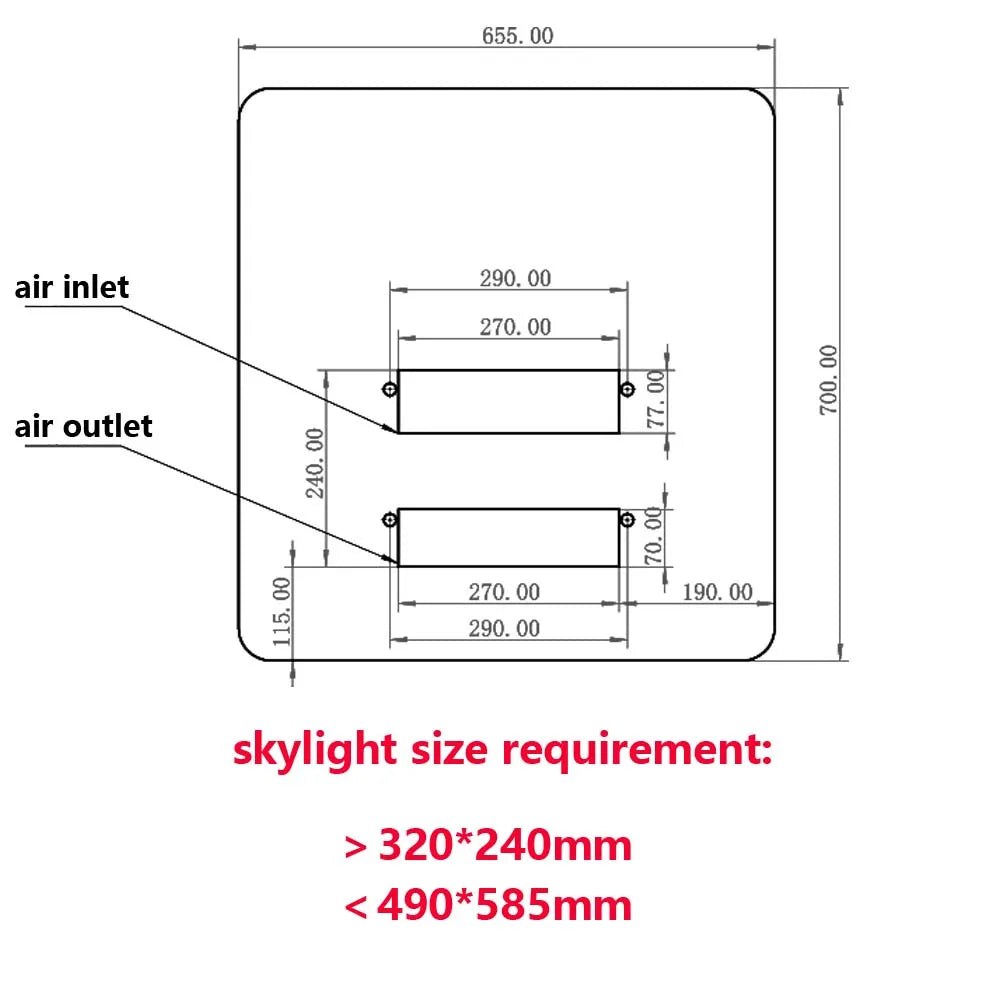

【Note】Window size: length (299-580) * width (255-440) Please check the size before shop it.

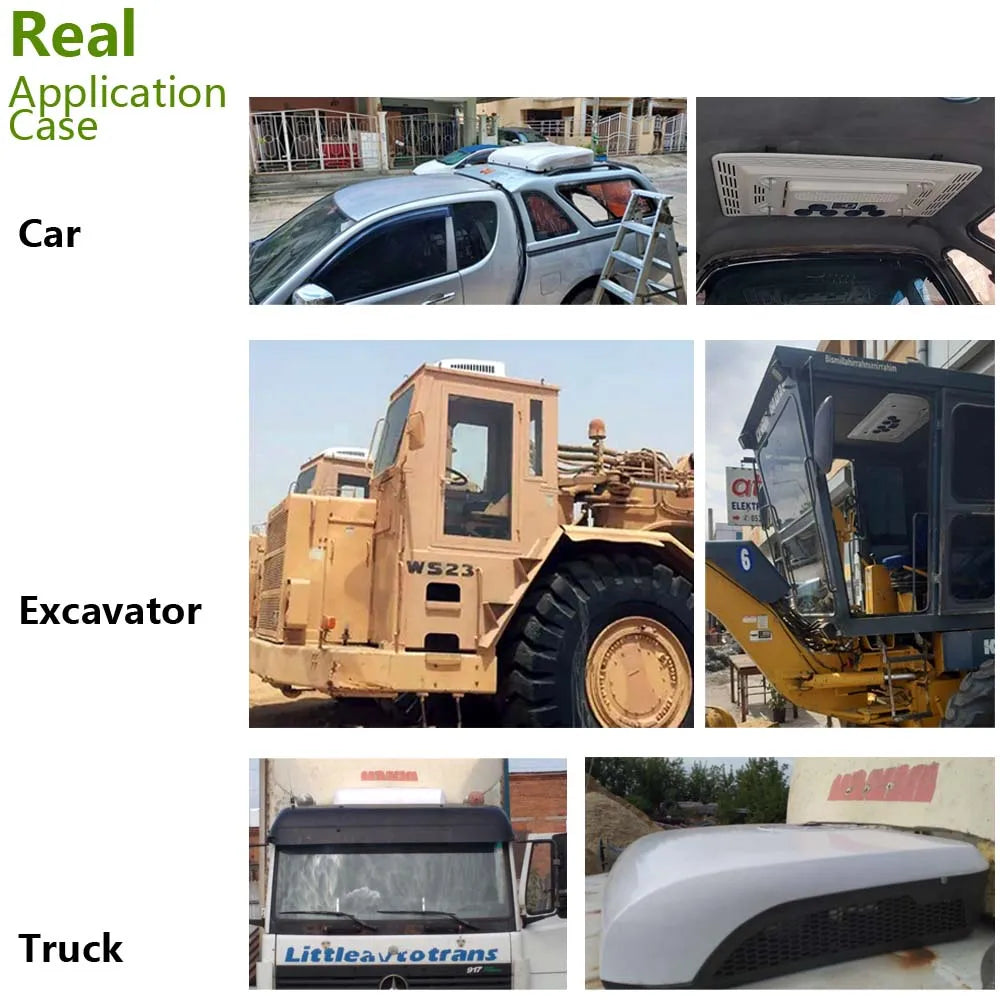

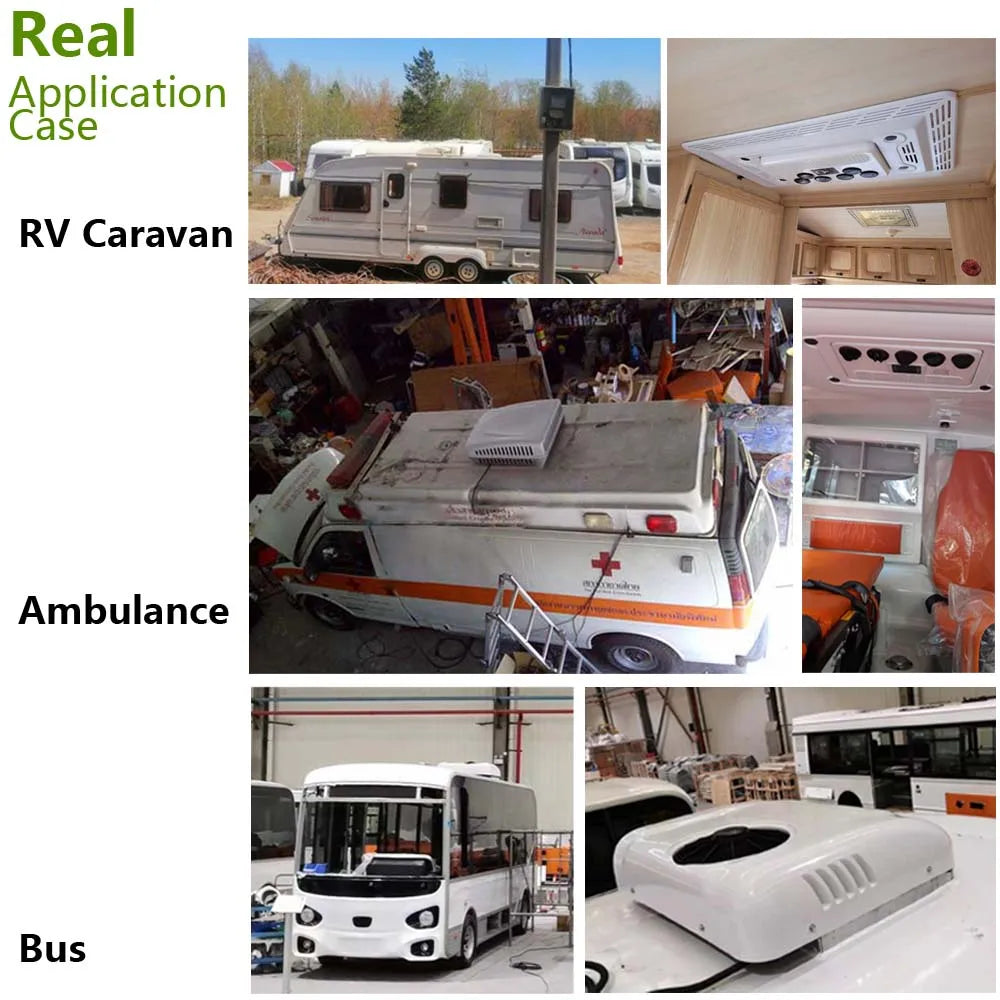

【Applicable】New energy electric air conditioning is suitable for truck , caravan , cranespassenger , excavator , motor home , RV , agricultural machine , etc
【After-salse】Customer service online, Any question about our product and survice, Please contact us. We will answer you within 24 hours.

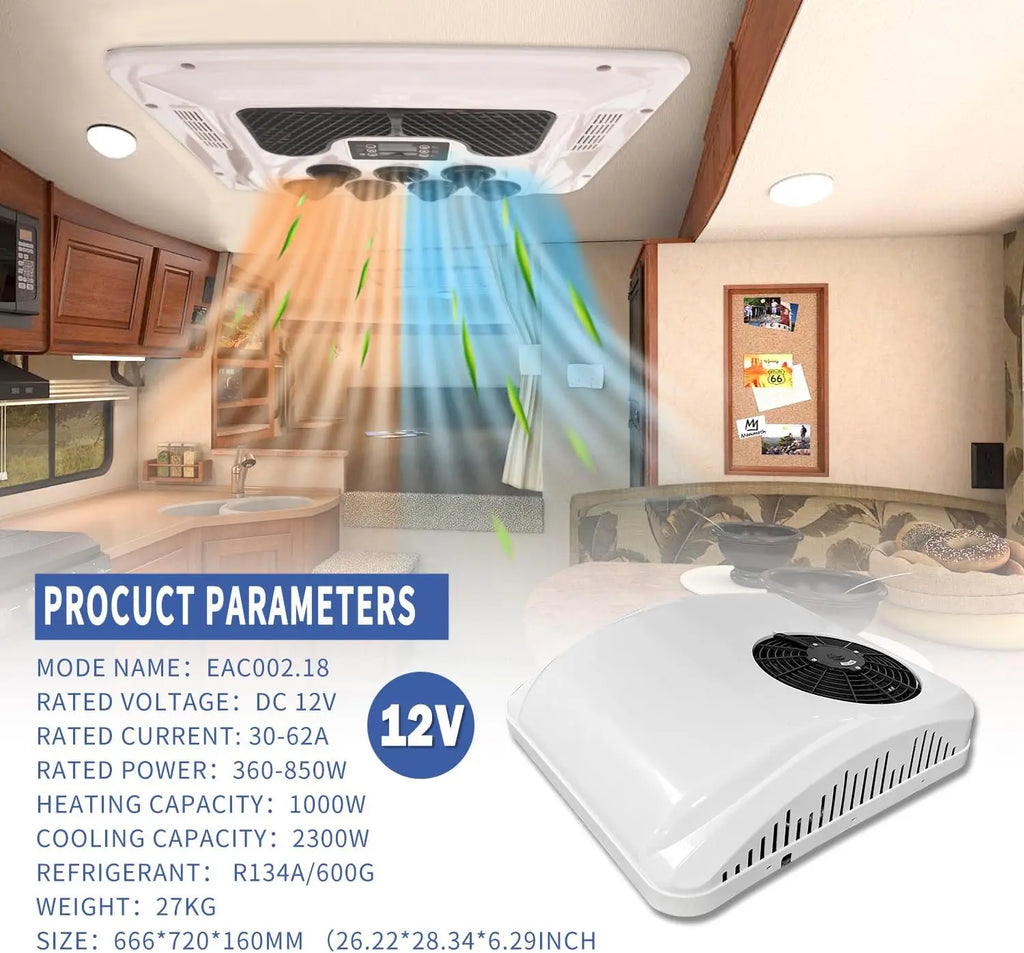

Specification:

Voltage:12V/24V
Cooling Air volume:about 2300 W ;
Heat Air Volume:1000W;
Power Consumption:960W;
Rated Current:30-70A;
Host Size: 666 *720 * 160 mm
Refrigerant: R134A
Window size: length (299-580) * width (255-440)
Environmental requirements：conditions of ambient temperature -15～48℃
System pressure protection switch：
≥2.5MPa to close , 2.45MPa to restore (for
reference)
≤ 0.1 8MPa to close , 0.23MPa to restore (for
reference)

Applicable:

New energy electric air conditioning is suitable for truck , caravan , cranespassenger , excavator , motor home , RV , agricultural machine , etc

Note:

1. When using an electric air conditioner when driving, the battery should be fully charged first, and the generator must be above 75A.
Vehicles with less than 75A must pay attention to the battery storage on the dashboard when driving. Stop using the electric air conditioner as soon as the indication of low battery power appears.
When the generator is running and the voltage is high, the compressor controller will mistakenly think that the battery is fully charged, but in fact the battery has no electricity. When parking, the compressor controller will automatically control, will not cause battery feed. In addition, when the generator is less than 55A, there will be undervoltage, and the air conditioner will be turned on when it stops. (This is because the power in the battery has been used up, and when the engine speed is low, the point cannot keep up, resulting in undervoltage).
2. In order to maximize the performance of the electric air conditioner, it is recommended to install a set of power batteries of 200A or above and a generator of about 70A, which can be used for about 5 hours when it is very hot during the day and used for more than 10 hours at night. Electric air conditioner doesn't have any effect either!
3. The external unit of the electric air conditioner should be installed to avoid the exhaust pipe of the engine, so as not to cause the high temperature of the external unit. The distance between the back panel of the electric air conditioner and the cab should not be less than 10 cm to ensure that the condenser fan has sufficient airintake.

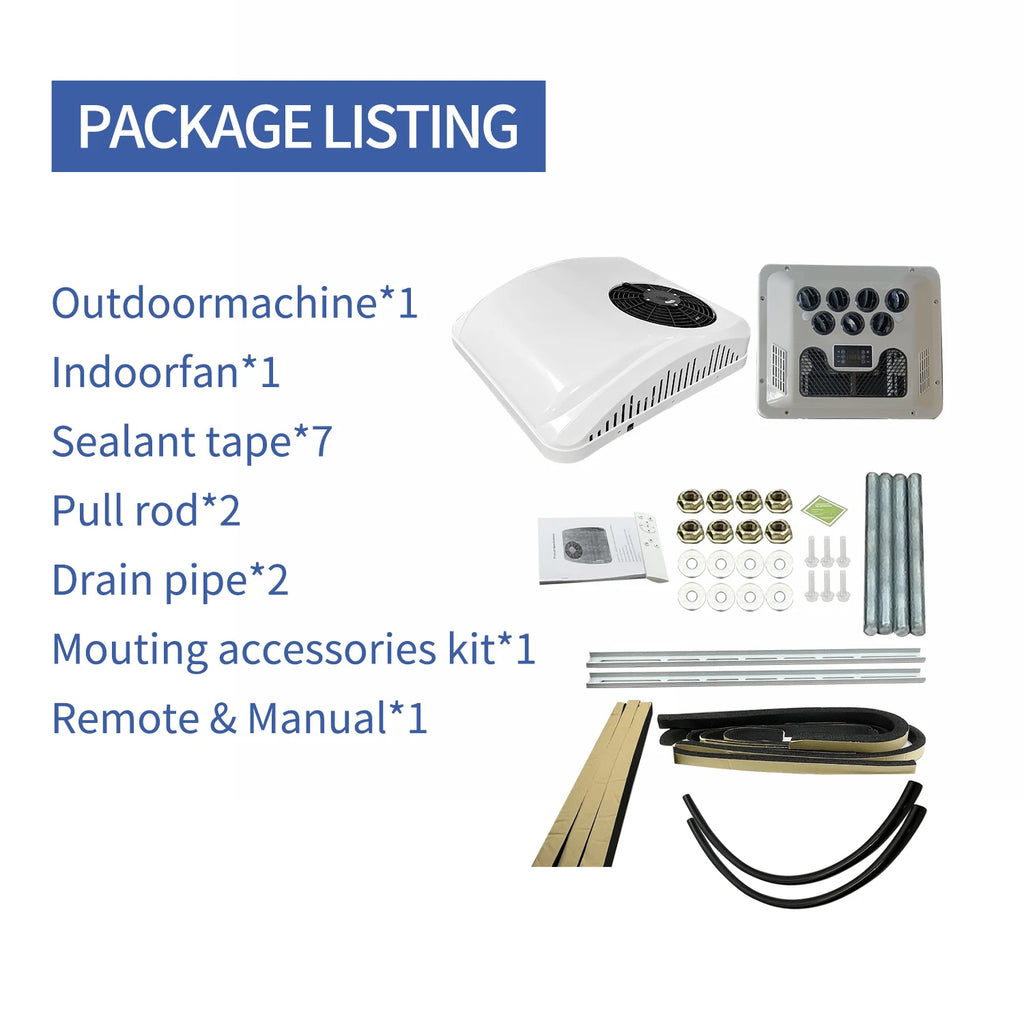

Package List:

1 Set Heating&Cooling A/C

Tariff issues:

Regarding the issue of tariffs, we will do our best to cooperate with you, but it is difficult for us to measure whether you need to pay import taxes. To ensure that our buyers can pay lower tariffs and enjoy a pleasant shopping experience with us.

Kindly Reminder:

Regarding the issue of tariffs, Tariffs are not included in product prices and transportation costs.we will do our best to cooperate with you, but it is difficult for us to measure whether you need to pay import taxes. Hope you have a pleasant shopping experience.

Leave a message to tell us your Car model for confirmation.

Please contact us before leaving a neutral or negative feedback,We will try the best to solve the problem for you！

install step：
