Ar condicionado de teto 12V/24V modelo EAC002.18.12.HC.R, especialmente projetado para veículos comerciais e recreacionais que necessitam de climatização durante períodos de estacionamento. Oferece capacidade de refrigeração nominal de 2300W com fluxo de ar variável entre 250-450m³/h, garantindo distribuição eficiente do ar frio em cabines de caminhões, trailers e caravanas. Construído em materiais de alta qualidade (ABS+PC), apresenta durabilidade excepcional e certificação CE de conformidade internacional. O sistema opera com voltagem flexível de 12V/24V, consumindo apenas 330W de potência nominal, com suporte a correntes de 30-60A para máxima compatibilidade. Carregamento de refrigerante de 500g proporciona desempenho otimizado e eficiência energética. As dimensões compactas (680x220x621mm) e abertura de instalação de 310x240mm permitem montagem em espaços reduzidos sem comprometer a funcionalidade. Peso de 27kg garante estrutura robusta. Solução profissional e confiável para conforto térmico contínuo em ambientes móveis, ideal para operações de transporte de longa duração.

SPECIFICATIONS

Air volume: 250-450m³/h

ChargingQuantityof Refrigerant(g): 500g

Conditon: 100% brand New & High Quality

Current (A): 30-60A

External Testing Certification: ce

External dimensions: 680*220*621mm

High-concerned chemical: None

Installation Size: 310*240mm

Internal machine size: 585*490mm

Item Height: 16

Item Length: 67

Item Type: Air-conditioning Installation

Item Weight: 27

Item Width: 72

Material: ABS+PC

Model Name: EAC002.18.12.HC.R

Rated Cooling Capacity (W): 2300W

Rated Power (W): 330W-1000W

Rated Voltage: 12V/24V

Refrigerant: R134A

Refrigerant Oil: POE68

Special Features: Heat and Cool

Year: NEW

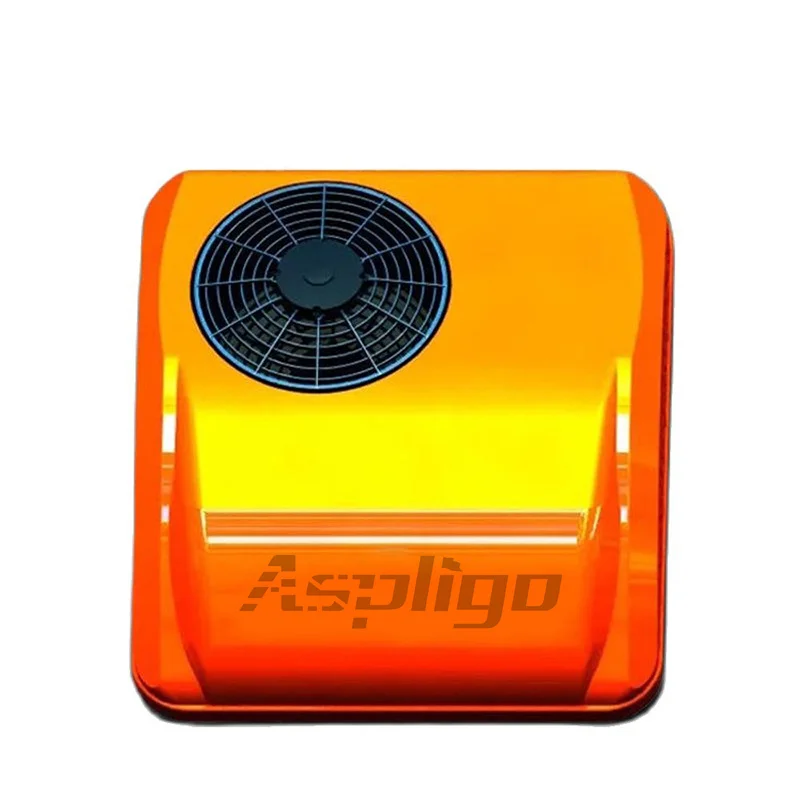

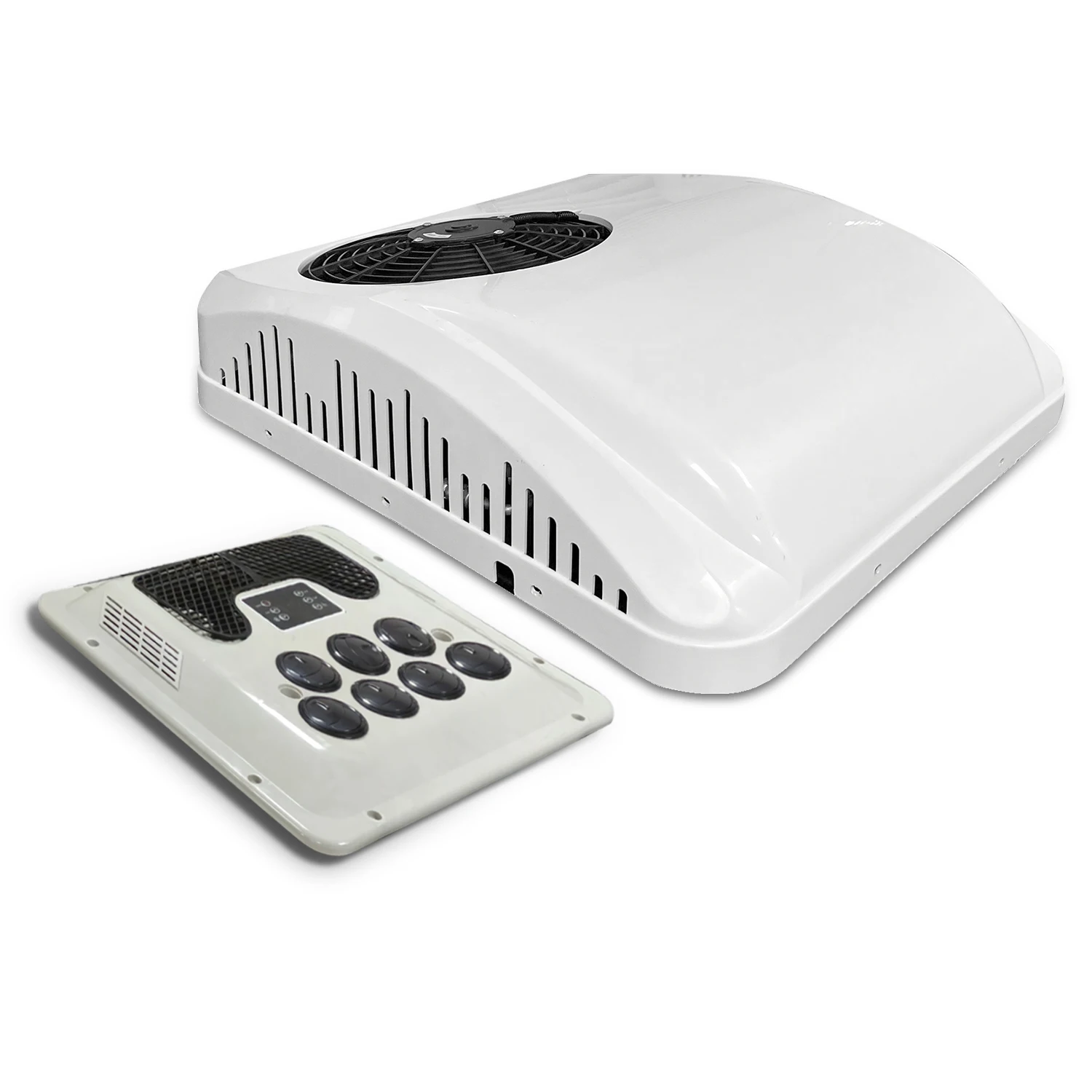

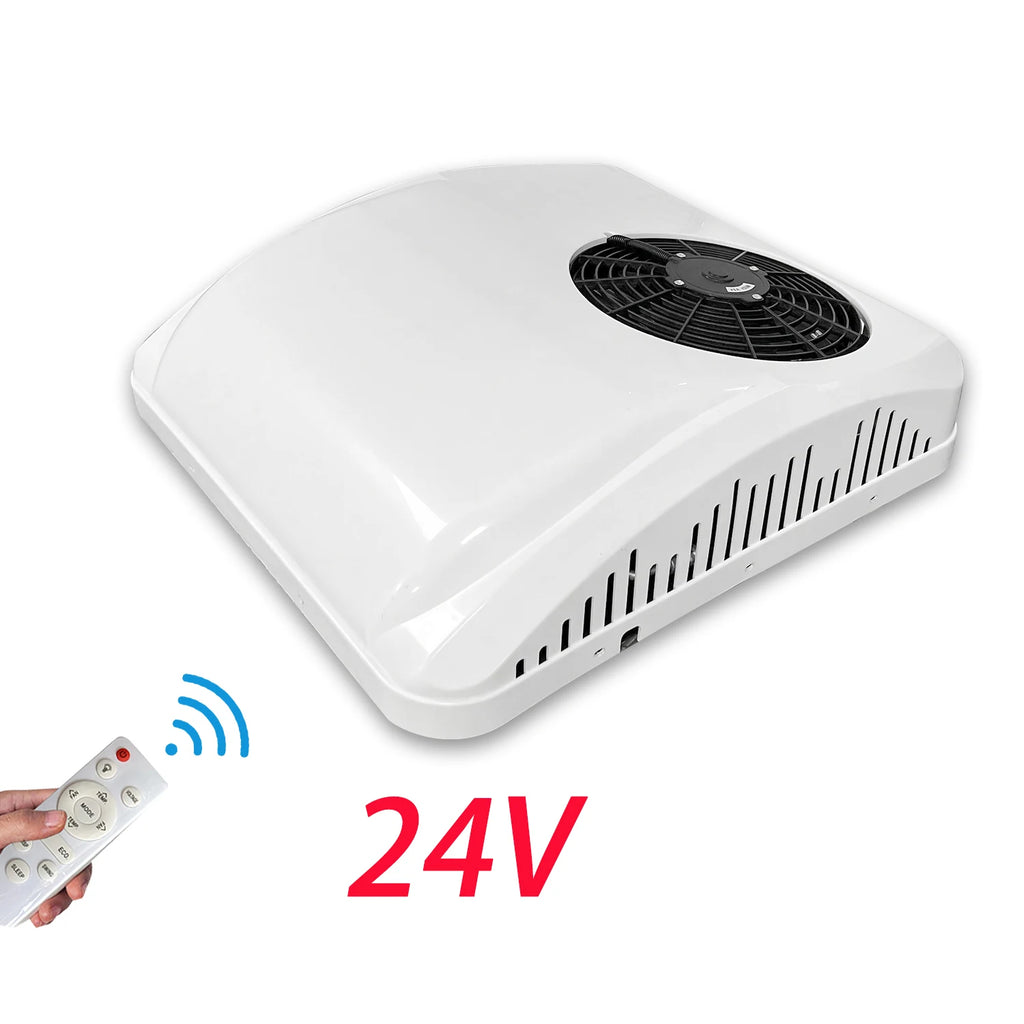

Aspligo Electric RV Roof Air Conditioner 12V Heat and Cool Car Rooftop Parking Conditioning Ac 24V for Truck Camper Van Caravans

About this item

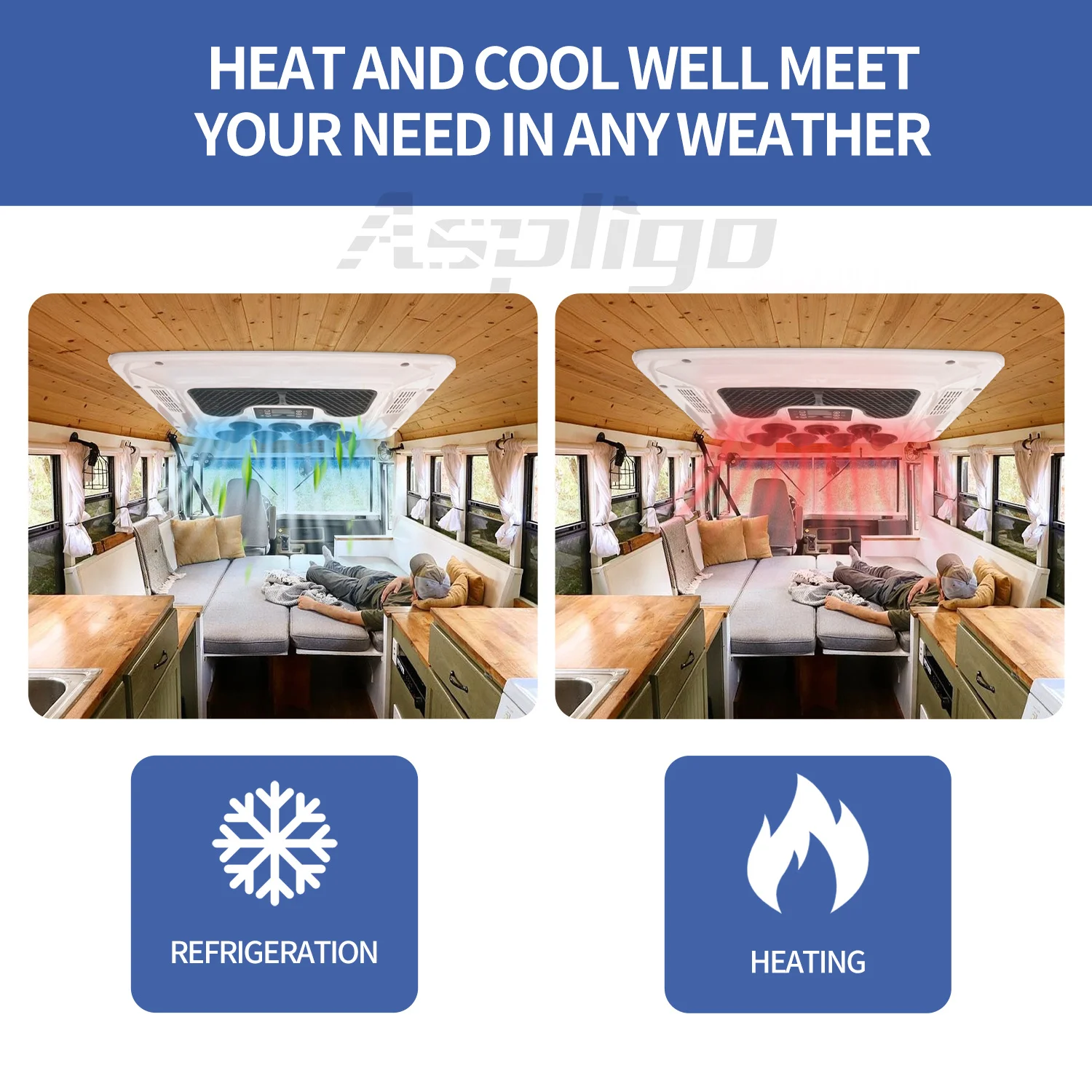

【Cooling & Heating Integrated】To solve the problem that the only cooling air conditioner can't satisfy using in winter, We release this air conditioner Hot & Cooling Integrated.
【Parameters】Cooling Air volume is about 2300 W ; Heat Air Volume is 1000W; Power Consumption 960W, Rated Current 30-70A; Host Size: 666 *720 * 160 mm， Refrigerant R134A

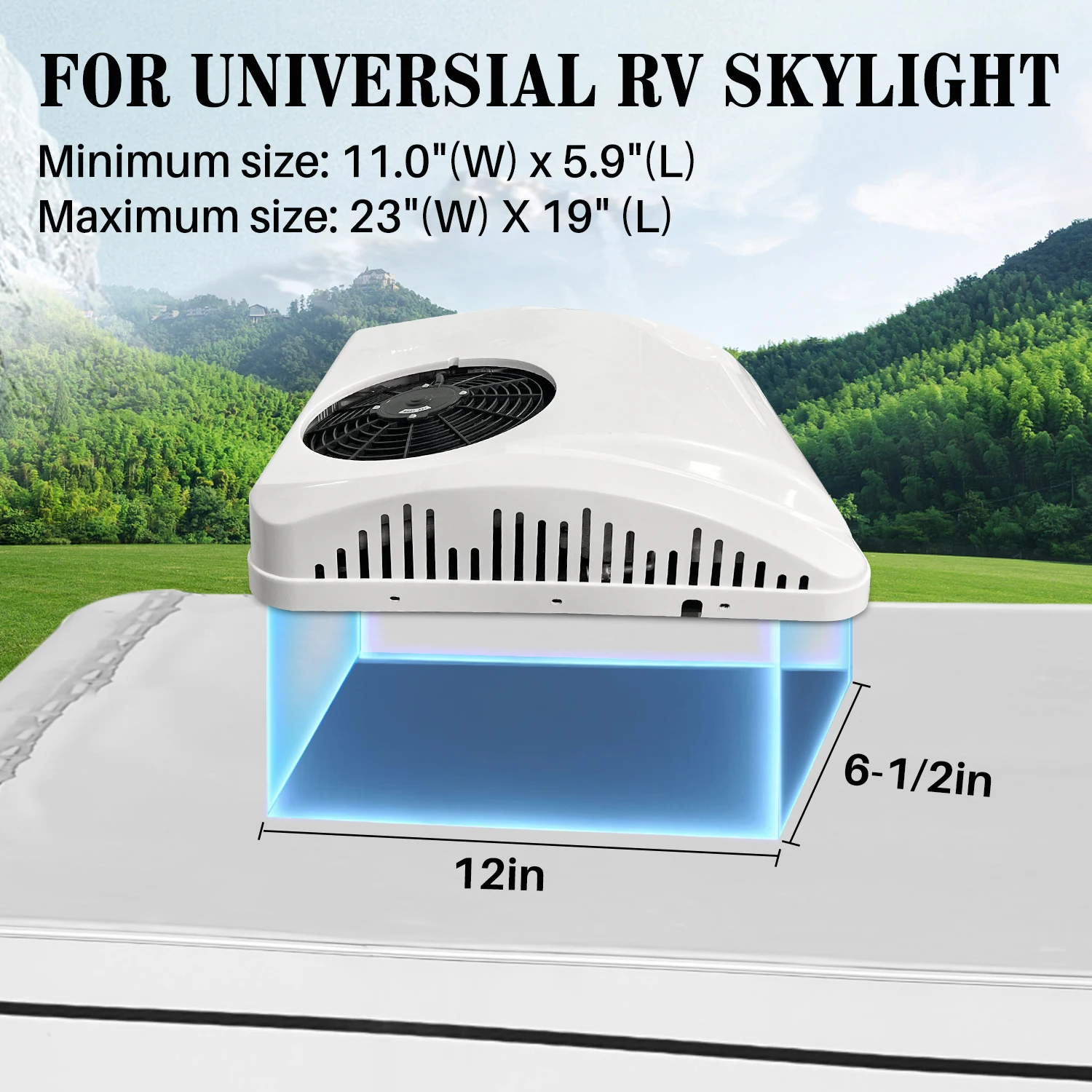

【Note】Window size: minimum 300mm * 170mm, maximum 590 * 490mm. Please check the size before shop it.

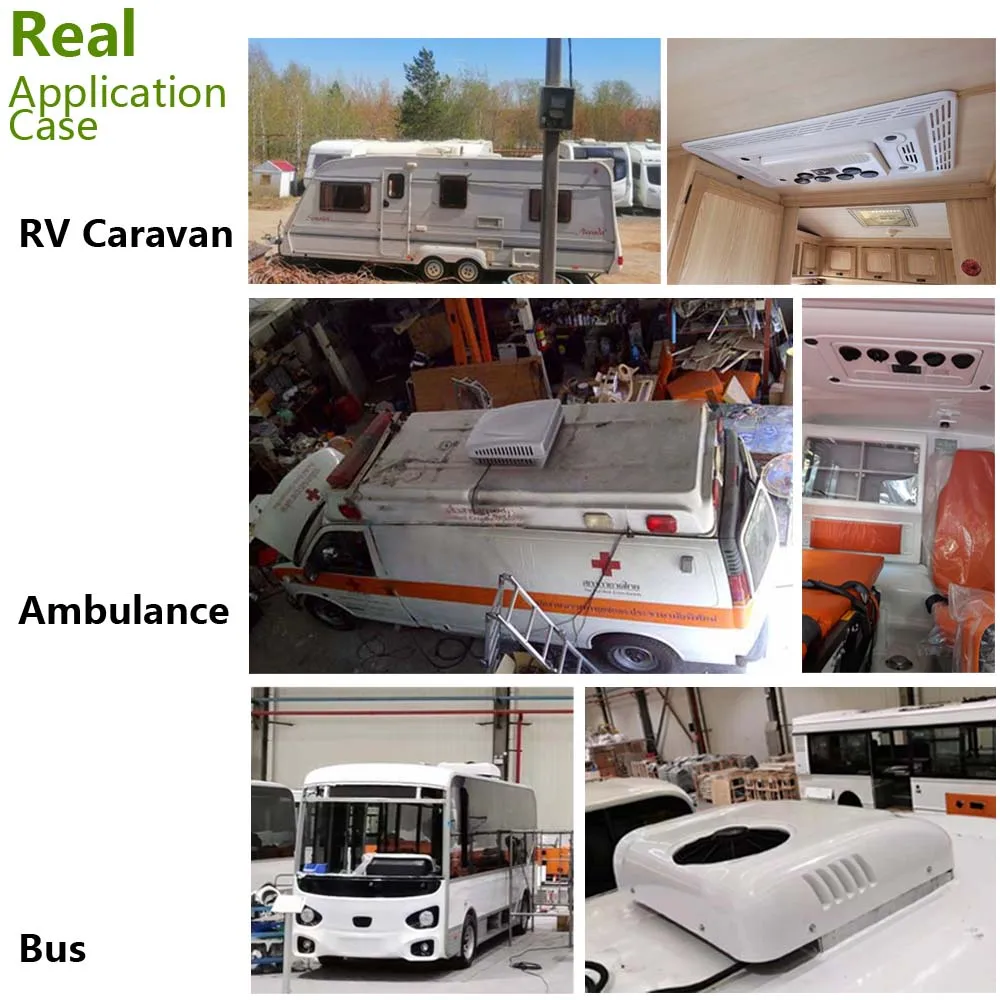

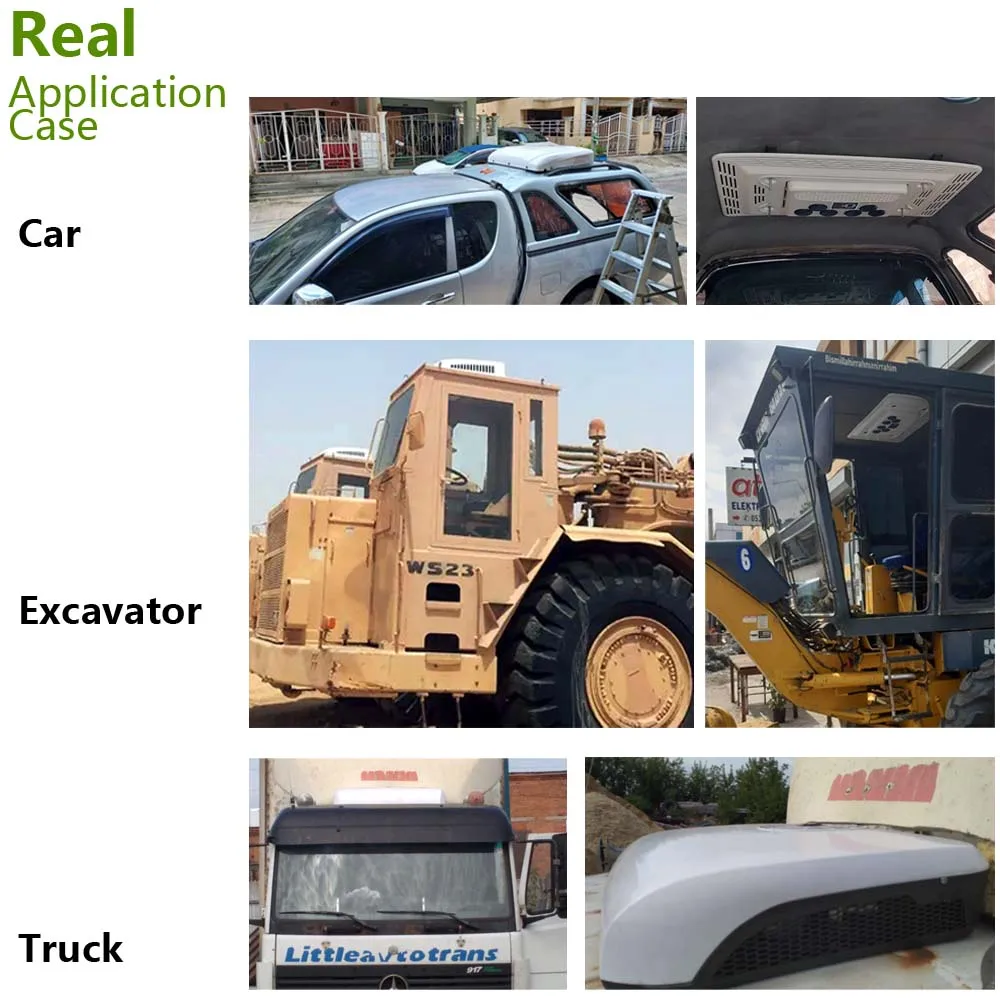

【Applicable】New energy electric air conditioning is suitable for truck , caravan , cranespassenger , excavator , motor home , RV , agricultural machine , etc
【After-salse】Customer service online, Any question about our product and survice, Please contact us. We will answer you within 24 hours.

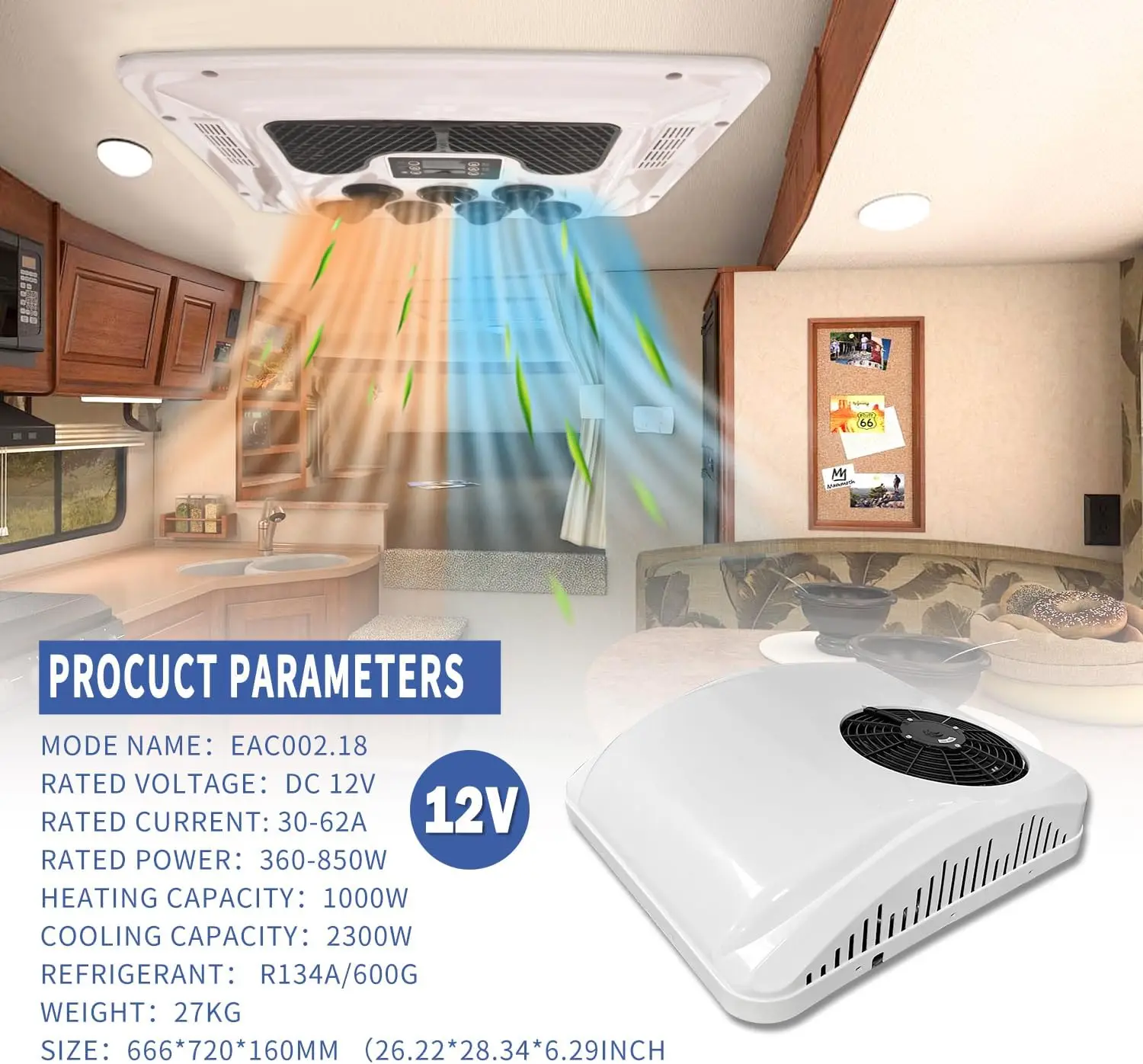

Specification:

Voltage:12V
Cooling Air volume:about 2300 W ;
Heat Air Volume:1000W;
Power Consumption:960W;
Rated Current:30-70A;

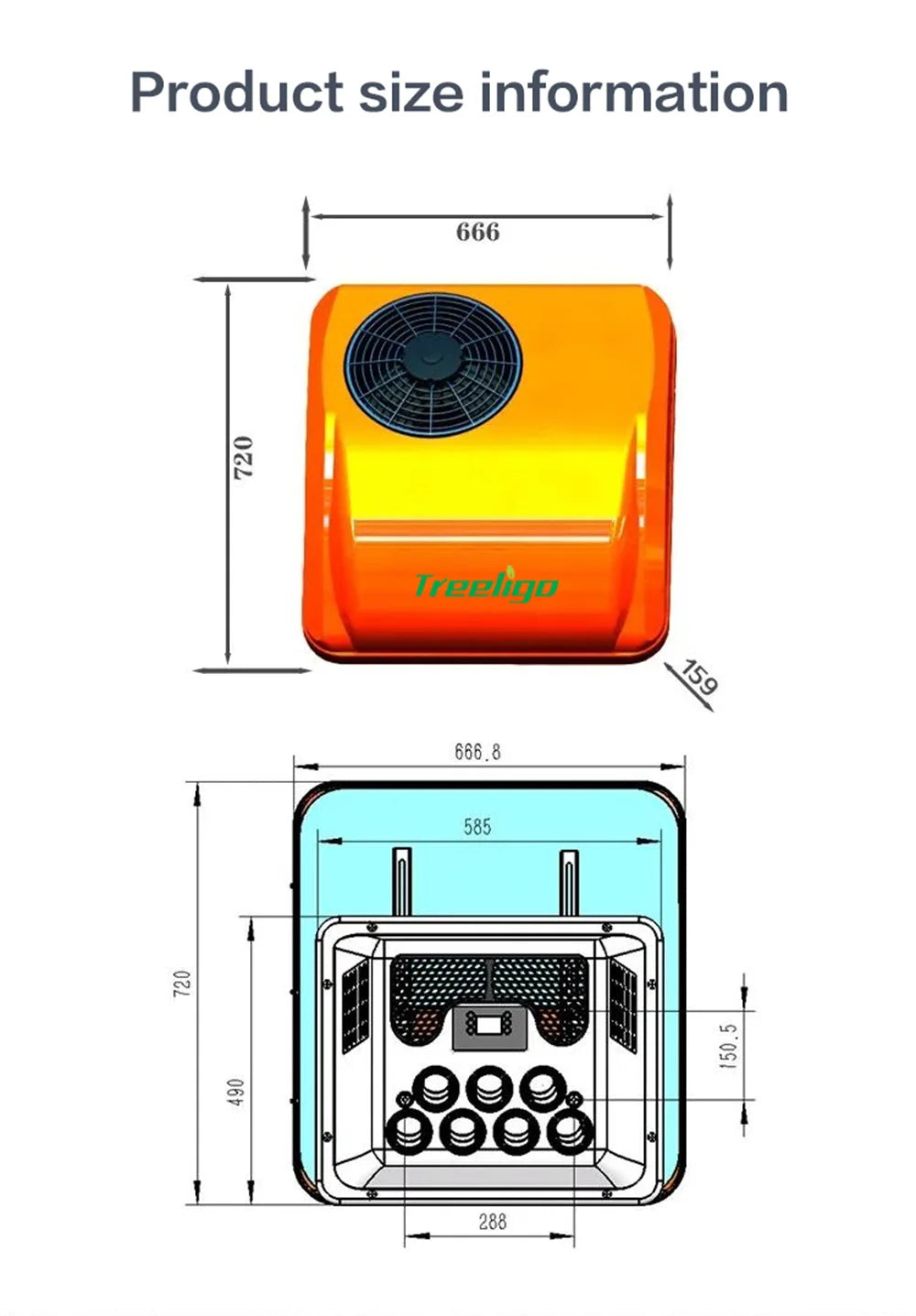

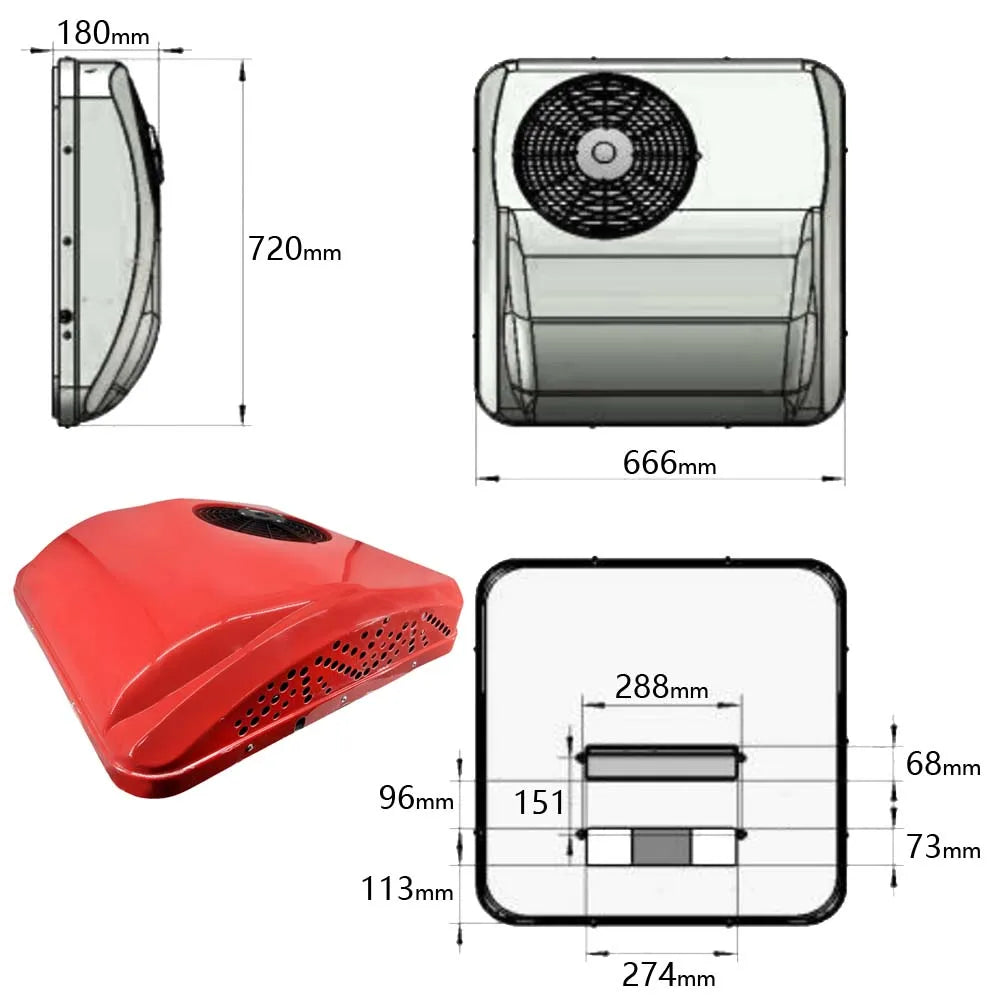

Host Size: 666 *720 * 160 mm
Refrigerant: R134A
Window size: minimum 300mm * 170mm, maximum 590 * 490mm
Environmental requirements：conditions of ambient temperature -15～48℃
System pressure protection switch：
≥2.5MPa to close , 2.45MPa to restore (for reference)
≤ 0.1 8MPa to close , 0.23MPa to restore (for reference)Applicable:

New energy electric air conditioning is suitable for truck , caravan , cranespassenger , excavator , motor home , RV , agricultural machine , etc

Note:

1. When using an electric air conditioner when driving, the battery should be fully charged first, and the generator must be above 75A.
Vehicles with less than 75A must pay attention to the battery storage on the dashboard when driving. Stop using the electric air conditioner as soon as the indication of low battery power appears.
When the generator is running and the voltage is high, the compressor controller will mistakenly think that the battery is fully charged, but in fact the battery has no electricity. When parking, the compressor controller will automatically control, will not cause battery feed. In addition, when the generator is less than 55A, there will be undervoltage, and the air conditioner will be turned on when it stops. (This is because the power in the battery has been used up, and when the engine speed is low, the point cannot keep up, resulting in undervoltage).
2. In order to maximize the performance of the electric air conditioner, it is recommended to install a set of power batteries of 200A or above and a generator of about 70A, which can be used for about 5 hours when it is very hot during the day and used for more than 10 hours at night. Electric air conditioner doesn't have any effect either!
3. The external unit of the electric air conditioner should be installed to avoid the exhaust pipe of the engine, so as not to cause the high temperature of the external unit. The distance between the back panel of the electric air conditioner and the cab should not be less than 10 cm to ensure that the condenser fan has sufficient airintake.

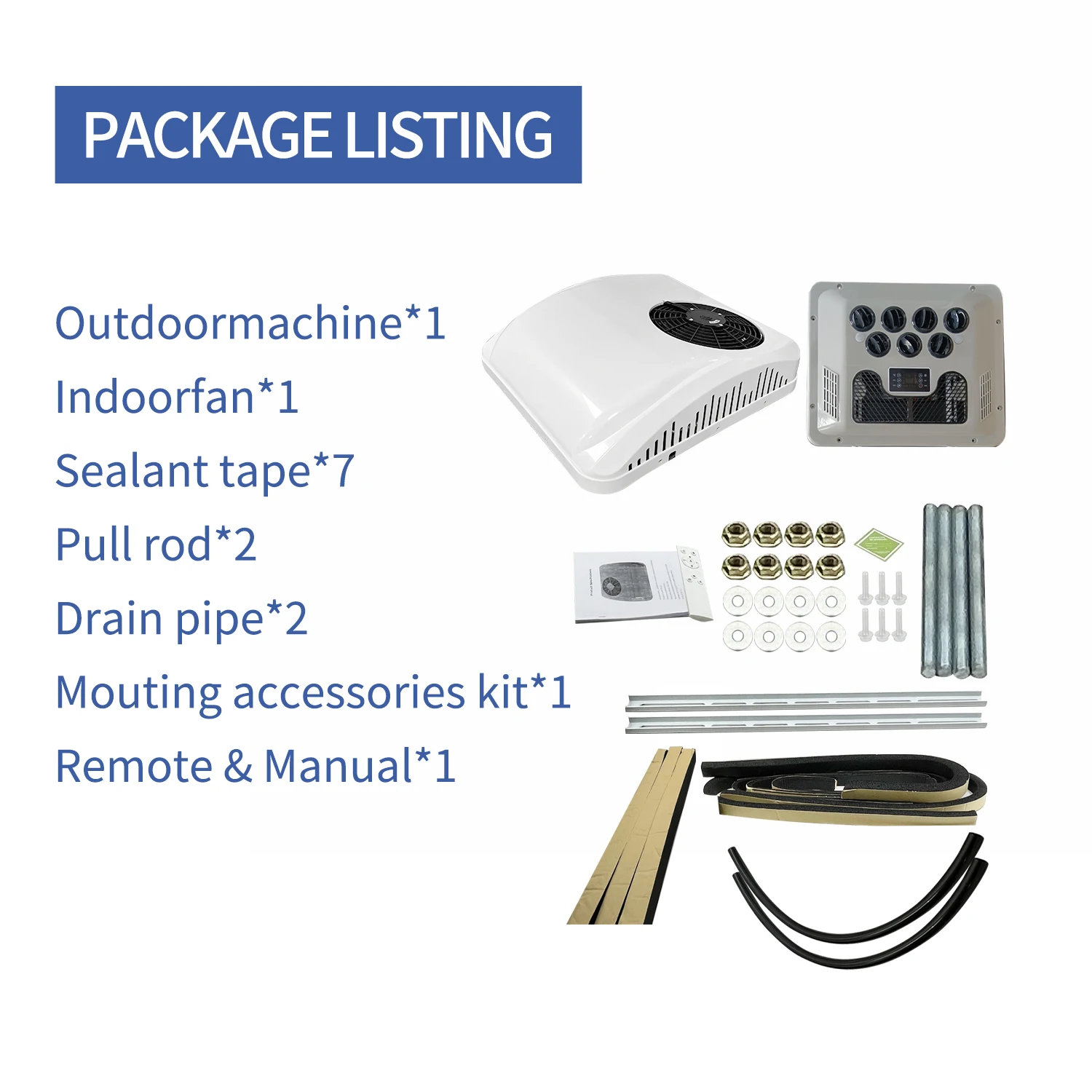

Package List:

1 Set Heating&Cooling A/C
