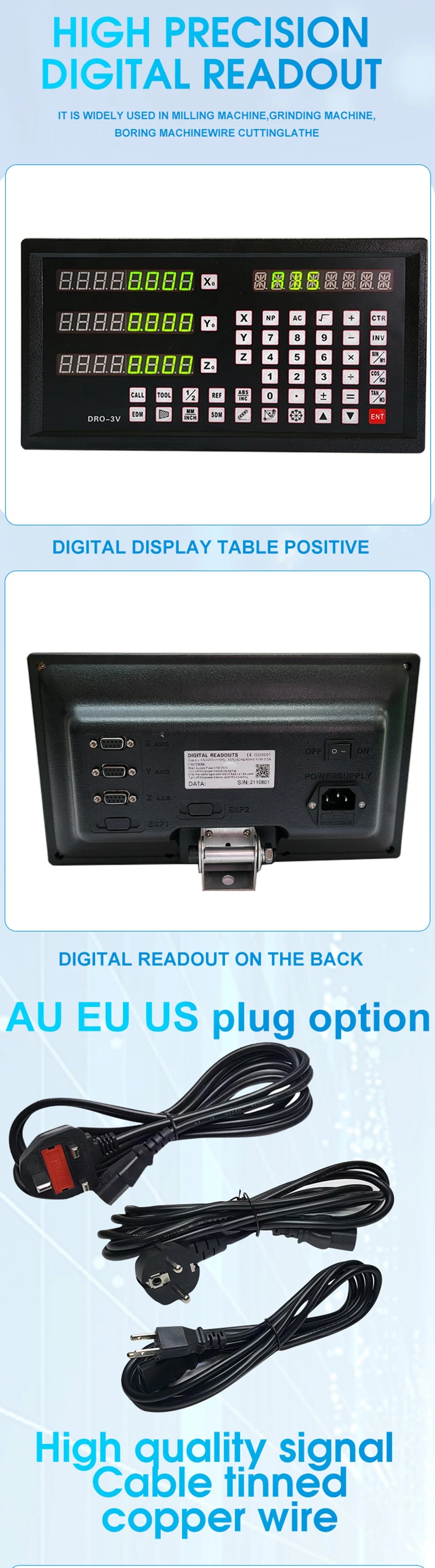

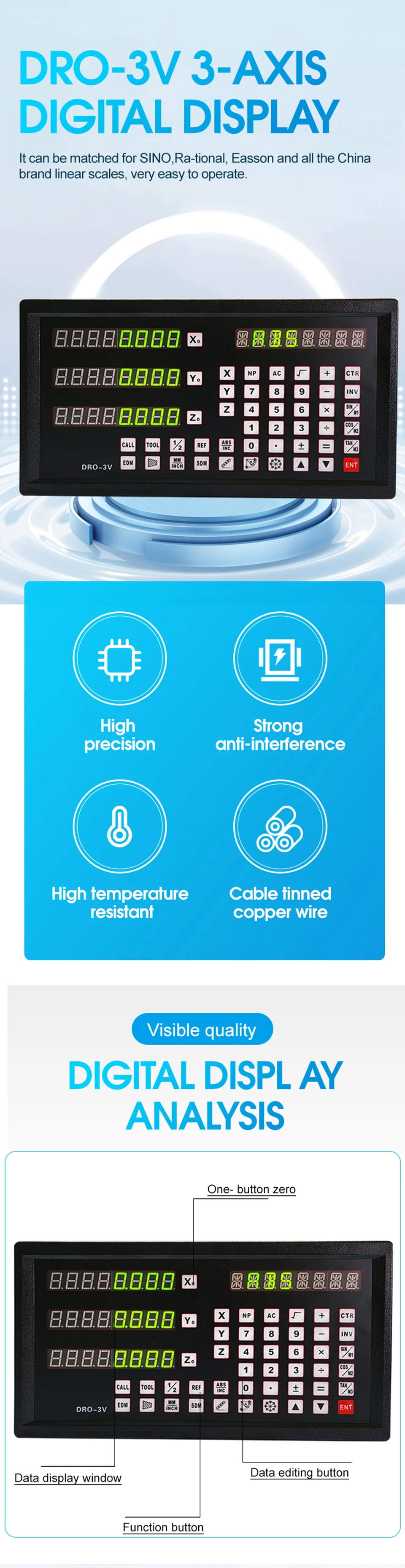

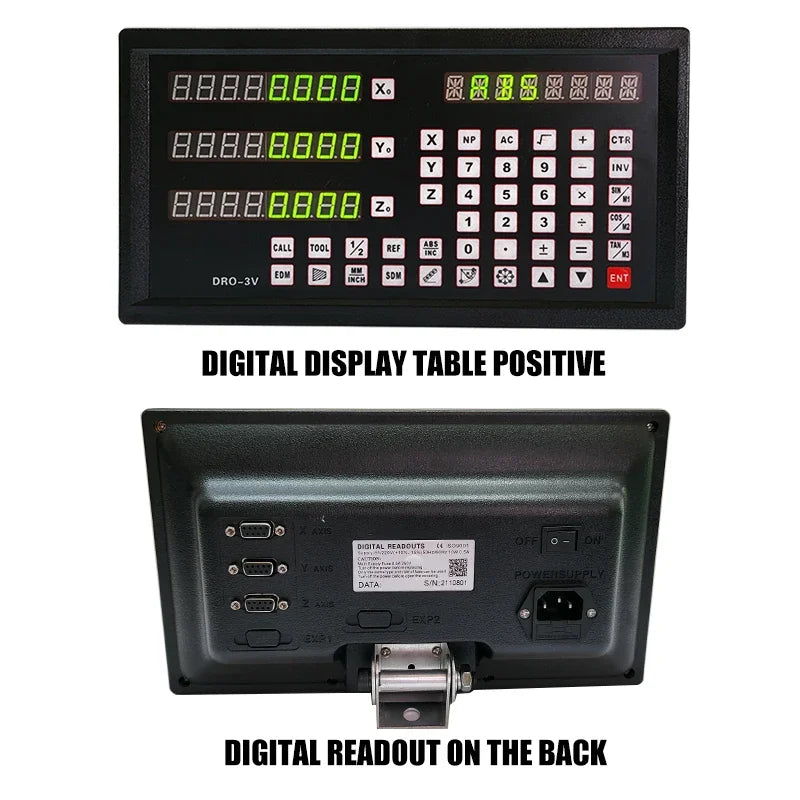

Display de leitura digital DRO-3V de 3 eixos, solução profissional para tornos, fresadoras, mandriladoras e furadeiras de precisão. Compatível com as principais escalas do mercado, incluindo EASSON, SINO, DITRON, SINPO e RATIONAL, garantindo flexibilidade na integração com equipamentos existentes. Oferece múltiplas opções de resolução de leitura (0,1µm, 0,5µm, 1µm, 2µm, 5µm e 10µm) para atender diferentes aplicações de usinagem. Suporta encoder rotativo, expandindo suas capacidades de medição. A alimentação versátil AC90-260V 50/60Hz adapta-se a diferentes instalações, com saída TTL 5VDC e interface DB9 para integração com sistemas DRO chineses. Certificado CE, o equipamento opera em temperatura controlada de 0-50°C com consumo de apenas 20VA. Acompanha tampa de proteção do display, suporte de montagem robusto e manual completo do usuário. Disponível com cabos de alimentação nos padrões AU, EU e US, pronto para instalação em qualquer região.



SPECIFICATIONS

Accessories: display cover, mounting bracket, user manual

Application: Lathe, Mill, Drill, Boring machine etc.

Battery Included: No

Brand Name: SNSNTDRO

Certification: CE

DRO reading resolution: 0.1um,0.5um, 1um, 2um, 5um, 10um

If support rotary encoder: Yes

Input voltage: AC90-260V 50/60HZ

Interface Typ: DB9

Matchable DRO: All China DRO

Matchable scales: EASSON, HXX, SINO, RATIONAL, DITRON, SINPO ETC.

Model Number: DRO-3V

Operating temperature: 0-50°c

Ouput: 5VDC

Output signal: TTL

Power: 20VA

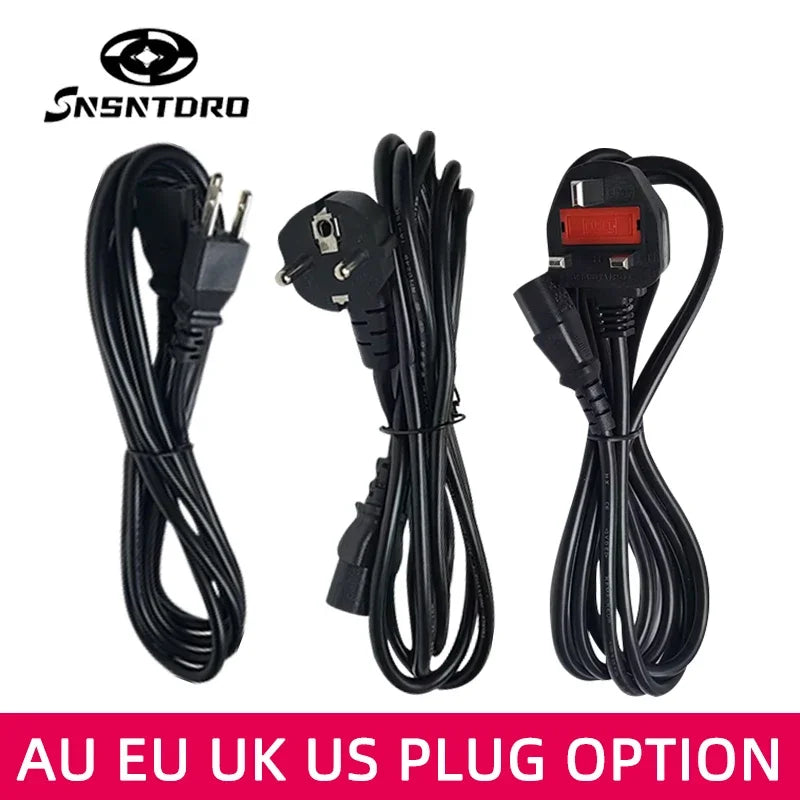

Power cable type: AU EU US UK etc.

Procut name: 3 axis DRO

Warranty: 1 year

Description

DRO-3V 3-Axis Milling Lathe Digital Readout Display AC110V/220V TTL 5V For Optical Grider Ruler Linear Scale Encoder

1. SNSNTDRO DRO-3V widely used for turning lathe, milling, boring, wiring cutting machine and CNC equipment etc.
2. Match all China brand TTL scales

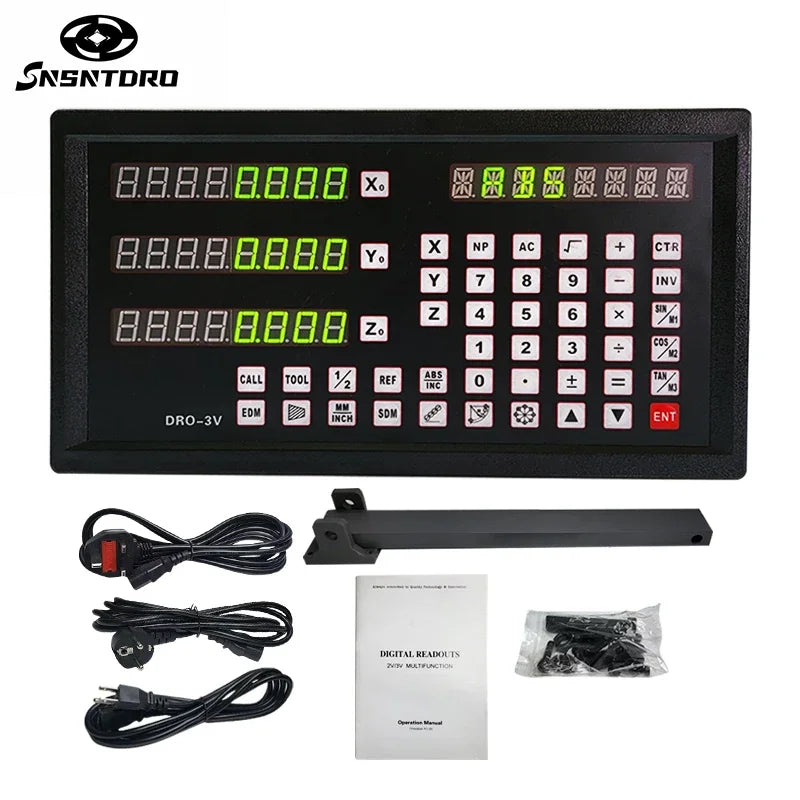

What in package

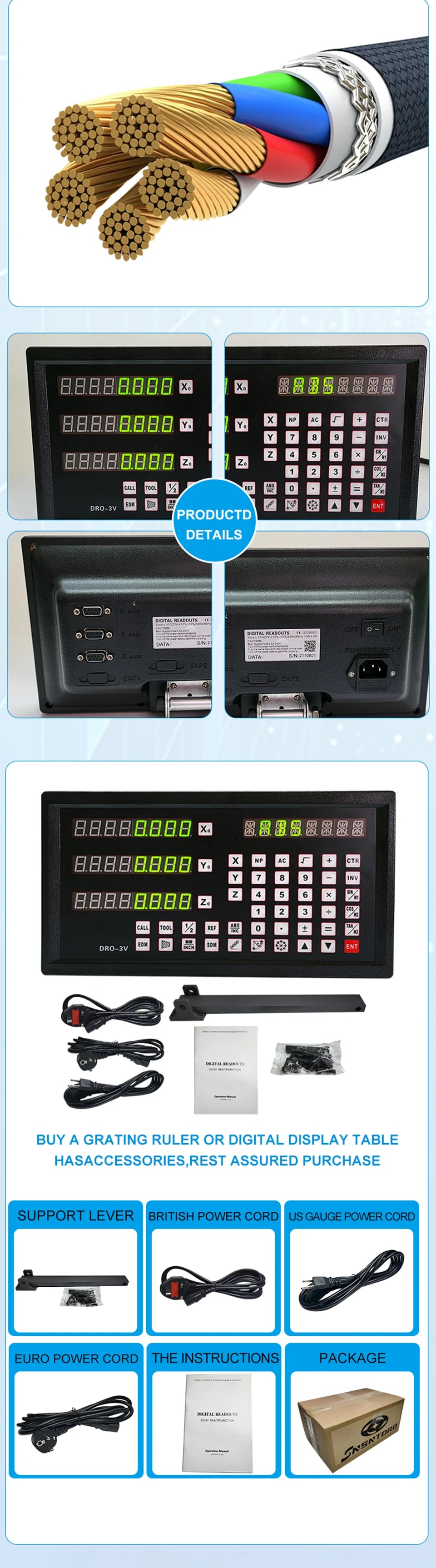

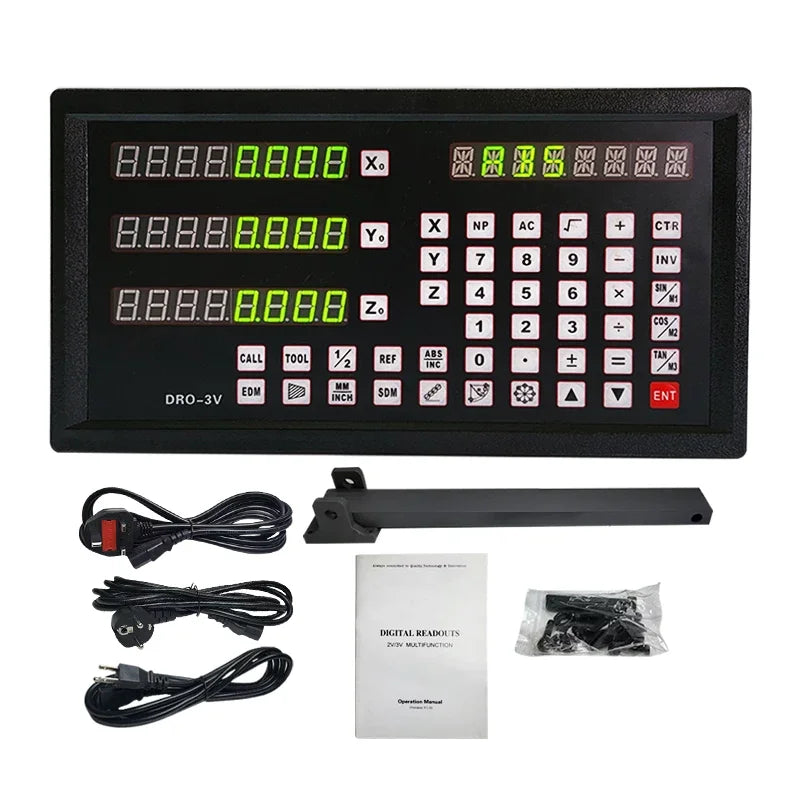

-1 piece DRO-3V display, display cover, mounting bracket, screw bag, user manual

DRO fufures

DRO digital readout parameter
1.Voltage Range: AC 90V~260V/50HZ~60HZ
2.Acceptable Signal: TTL square wave/ EIA-442
3. Plug: DB9
4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um

Advantage
1. Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine.
2. The wide voltage AC90-260V can be widely used in all over the world.
3. We offer US, AU, EU, UK different type plug suite for different countries if need.
4. It can be matched for Sino, Rational, Easson and all the China brand linear scales, very easy to operate.

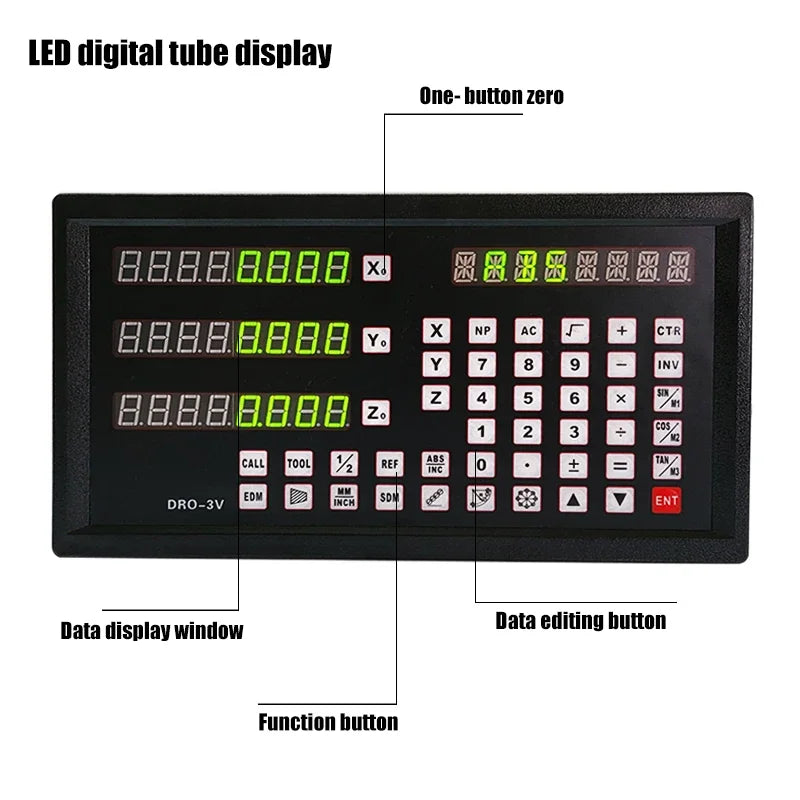

Function

1:zero clearing

2:reset

3:mm/inch mode

4:ABS/INC coordinate conversion

5: 200sets sub datum

6:power off Memory;

7:center of1/2

8:liner error compensation

9:sleepping mode

10:Clear 200 sets Sdm datum;

11:ABS/INC mode

12:calculator

13:drilling of circumference

14:drilling of oblique line

15:machining of inclined plane

16:machining of circular arc

17:lathe function(match)

18:Rectangular lumen gradual processing

19:digital filtering

20:vibration filtering

21: Lathe function

21: Daimater/Radius function

DRO DB9

wiring diagram

Tips

The Package doesn't include scales, please contact seller if scales needed.
